16867
Square Connector for CR200 Battery Terminals
16867
OrderableSquare Connector for CR200 Battery Terminals
Overview

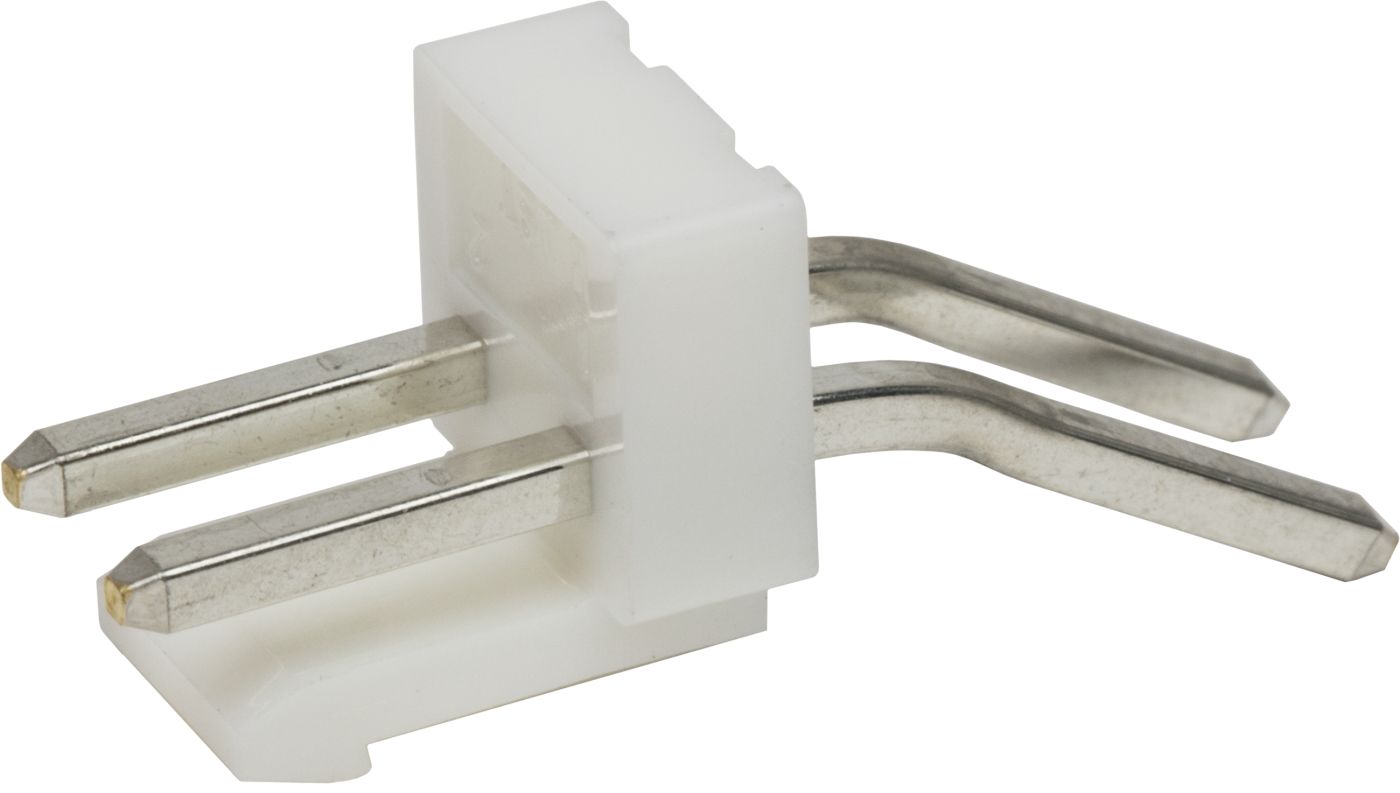

CON Square .156 (1 x 2) Inch Pitch Male 2-Pin Pcb Locking Header Modified For CR200
The 16867 connector allows customers who own a CR200(X)-series datalogger to use a sealed rechargeable battery other than the 17365 or 15988. The connector attaches to the battery terminals on a CR200(X)-series datalogger. A power supply such as a PS100, BP12, or BP24 then plugs into this connector.
Specifications
- Pitch
- 0.396 cm
(0.156 in.)
- Header
- Male 2-pin PCB locking header
- Dimensions
- 2.54 x 1.27 x 1.27 cm
(1.0 x 0.5 x 0.5 in.)
- Weight
- 9.07 g
(0.02 lb)
