100 Ohm Shunt Resistor Assembly
7977
Orderable100 Ohm Shunt Resistor Assembly
Overview

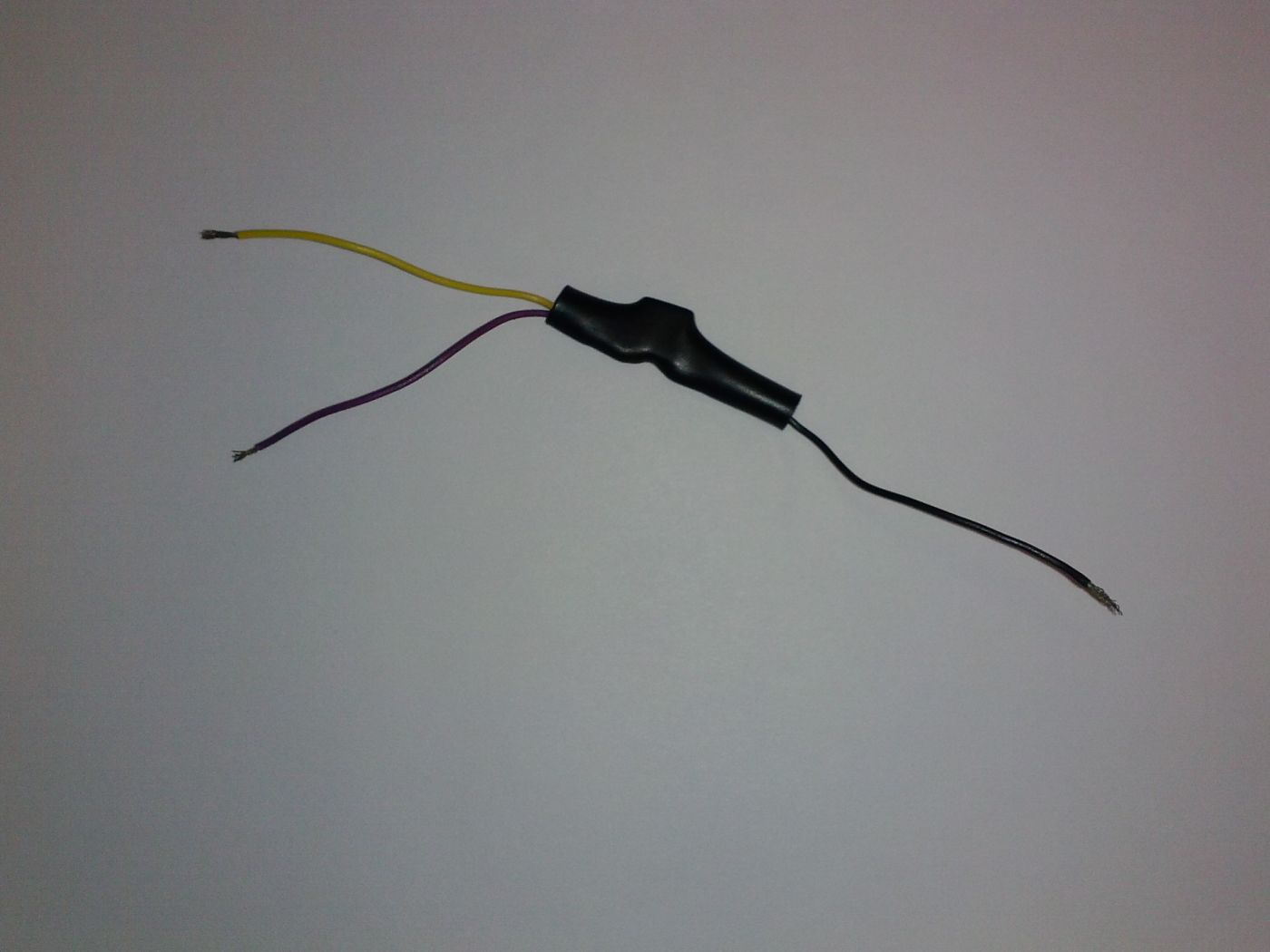

ACC 100 Ohm Shunt Resistor Assembly, 8cm (3.25 Inch) Cable for CS400, CS405, or CS440
This shunt resistor converts the probe's 4 to 20 mA signal to a millivolt signal that can be measured by our data loggers. The 7977 is the only shunt resistor option that is compatible with the CR200(X)-series dataloggers. The 7977 has a 3.25 in. cable.
Technical Description
Wiring
Yellow --- Sensor Output (+)
Black --- Sensor Ground (-)
Purple --- Logger SE input (+)
Specifications
- Cable Length
- 8.26 cm
(3.25 in.)
- Dimensions
- 17.78 x 1.27 x 1.27 cm
(7.0 x 0.5 x 0.5 in.)
- Weight
- 4.54 g
(0.01 lb)
