CELL205

Campbell Scientific’s cellular modules provide easy integration and eliminate costly maintenance site visits.

The CELL200 series are 4G LTE cellular devices that provide IP cellular connectivity to many cellular networks, including Verizon, AT&T, T-Mobile USA, Rogers, Bell, Telstra, and Telus. The networking and carrier used by the CELL200 series is determined by the model used and the SIM card inserted into the device.

The CELL205 has very low power consumption when compared to other cellular modems: 14 mA at idle, 39 mA when active, and 300 µA when in low power mode.

When coupled with Campbell Scientific data services, these devices are ready for you to use out of the box. There is no need for you to work with cellular carriers for provisioning and experience the accompanying hassle.

The CELL205 is part of the CELL200 series of modems that includes:

• CELL205 for use with AT&T, T-Mobile, Rogers, Telus, and Bell
• CELL210 for use with Verizon
• CELL215 for use in EMEA countries
• CELL220 for use in Australia and New Zealand
• CELL225 for use in Japan

Note: The CELL205 does not ship with a SIM card unless the cellular modem was provisioned with/for Campbell Scientific cellular data services; the SIM card is provided by the carrier when signing up for service. For more information, visit the Cellular Data Services page.

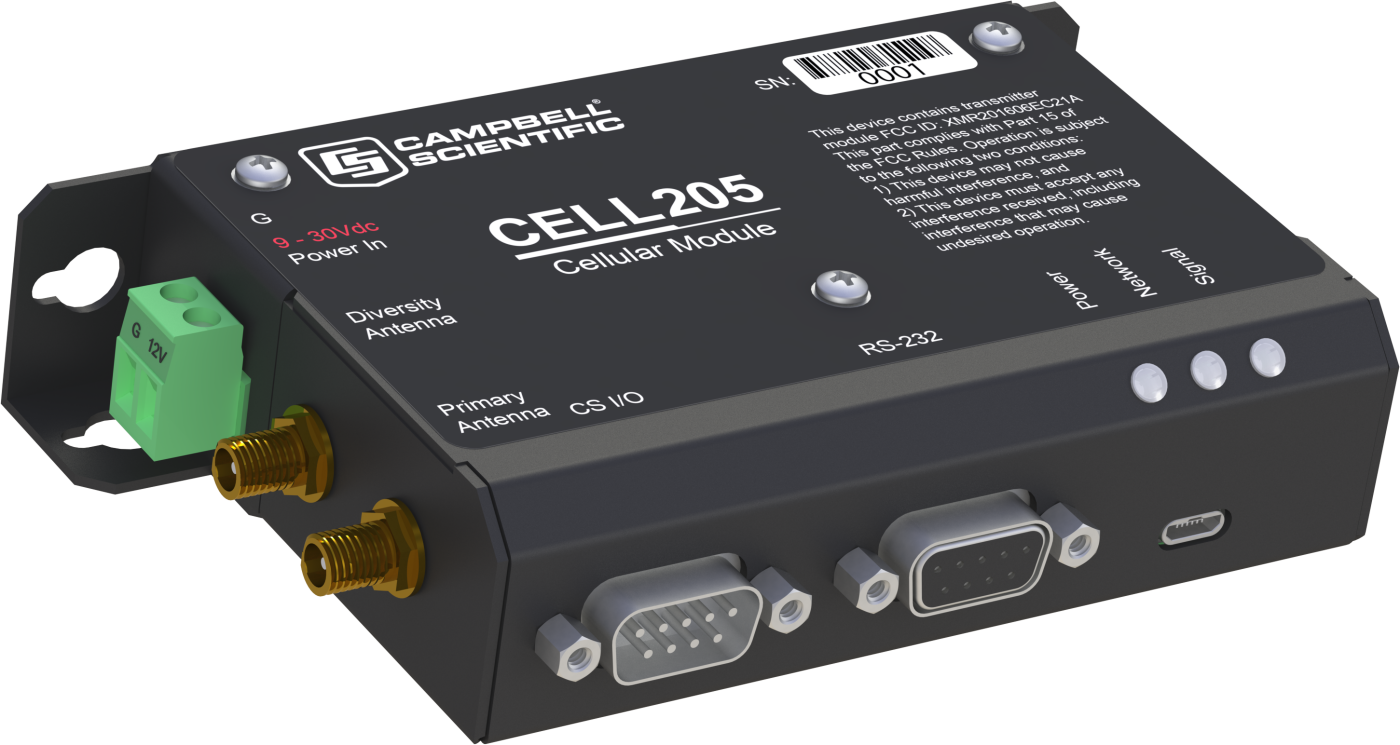

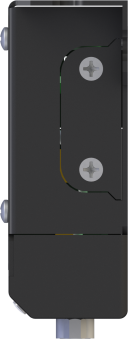

The CELL205 is an industrial 4G LTE cellular module. It requires at least one micro-SIM 3FF card (for six position/contacts interface) supplied by Campbell Scientific or your cellular carrier and a suitable 12 or 24 Vdc nominal power source. The CELL205 has an RS-232 serial port and a CS I/O port that can be used for serial server, serial client, and PPP host services. These ports are commonly connected to a data logger RS-232 serial or CS I/O port. The CELL205 has two antenna connectors to be used for primary and diversity antennas, although the unit can operate with only the primary cellular antenna connected.

Internet Connectivity

The CELL205 provides Internet connectivity to any Campbell Scientific data logger located within range of a compatible cellular network. Armed with Internet connectivity, a data logger can remotely connect to Campbell Scientific software on a PC, mobile device, and the cloud. The CELL205 can also enable many data loggers to communicate using other Internet protocols, such as Modbus, DNP3, email, and web (HTTP).

Device Intelligence

The CELL205 provides highly reliable connectivity and remote device management independent of the device it is connected to. The numerous embedded services include IP serial server and client.

Establishing Cellular Service

Campbell Scientific offers low-cost cellular data service plans for the CELL205. The Konect routing service is included to assure a secure connection with Campbell Scientific data logger support software.

The CELL205 can also be configured directly from the data logger when used in PPP mode (default mode) using the Device Configuration Utility or CRBasic instructions. This provides a modular cellular solution for complete integration.

Data Logger Connection

Data loggers can be connected in a variety of ways to suit the needs of the application. Common methods include the use of serial or CS I/O cables.

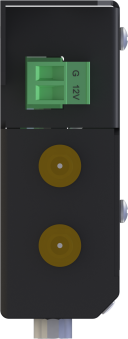

Powering the CELL205

Compared to many other industrial cellular modules, the CELL205 has extremely low power consumption. The average current consumption at 12 Vdc is approximately 14 mA when idle, depending on its configuration. Additionally, the CELL205 can be turned on and off easily using a data logger SW12V port or the IPNetPower() instructions (PPP mode for the CR1000X, CR300, and CR6 only).

Antennas

Campbell Scientific offers three antennas for the CELL205. Our 4G/3G/2G 0 dBd cellular dipole whip antenna (pn 32256) connects directly to the CELL205 (no cable required) and can transmit short distances. Our higher gain omnidirectional (pn 18285) and Yagi (pn 31128) antennas require a cable to connect them to the CELL205. The COAXSMA cable connects the antennas directly to the CELL205 cellular antenna connector. The COAXNTN-L cable and a surge protector (pn 31317) are used when the CELL205 is susceptible to lightning or electrostatic buildup or for long cable runs.

Sample Programs

• View this sample program for how to use some of the terminal commands with CELL2XX modules.
• To use the SetSettings functionality with the CR300, CR310, CR6, and CR1000X dataloggers, view this sample program.
