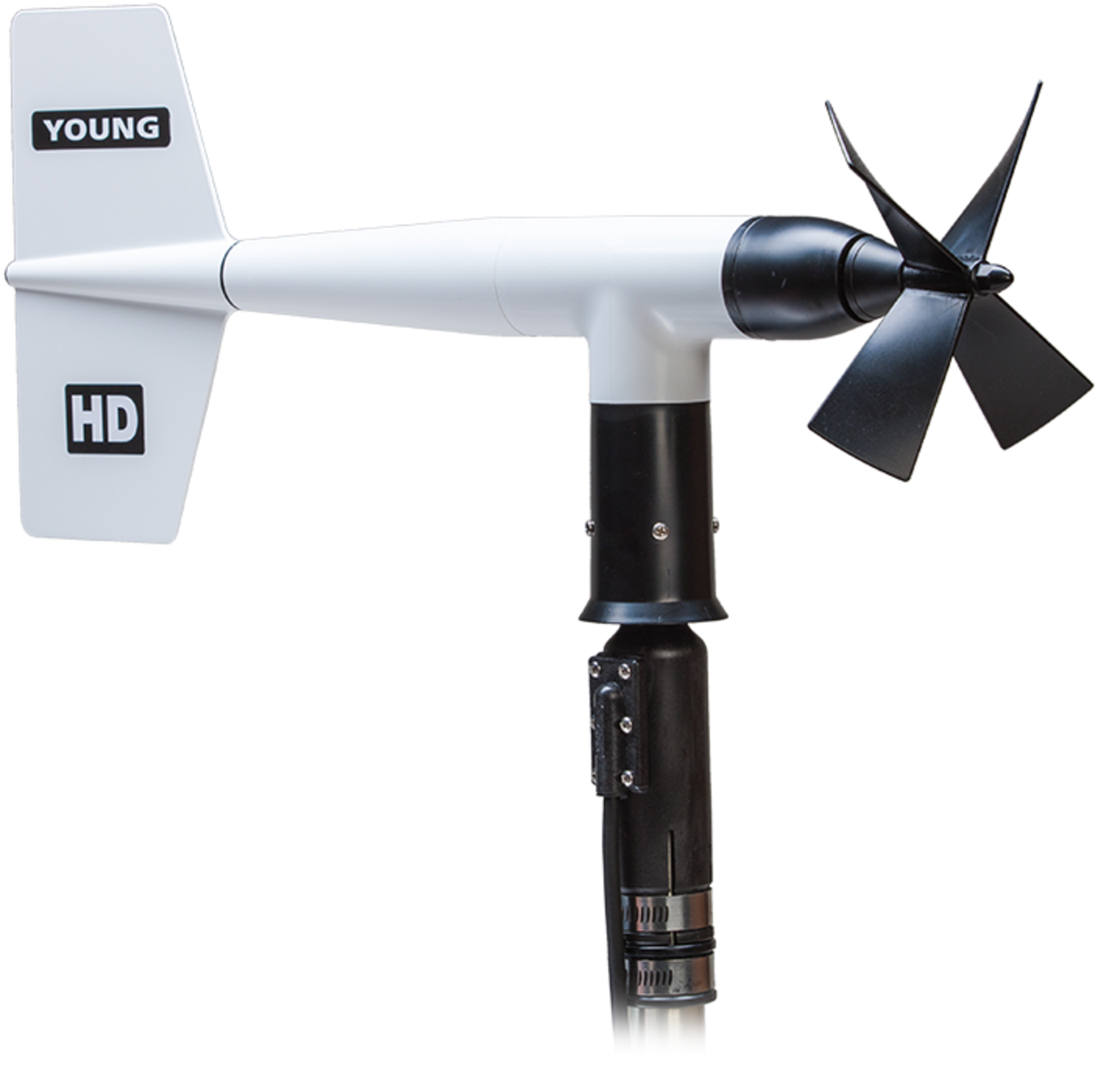

The 05108-HD is a lightweight, robust instrument that measures wind speed and direction, designed specifically for your applications where sensor access is limited and conditions are rough. Manufactured by R. M. Young, this wind monitor is cabled for use with Campbell Scientific data loggers.

The 05108 Wind Monitor-HD is made from rigid UV-stabilized thermoplastic with stainless steel and anodized aluminum fittings. The thermoplastic material resists corrosion from sea air environments and atmospheric pollutants.

To make it more durable, the HD uses extremely long-wearing, oversized ceramic bearings to increase service life many times longer than standard stainless-steel bearings. The wind monitor's ceramic bearings are resistant to corrosion in environments that are hostile to steel bearings, making the 05108 suitable for marine applications. The HD also has an oversized propeller shaft, high-pitch propeller, locking propeller nut, and sealed, heavy-duty cable pigtail instead of the standard junction box—all features that further enhance the long-term reliability of the sensor.

The 05108 measures wind speed with a helicoid-shaped, four-blade propeller. Rotation of the propeller produces an ac sine wave that has a frequency directly proportional to wind speed. The ac signal is induced in a transducer coil by a six-pole magnet mounted on the propeller shaft. The coil resides on the non-rotating central portion of the main mounting assembly, eliminating the need for slip rings and brushes.

Wind direction is sensed by the orientation of the fuselage-shaped sensor body, which is connected to an internal potentiometer. The data logger applies a known precision excitation voltage to the potentiometer element. The output is an analog voltage signal directly proportional to the azimuth angle.
