CM221
Right-Angle Mounting Kit
CM221
OrderableRight-Angle Mounting Kit
Mount a sensor to a crossarm using a vertically mounted pipe.
Overview
CM221 Right Angle Mounting Kit

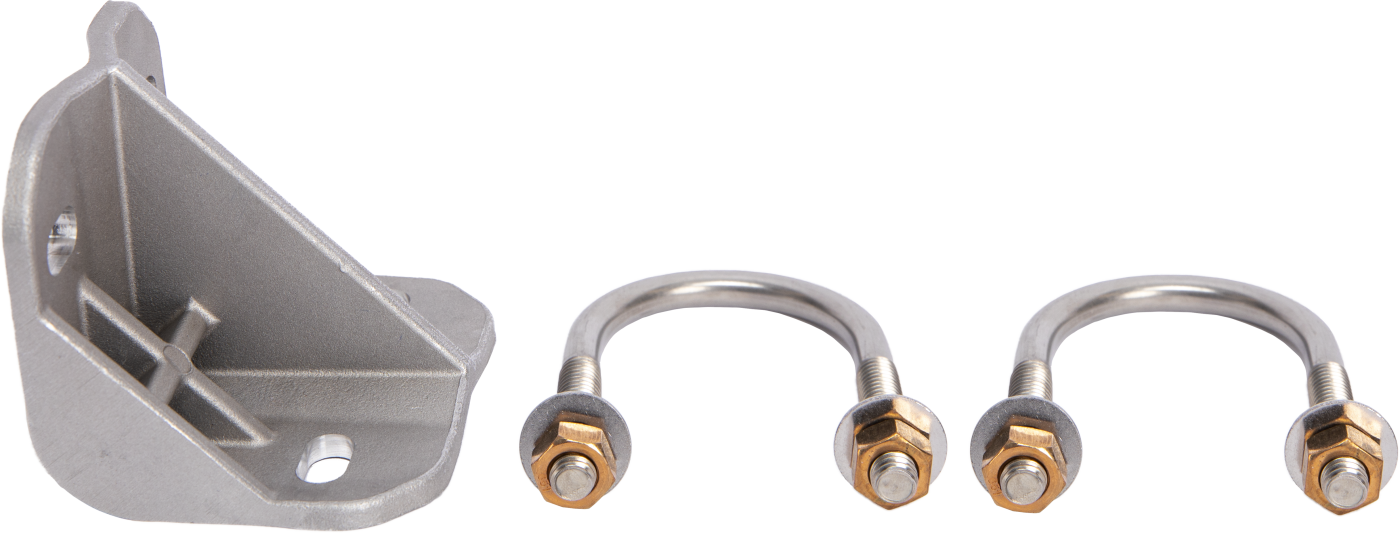

The CM221 mounts a pipe or tube at 90° to another pipe or tube. It is typically used to attach a sensor with a vertical pipe (including most wind sensors) to a crossarm. The cast aluminum, right-angle mounting bracket has 3.8 cm (1.5 in.) U-bolts and hardware and will accommodate tubing with a 1- to 1.5-in. outer diameter. (For more information, refer to the Compatibility section below.)
If your application requires the ability to adjust or level your sensor, consider using the CM230 Adjustable Inclination Mounting Kit instead.
Key Advantages
Attach a Sensor with a Vertical Pipe to a Crossarm
Specifications
- U-bolt and Washer Material
- 304 stainless steel
- Bracket Material
- Cast aluminum
- Dimensions
- 7.6 x 7.6 x 9.1 cm
(3.0 x 3.0 x 3.6 in.)
- Weight
- 340.19 g
(0.75 lb)
