OrderableSensor Mounting Kit for Top of Tripod Mast
Overview

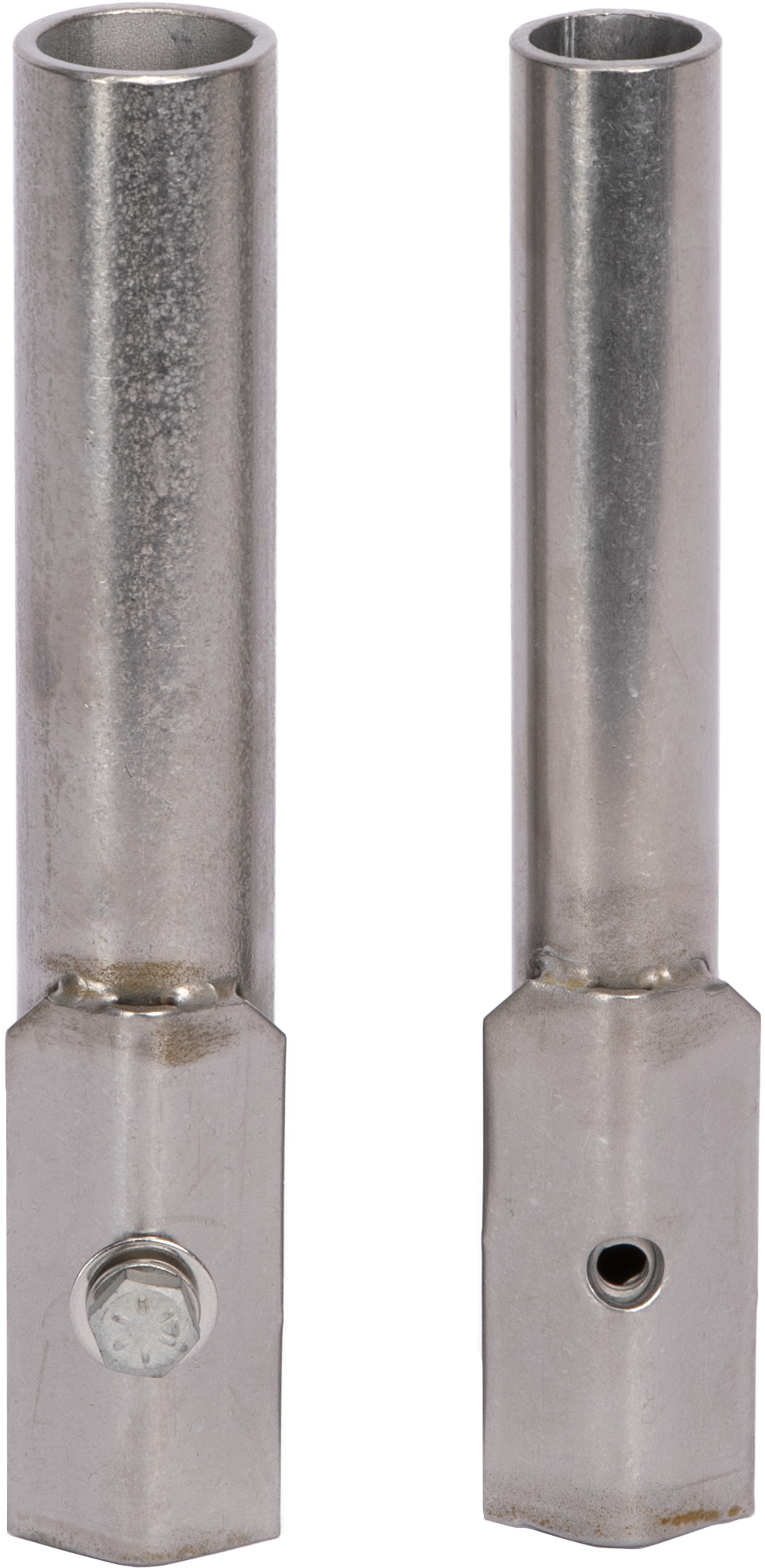

The CM216 provides both a 3/4-inch IPS (1.05-inch OD) and a 1-inch IPS (1.32-inch OD) mounting pipe that extends 4 inches above the mast. They are pipes with an adapter that bolts to the inside of the top of a CM106B tripod; a stainless-steel CM110, CM115, or CM120 tripod; or a CM300, CM305, or CM310 mounting pole. A sensor with a 1.05- or 1.32-inch OD fitting (typically a wind sensor or the R. M. Young rain/snow gage) can then be mounted on this pipe.
Key Advantages
Technical Description
Note: The CM216 is not compatible with the aluminum versions of the CM110-series tripods, which were shipped prior to March 2007. The CM215 mount is intended for the aluminum tripods.
Specifications
- Reach
- Extends 10 cm
(4 in.) above the mast
- Outer Diameter
- 2.67 to 3.34 cm
(1.05 to 1.315 in.)
- Pipe Size
- 1.9 to 2.54 cm
(0.75 to 1 in.) IPS
- Dimensions
- 20.32 x 7.62 x 5.08 cm
(8 x 3 x 2 in.)
- Weight
- 952.54 g
(2.1 lb)
