OrderableConfigurable4-Channel Low-Level AC-Conversion Module
Pricing
- Model:
- LLAC4
- Item Number:
- 16710
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview

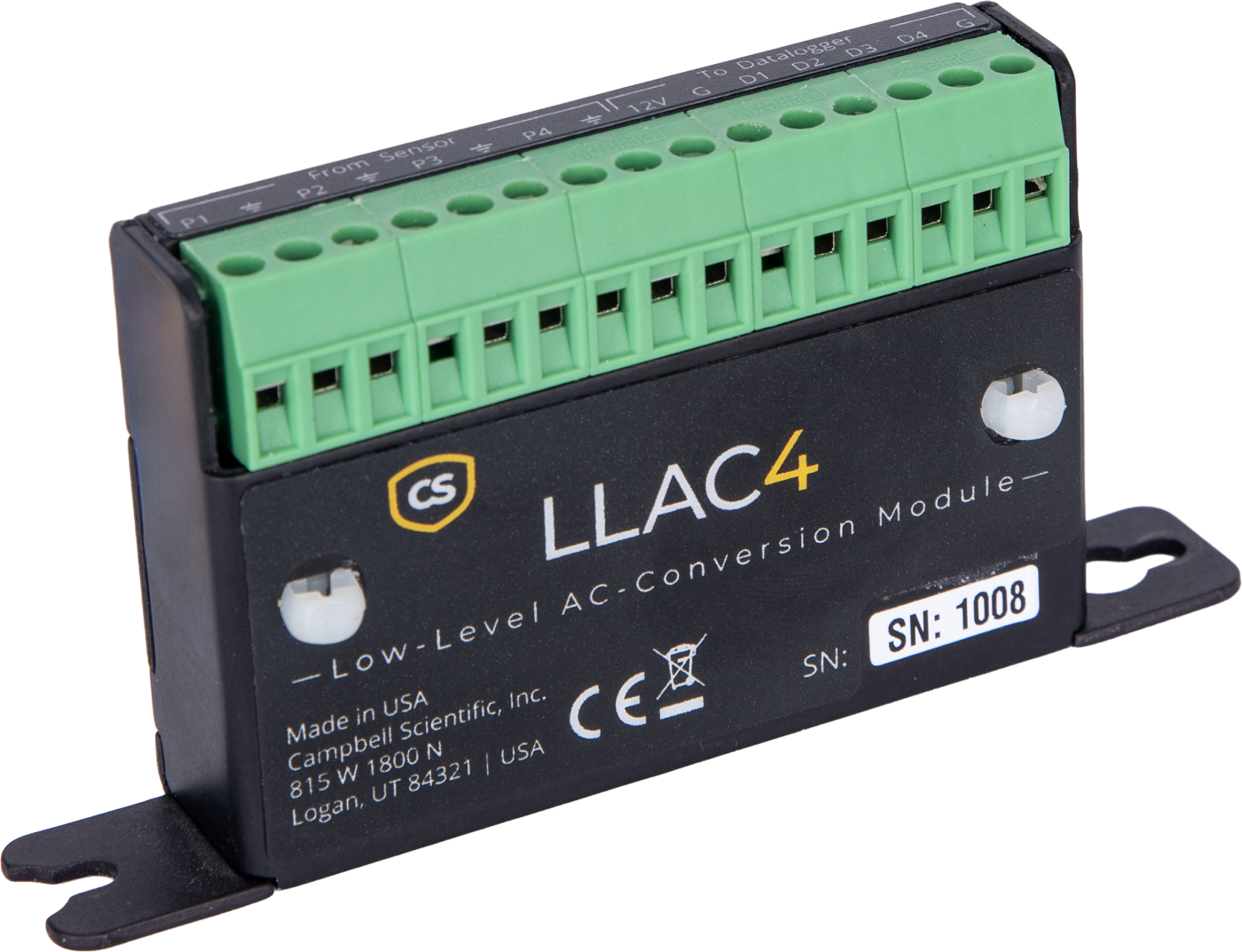

The LLAC4 is a small peripheral that you can use to increase the number of low-level ac signals that your data logger can monitor. The LLAC4 is often used to measure up to four anemometers, and it is especially useful for wind profiling applications.
Key Advantages
Increases number of signals data logger can monitor
Technical Description
The LLAC4 enables four data logger control ports to emulate pulse-counting channels by converting the low-level ac signals to logic levels read by the control ports. To use the LLAC4, the data logger control ports must accept high frequency pulses. The LLAC4 typically measures anemometers but can measure other sensors that output pulse counting signals.
Minimum AC Input Voltage versus Output Square Wave Frequency
| Input Sine Wave (mV RMS) |
Output Range (Hz) |
| 20 | 1.0 to 20 |
| 200 | 0.5 to 200 |
| 2000 | 0.3 to 10,000 |
| 5000 | 0.3 to 20,000 |
Benefits
- Ideal for applications that require high numbers of pulse channels, but fewer control ports, such as in wind prospecting
Specifications
- Function
- Increases the number of low-level ac signals that a data logger can monitor.
- Operational Temperature
- -40° to +85°C
- Number of Channels
- 4
- Power
- 0.1 mA
(@ 12 Vdc)
- Input Hysteresis
- 16 mV
(@ 1 Hz)
- AC Coupling Removal of DC Offset
- ≤ ±0.5 V
- Maximum AC Input Voltage
- ±20 V
- Cable Length
- 0.6 m
(2 ft)
- Dimensions
- 5.4 x 8.0 x 2.5 cm
(2.1 x 3.1 x 1.0 in.) without base mounting flanges
- Dimensions
- 5.4 x 11.2 x 2.5 cm
(2.1 x 4.5 x 1.0 in.) with base mounting flanges
- Weight
- 92 g
(3.2 oz)
