Wind Monitor

05103

OrderableConfigurable

Wind Monitor

Best for general applications.

Pricing

Configuration

w/3m (10ft) per Sensor -PF w/Ferrules on Wires (Ships As 45071-3m & 3659)-3m
05103-L RM Young Wind Monitor w/5m per Sensor -PF w/ Ferrules on Wires05103-5m
w/10m (33ft) per Sensor -PF w/Ferrules on Wires-10m
05103-L RM Young Wind Monitor w/15m per Sensor -PF w/ Ferrules on Wires05103-15m

Qty

Select a configuration to add to your quote

Model:: 05103
Item Number:: 45012
Warranty:: 1 year
Lead time:: 14 days
Compliance:: requires CM220 or 17953

Overview

RM Young Wind Monitor (-50 to +50C)

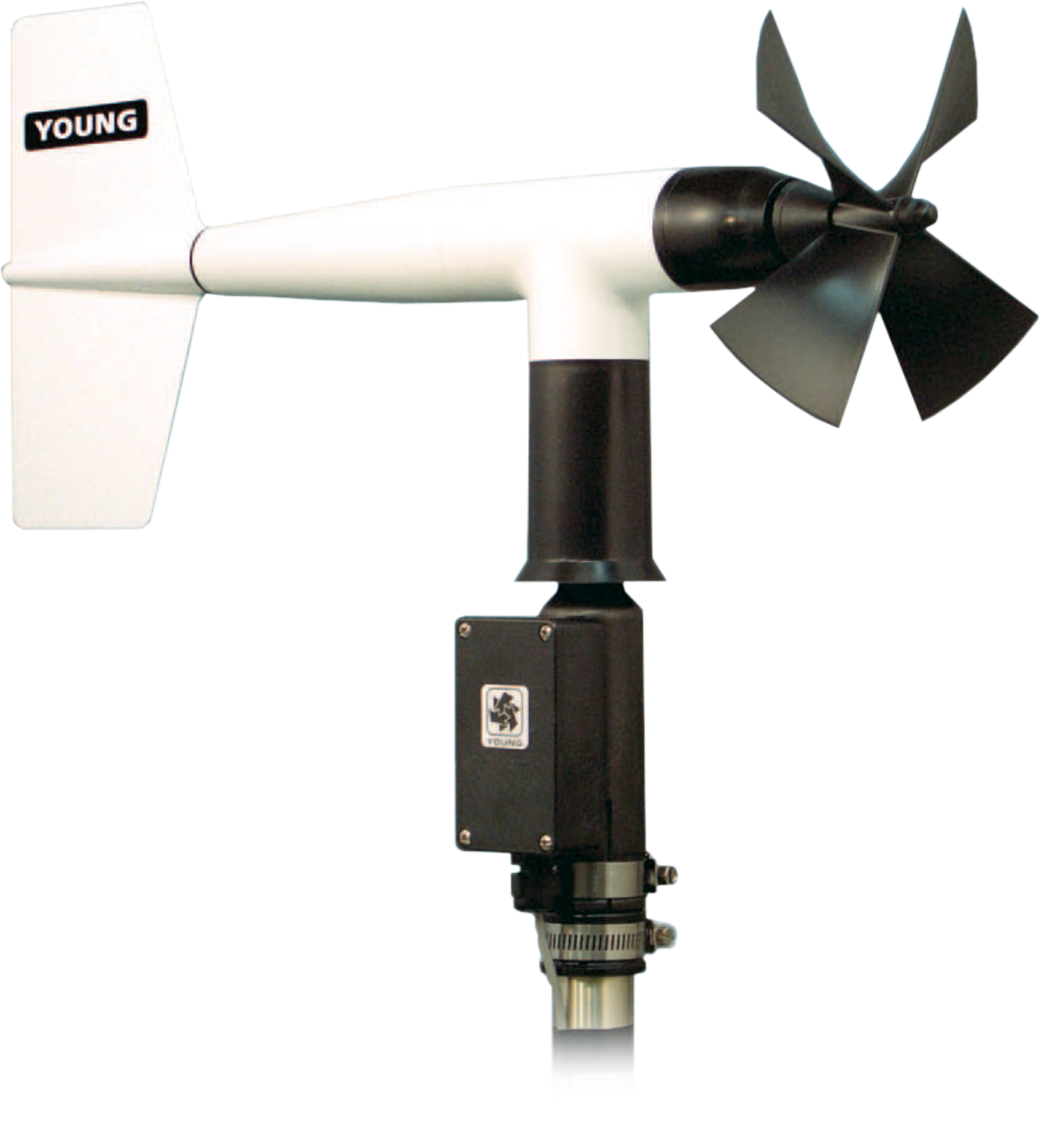

The 05103 Wind Monitor is a lightweight, sturdy instrument for measuring wind speed and direction in your harsh environments. Its simplicity and corrosion-resistant construction make it ideal for a wide range of wind measuring applications. Manufactured by R. M. Young, this wind monitor is cabled for use with your Campbell Scientific data logger.

Key Advantages

Reliable, Accurate Wind Measurements
Compatible with most Campbell Scientific data loggers

Technical Description

The 05103 Wind Monitor is made out of rigid UV-stabilized thermoplastic with stainless steel and anodized aluminum fittings. The thermoplastic material resists corrosion from sea air environments and atmospheric pollutants. It uses stainless-steel precision-grade ball bearings for the propeller shaft and vertical shaft bearings.

The 05103 measures wind speed with a helicoid-shaped, four-blade propeller. Rotation of the propeller produces an ac sine wave that has a frequency directly proportional to wind speed. The ac signal is induced in a transducer coil by a six-pole magnet mounted on the propeller shaft. The coil resides on the non-rotating central portion of the main mounting assembly, eliminating the need for slip rings and brushes.

Wind direction is sensed by the orientation of the fuselage-shaped sensor body, which is connected to an internal potentiometer. The data logger applies a known precision excitation voltage to the potentiometer element. The output is an analog voltage signal directly proportional to the azimuth angle.

Benefits

Rugged enough for harsh environments
Compatible with the CWS900-series interfaces, allowing it to be used in a wireless sensor network
Constructed with thermoplastic material that resists corrosion from sea-air environments and atmospheric pollutants
Uses stainless-steel, precision-grade ball bearings for the propeller shaft and vertical shaft bearings
Ideal for wind profile studies
Compatible with the LLAC4 4-channel Low-Level AC-Conversion Module, which increases the number of anemometers one data logger can measure

Specifications

Applications: Harsh
(Rain with light snow. Little or no riming. Some blowing sand. No salt spray.)
Sensor: Helicoid-shaped, 4-blade propeller and fuselage-shaped sensor body
Measurement Description: Wind speed and direction
Operating Temperature Range: -50° to +50°C
(assuming non-riming conditions)
Mounting Pipe Description: 34 mm (1.34 in.) OD
Mounting Pipe Description: Standard 1.0-in. IPS schedule 40
Compliance with Standards: 2011/65/EU RoHS Directive
Compliance with Standards: 2015/863/EU RoHS Phthalates Amendment
Housing Diameter: 5 cm
(2.0 in.)
Propeller Diameter: 18 cm
(7.1 in.)
Height: 37 cm
(14.6 in.)
Length: 55 cm
(21.7 in.)
Weight: 1.5 kg
(3.2 lb)

Wind Speed

Range: 0 to 100 m/s
(0 to 224 mph)
Accuracy: ±0.3 m/s (±0.6 mph) or 1% of reading
Starting Threshold: 1.0 m/s
(2.2 mph)
Distance Constant: 2.7 m
(8.9 ft) 63% recovery
Output: ac voltage (three pulses per revolution)

90 Hz (1800 rpm) = 8.8 m/s (19.7 mph)
Resolution: (0.0980 m s^-1) / (scan rate in seconds) or (0.2192 mph) / (scan rate in seconds)
