014A-L

3-Cup Anemometer
Hoa Pham

014A-L

RetiredConfigurable

3-Cup Anemometer

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
014A-L
Item Number:
2006
Warranty:
1 year
Lead time:
14 days
Compliance:
requires CM220 or 1049

Overview

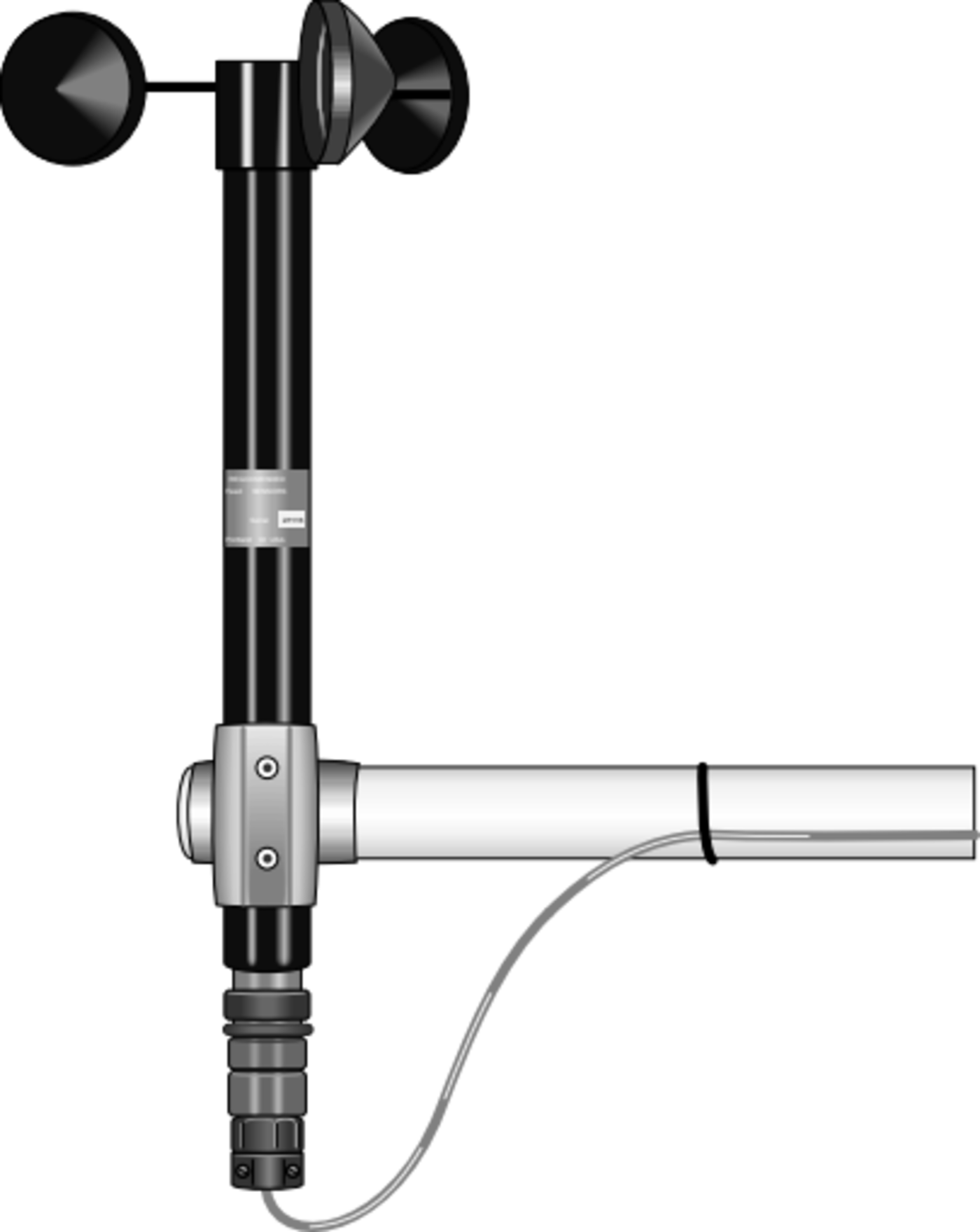

014A-L Met One Anemometer

The 014A, manufactured by Met One, is a three-cup anemometer that monitors wind speed for the range of 0 to 45 m/s with a threshold of 0.45 m/s. You connect the 014A directly to a Campbell Scientific data logger, which measures the anemometer's pulse signal and converts the signal to engineering units (mph, m/s, knots).

Key Advantages

Reliable, Accurate Wind Speed
Compatible with all Campbell Scientific data loggers

Technical Description

The 014A is constructed of corrosion-resistant, stainless-steel and anodized aluminum. It's three-cup anemometer assembly contains a sealed magnetic reed switch. Rotation of the cupwheel produces a pulse that is directly proportional to wind speed.

Benefits

  • Ideal for applications that do not require wind direction measurements
  • Sealed magnetic reed switch
  • Designed for continuous, long-term, unattended operation in adverse conditions
  • Standard aluminum cup assembly has a distance constant of less than 4.5 m
  • For greater sensitivity, an optional LEXAN cup assembly has a distance constant of less than 1.5 m

Specifications

Sensor
3-cup anemometer
Measurement Description
Wind speed
Range
0 to 45 m/s

(0 to 100 mph)

Starting Threshold
0.45 m/s

(1.0 mph)

Accuracy
0.11 m/s (0.25 mph) or 1.5%
Contact Rating
10 mA

(maximum)

Operating Temperature Range
-50° to +70°C
Distance Constant
< 4.5 m

(15 ft) standard

Distance Constant
< 1.5 m

(5 ft) optional fast response

Cable Description
Quick-connect connector with vinyl jacketed, shielded cable
Radius
10.4 cm

(4.1 in.)

Height
34.8 cm

(13.7 in.)

Sensor Weight
318 g

(11 oz)

Cable Weight
140 g

(5 oz) per 3 m (10 ft) length
