1049

The 1049 connects a 1 in. pipe to a 0.75 in. pipe. The 1049 is typically used to attach a sensor with a 0.75 in. pipe mount to a CM202, CM204, or CM206 crossarm. This usage provides functionality similar to the CM220 right-angle mounting bracket.

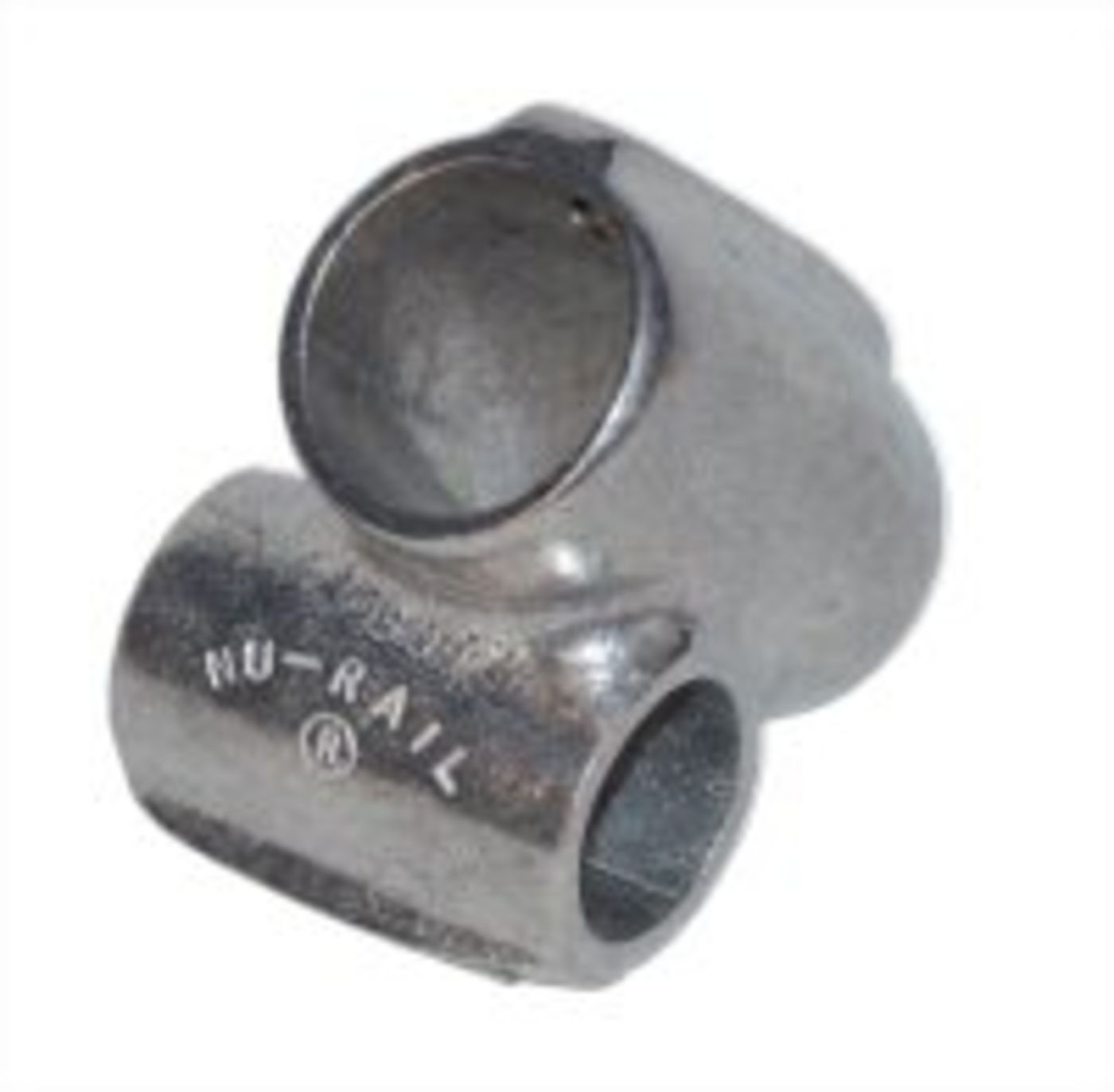

The 1049 NU-RAIL^® Crossover Fitting connects a vertical 3/4" IPS pipe to a horizontal 1.0" IPS pipe. It typically attaches a sensor with a 3/4” IPS pipe mount to a CM202, CM204, or CM206 crossarm. This usage provides similar functionality as the CM220 Right Angle Mounting Bracket.

The 1049 has two ovoid segments that are oriented at a 90° angle. Each segment accepts one piece of pipe allowing a vertical pipe to be secured to a horizontal pipe. The horizontal and vertical pipes are secured to the 1049 fitting using screws, which are tightened with an Allen wrench.
