End of lifeConfigurableUHF Radio Transceiver Covering 411 to 429 MHz Range
UHF radio transceiver covering 411 to 429 MHz range.
Pricing
Configuration
Sign in for option pricing- 1-429MHz)1-429MHz)
- OLD RF322-M1 Ritron DTX-445 UHF Radio Programmed for ???.???MHz (411-429MHz) -M1 Config for RF500MOLD
- OLD RF322-M2 Ritron DTX-445 UHF Radio Programmed for ???.???MHz (411-429MHz) -M2 Config for AL200OLD
- OLD RF322-M3 Ritron DTX-445 UHF Radio Programmed for ???.???MHz (411-429MHz) -M3 Config for RF500M-ALOLD
Select a configuration to add to your quote
- Model:
- RF322
- Item Number:
- 28787
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview

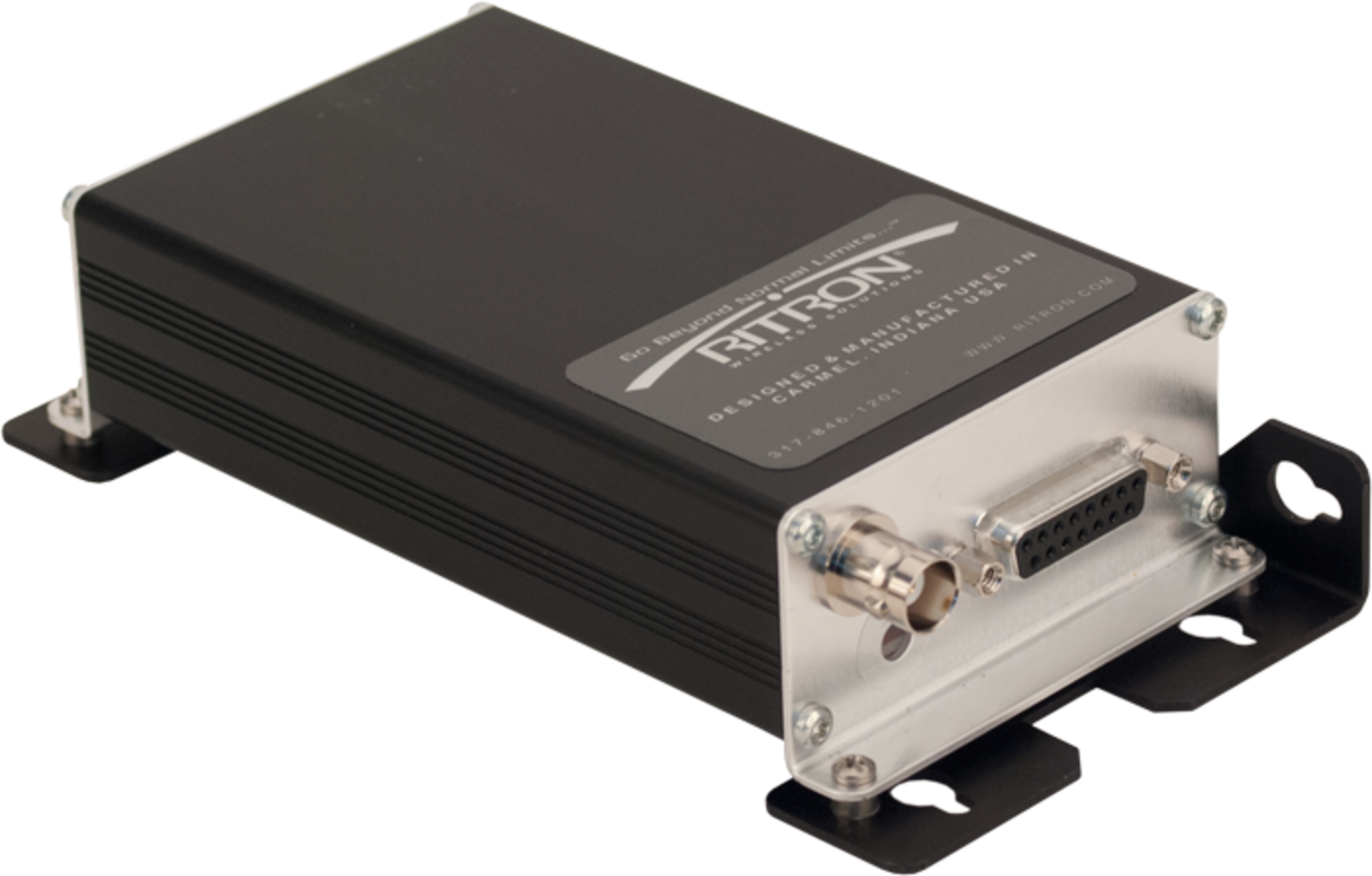

The RF322 is a 411 to 429 MHz radio. Campbell Scientific’s RF320-series narrowband UHF/VHF radio transceivers provide a long-distance telemetry option for communicating with remote measurement stations. Each radio includes a configured Ritron DTX-L radio, a mounting bracket, and a cable for connecting the radio to a radio modem. The different models vary by the frequency ranges they support.
Key Advantages
Long-distance option for communication
Technical Description
The RF322 is programmed by Campbell Scientific to the frequency that was assigned by the Federal Communications Commission (FCC). This frequency must be specified at time of order so that it can be programmed into the radio.
A user-supplied antenna is required for each radio; contact Campbell Scientific for more information about selecting the antenna and cable. Each radio must also be connected to an RF500M or RF310M radio modem.
Specifications
- Ritron Module
- DTX-445
- FCC ID
- AIERIT17-445
- Industry Canada ID
- 1084A-RIT17445
- FCC Rule Parts
- 90
- Industry Canada Rule Parts
- RSS-119
- Frequency Range
- 411 to 429 MHz
- RF Channels
- 8 independent Tx/Rx frequencies
- Synthesizer Step
- 6.25 kHz
- Channel Spacing
- 12.5 kHz
- Frequency Stability
- ±1.5 PPM
(-30° to +60°C)
- Input Voltage
- 9 to 17 Vdc
- Antenna Connector
- BNC socket (female)
- Dimensions
- 14.5 x 7.6 x 3.5 cm
(5.7 x 3 x 1.375 in.)
- Weight
- 0.2 kg
(7.3 oz)
Current Drain @ 12.5 Vdc
- Receive Standby
- 25 mA
- Transmitter
- < 0.9 A
(2 W output)
- Transmitter
- < 1.2 A
(5 W output)
Receiver
- Receiver Type
- 12.5 kHz narrowband
- Sensitivity
- 0.25 μV
(12 dB SINAD)
- Adjacent Channel
- -60 dB
- Receiver Attack Time
- < 10 ms
(Tx to Rx)
- Noise Squelch Sensitivity
- PC adjustable
(factory set for -121 dBm)
Transmitter
- RF Power Output
- 2 W or 5 W
(@ 12.5 Vdc)
- Duty Cycle
- 50%
(< 13.5 V, 5 W output, 25°C)
- Voice Emissions Designator
- 10K0F3E
- Data Emissions Designator
- 9K8F1D, 11K0F2D, 11K0F3D
- Transmitter Attack Time
- < 10 ms
