Surge Protection Kit, Type N to BNC, 100 to 512 MHz
31332
OrderableSurge Protection Kit, Type N to BNC, 100 to 512 MHz
Overview
Surge Protection Kit, Type N to BNC, 100- 512MHz, 45cm (18 Inch)

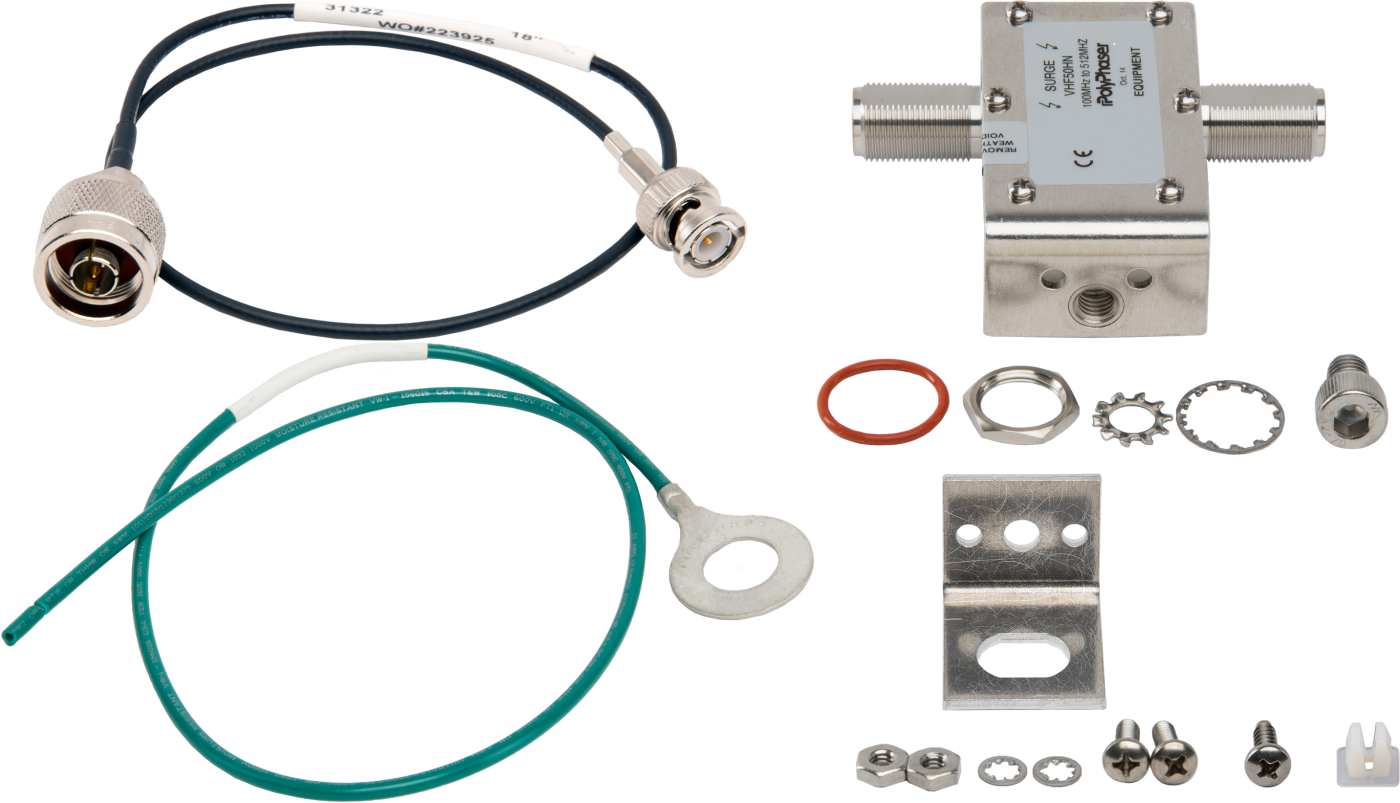

The 31332 is an RF surge protection kit with flange mounting bracket. It may be flange-mounted to an enclosure backplate or bulkhead-mounted through an enclosure wall. One side of the surge protector connects to a radio with a BNC antenna connection. The other side connects to an antenna/antenna coaxial cable with Type N connector. This kit includes:
- RF protector with hardware, suitable for 100 to 512 MHz
- Flange mounting bracket
- 18 in. Type N to BNC coaxial jumper
- 24 in. ground wire assembly
Specifications
Coaxial Jumper
- Connector 1
- Type N plug
- Connector 2
- BNC plug
- Cable Type
- RG174/U
- Length
- 45.7 cm
(18 in.)
Surge
- Performance Design
- Superior coil inductor surge performance design
- Weatherproof
- Weatherproof when installed
- Frequency
- 100 to 512 MHz
- Connectors
- Type N jack
- Mounting
- Bulkhead or flange mount
- Operation
- DC block
(RF only)
- Insertion Loss
- < 0.1 dB
- Maximum Surge
- IEC 61000-4-5 8/20 μs waveform
- Maximum Surge
- 20 kA
- Temperature
- -50° to +85°C
- Standards
- CE compliant, RoHS compliant, IEC 60529 IP67, Bellcore #TA-NWT-000487
- Type N Connector Length
- 2.41 cm
(0.95 in.)
- Dimensions
- 9.27 x 7.16 x 3.55 cm
(3.65 x 2.82 x 1.40 in.)
- Weight
- 226.8 g
(0.5 lb)
Flange Mount
- Material
- Aluminum with stainless-steel screws, nuts, and washers
- Dimensions
- 3.81 x 2.54 x 2.85 cm
(1.5 x 1.0 x 1.12 in.)
Ground Wire
- Wire Type
- 12 AWG stranded with PVC jacket
- Connector
- 5/8 crimp ring lug, soldered
- Length
- 61 cm
(24 in.)
