13855
RF Modem and Radio Push-to-Talk Switch
13855
RetiredRF Modem and Radio Push-to-Talk Switch
Pricing
- Model:
- 13855
- Item Number:
- 13855
- Warranty:
- 1 year
Overview

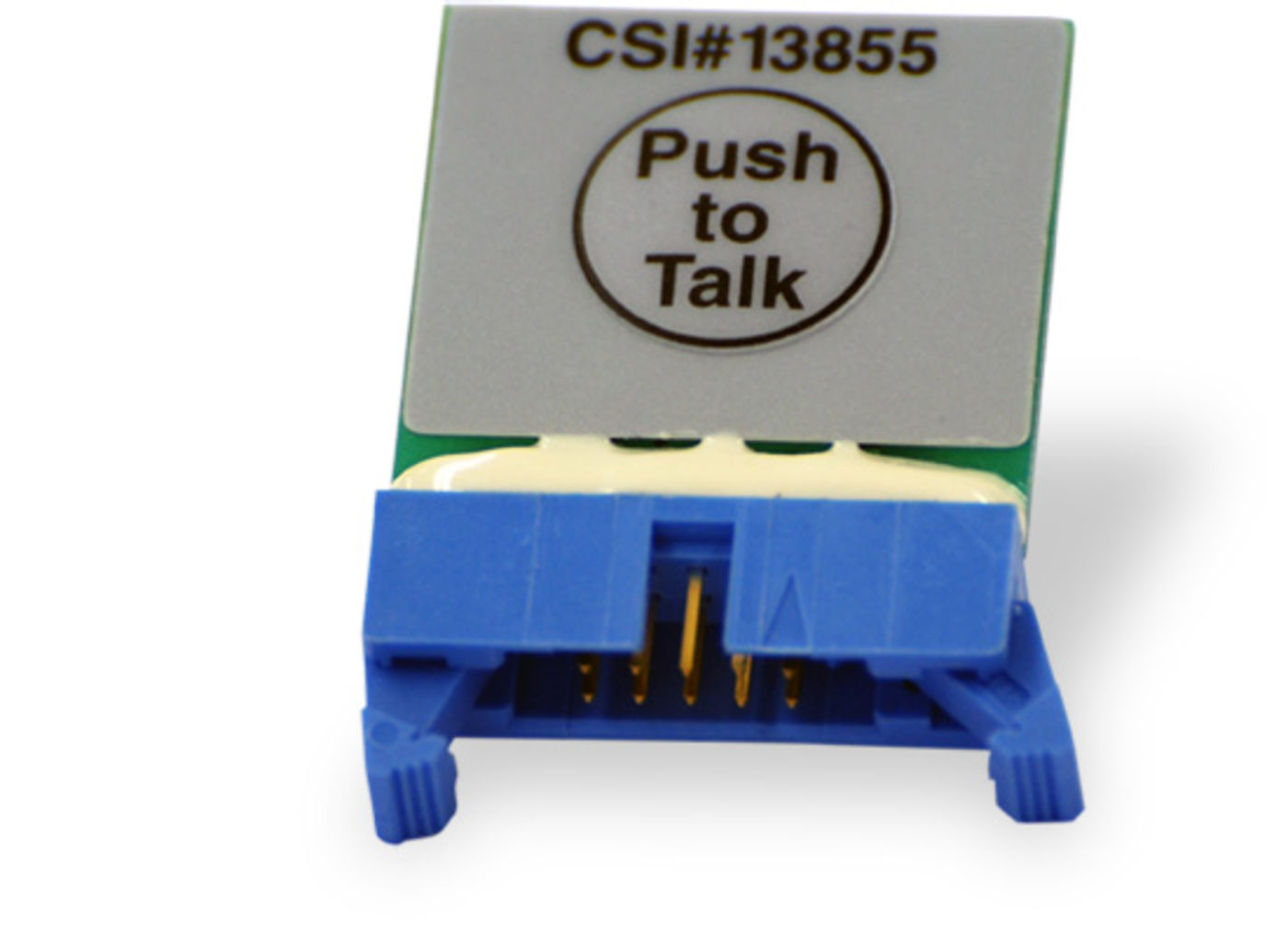

ACC RF Modem & Radio Push-To-Talk Switch
The 13855 push-to-talk switch allows a customer an easy method for keying up a radio. The 13855 attaches to a square 10-position connector on the radio-to-modem cable that is supplied with the radio (for example, pn 29201). Pressing the button grounds the radio push-to-talk (PTT) line, which causes the radio to transmit the carrier frequency. This process is useful during radio maintenance and for troubleshooting. For example, it allows a user to sustain a transmission while measuring the forward and reflected radio transmit power with a watt meter.
Key Advantages
Easily Key Up a Radio
Specifications
- Connector
- Square, 10-pin (2x5), 0.100 inch pitch, male
- Button
- Metal dome button with overlay
- Dimensions
- 1.27 x 3.81 x 5.08 cm
(0.5 x 1.5 x 2.0 in.)
- Weight
- 45.36 g
(0.1 lb)
