#40C
Maximum Wind Speed Sensor
#40C
OrderableMaximum Wind Speed Sensor
Overview

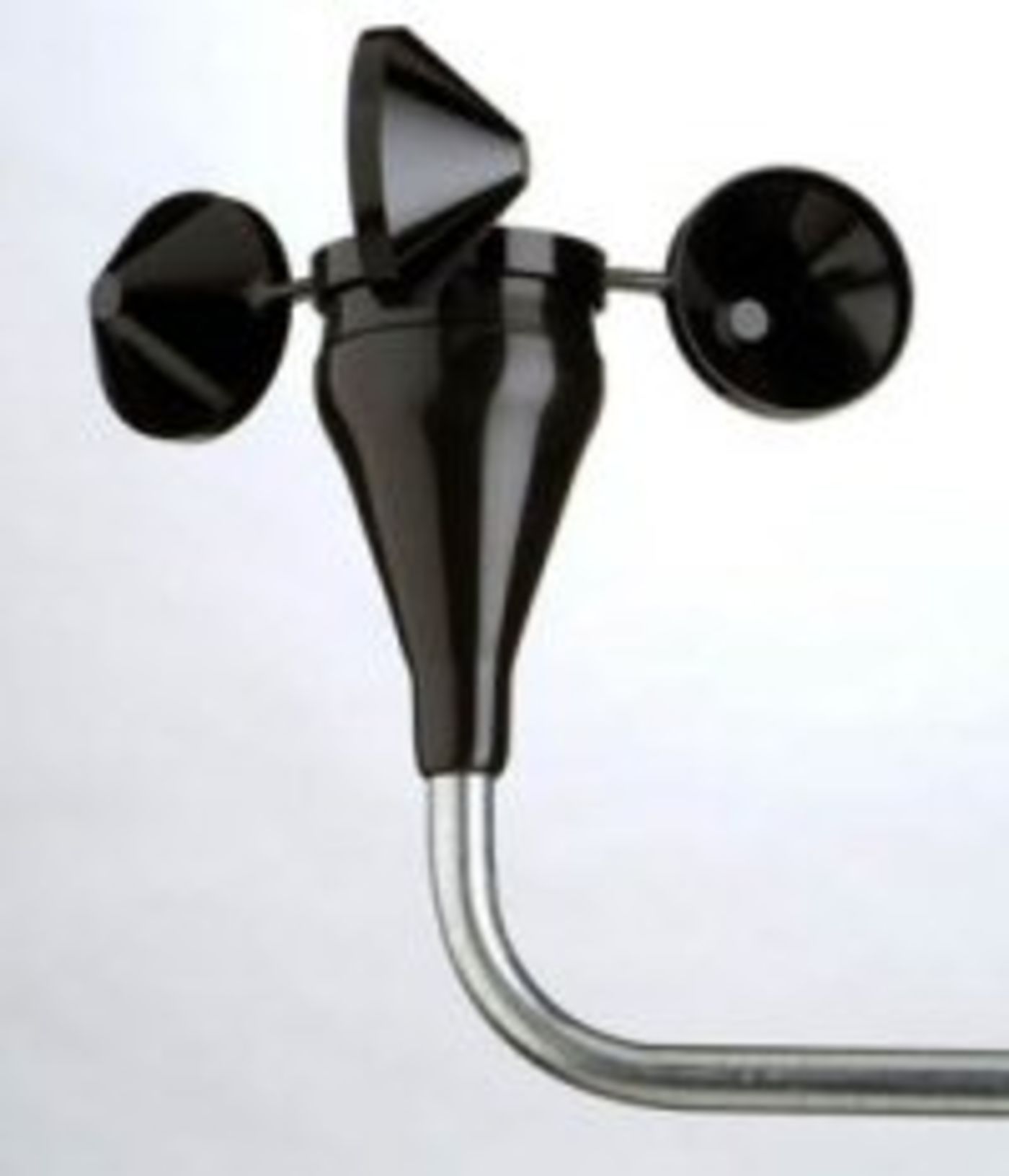

#40C NRG Wind Speed Sensor (-55 to +60C) w/o Cable
NRG's #40C is a MEASNET-calibrated anemometer primarily intended for wind prospecting applications. A four-pole magnet induces a sine wave voltage into a coil producing an output signal with frequency proportional to wind speed. This signal is measured by our data loggers. The #40C is constructed of Lexan. A rubber terminal boot is included. In February 2008, the #40C replaced the #40 anemometer.
Specifications
- Measurement Description
- Wind speed
- Signal Type/Output
- Low-level ac sine wave
(pulse)
- Operating Temperature Range
- -55° to +60°C
- Operating Relative Humidity
- 0 to 100% RH
- Starting Threshold
- 0.78 m/s
(1.75 mph)
- Range
- 1 to 96 m s-1
- Cup Distance Constant
- 3.0 m
(10 ft) 63% recovery
- Cup Diameter
- 5.1 cm
(2 in.)
- Swept Diameter of Rotor
- 19.0 cm
(7.5 in.)
- Overall Assembly Height
- 5.1 cm
(3.2 in.)
- Weight
- 0.1 kg
(0.2 lb)
