NL201

The NL201 is a serial-to-Ethernet interface that provides a wired Ethernet network connection to data loggers, peripherals, and other serial devices. The NL201 supports sophisticated networking capabilities for PakBus devices and networks. Using a unique technique to bridge the Ethernet and CS I/O ports, the NL201 can provide direct access to the integrated IP functionality of some Campbell Scientific data loggers. The NL201 can also act as a standard TCP serial server, serial client, Modbus TCP/IP gateway, and TLS proxy server for HTTPS and user-defined-port communication.

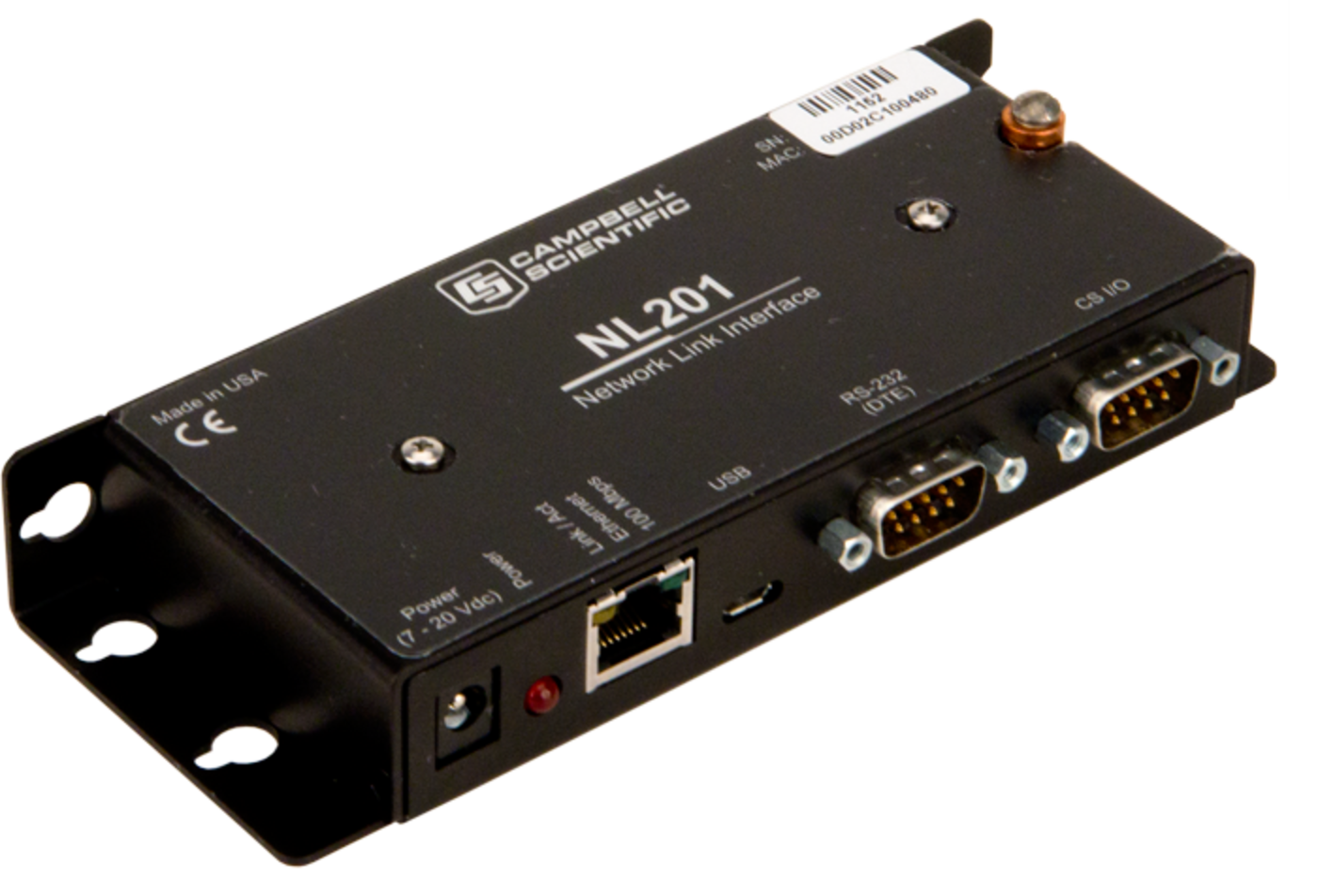

The NL201 connects to an Ethernet network using a 10Base-T/100Base-TX, full or half duplex, Ethernet interface. It has CS I/O and RS-232 ports for connecting a Campbell Scientific data logger, peripheral, Modbus RTU, or other serial-based device. A USB micro B connection is provided for on-site configuration using Device Configuration Utility software.

The NL201 can act as a PakBus router, TCP serial server, TCP serial client, Modbus TCP/IP gateway, and TLS proxy server for HTTPS and user-defined-port communications.

The NL201 also provides a unique mode that bridges the Ethernet and CS I/O ports. This allows access to the internal IP functionality of the CR6, CR800, CR850, CR1000, and CR3000 (for example, web page access, email, FTP). Adding an NL201 configured in this manner to a CR800 is analogous to adding an NL121 to a CR1000’s peripheral port. Adding an NL201 configured in this manner to a CR800 is analogous to adding an NL120 to a CR1000’s peripheral port.
