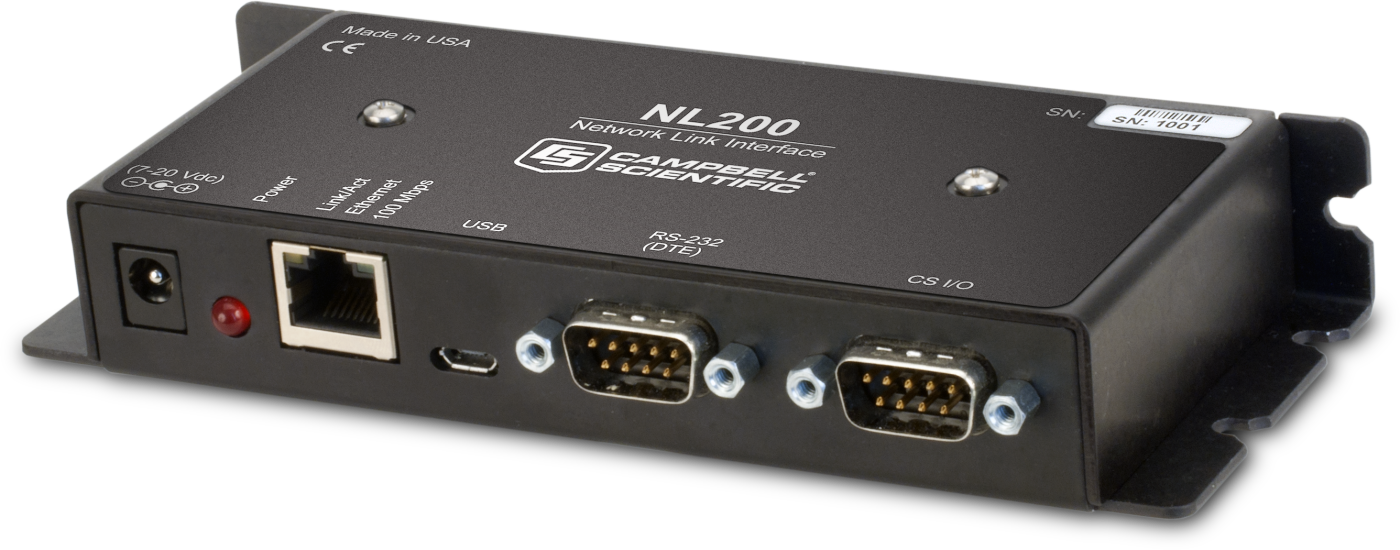

NL200

Name: NL200
Brand: Campbell Scientific
SKU: NL200
Availability: Discontinued

Network Link Interface

NL200

End of lifeConfigurable

Network Link Interface

Pricing

Model:: NL200
Item Number:: NL200
Warranty:: 1 year
Lead time:: 21 days

Overview

OBSOLETE Network Link Interface (Operating Range -25 to +50C) (L15966 or L14291 required)

Campbell Scientific's NL200 is a powerful network link interface that provides a wired Ethernet network connection to data loggers and peripherals. It allows our data loggers, as well as other serial devices, to communicate over a local area network or a dedicated Internet connection. Additionally, the NL200 supports sophisticated networking capabilities, especially when used in PakBus networks with PakBus devices. For example, with the NL200, multiple PakBus clients can be connected to a single data logger at the same time.

Key Advantages

Powerful Network Link
Extremely low power consumption

Technical Description

The NL200 communicates with Campbell Scientific data loggers and peripherals using an Ethernet 10/100 Mbps communications link. It has CS I/O and RS-232 ports for communication and a USB port for NL200 configuration.

The NL200 can be configured to bridge Ethernet and CS I/O communications allowing access to the internal IP functionality of the CR800, CR850, CR1000, and CR3000 (e.g., web page access, email, FTP). This device also can be configured to act as a serial server, as a PakBus router, or as a TLS Proxy server.

Specifications

Power Connector: DC Barrel
Power Requirements: 7 to 20 Vdc
(not powered via CS I/O or USB)
Operating Temperature Range: -25° to +50°C
Configuration: Device Configuration Utility over USB or Ethernet
Configuration: Telnet console over Ethernet
CS I/O Port: SDC 7, 8, 10, or 11
(does not support ME)
RS-232 Port: DTE
USB Port: Micro-B
Ethernet Port: IEEE 802.3, Auto-MDIX, IPv4, TCP, DHCP, Ping, Telnet, TLS, PakBus
Compliance: RoHS
Compliance: Magnetic Isolation, ESD and Surge tested
Compliance: Meets requirements for a Class B device under European standards.
Application of Council Directive(s): 2004/108/EC
Standards to Which Conformity Is Declared: EN61326-1;2006
Connections/Routes Supported: Supports 50 simultaneous TCP connections.
Connections/Routes Supported: Up to 10 of the 50 TCP connections can be used for TLS.
Connections/Routes Supported: PakBus Router supports 50 routes.
Dimensions: 16 x 6.73 x 2.54 cm
(6.3 x 2.65 x 1 in.)
Weight: 177 g
(6.3 oz)
