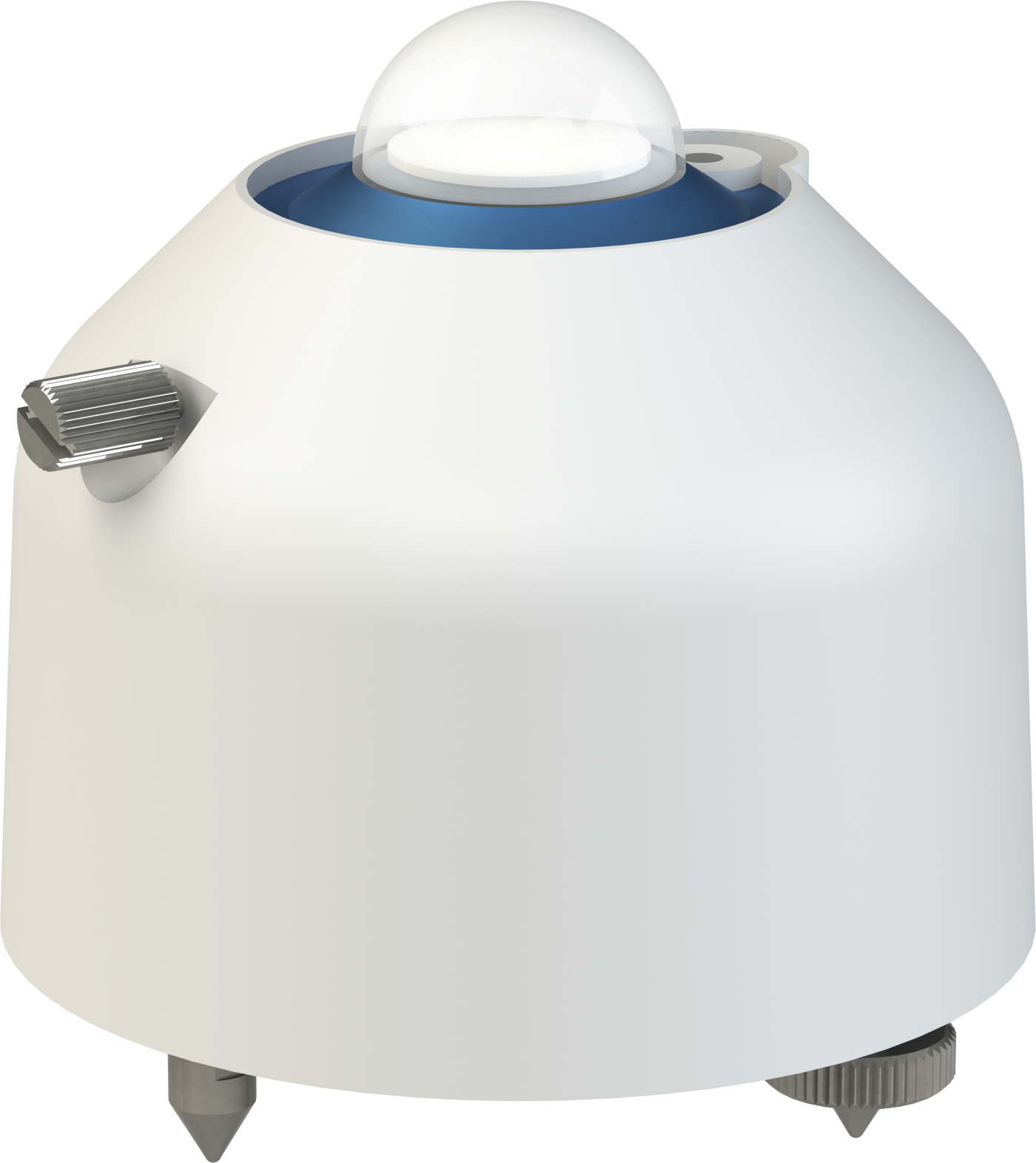

MS-80

Class A Pyranometer
MS-80

MS-80

RetiredConfigurable

Class A Pyranometer

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
MS-80
Item Number:
34617
Warranty:
5 years
Lead time:
14 days

Overview

EKO ISO 9060 Secondary Standard Pyranometer

The MS-80, manufactured by EKO Instruments, is an innovative, next-generation ISO 9060 Class A spectrally flat and fast-response (secondary standard) pyranometer inspired by the combination of latest technologies and state-of-the-art thermopile sensor with an unprecedented low zero-offset behavior; fast sensor response; and a five-year warranty and recalibration interval.

The MS-80 features a compact design with internal desiccation, single dome, isolated thermopile detector, quartz diffusor, immunity to offsets, ultra-low temperature dependency, and exceptional non-linearity characteristics. EKO instruments is the only ISO 17025 accredited pyranometer manufacturer in the world, enabling highest-quality calibration, compliant to international standards (ISO/IEC 17025/9847).

For a similar pyranometer with RS-485 Modbus communication, refer to the MS-80SH.

Benefits

  • ISO 9060 Class A spectrally flat and fast-response (secondary standard)
  • Exceptional stability, offset immunity, temperature dependency, and non-linearity
  • ISO 17025 certified calibration
  • Five-year warranty and recalibration interval

Specifications

Sensor
Internal desiccation, single-dome, isolated thermopile detector, quartz diffusor
Measurement Description
Monitors solar radiation for the full solar spectrum range
ISO Classification
ISO 9060 Class A spectrally flat and fast-response pyranometer

(secondary standard)

ISO Classification
ISO 17025 Class A pyranometer
Output
Analog

(mV)

Sensitivity
~10 µV/W/m2
Impedance
< 45000 Ω
Response Time
< 1 s

(95%)

Zero Offset A
< 1 W/m2

(response to 200 W/m2 net thermal radiation)

Zero Offset B
±1 W/m2

(response to 5 K/h change in ambient temperature)

Non-Stability
±0.5% change per 5 years
Non-Linearity
±0.2%

(at 1000 W/m2)

Directional Response
±10 W/m2

(at 1000 W/m2)

Spectral Selectivity
±3%

(0.35 to 1.5 μm)

Temperature Response
< 0.8%

(-10° to +40°C)

Temperature Response
< 1%

(-20° to +50°C)

Tilt Response
< ±0.2%

(0 to 90° at 1000 W/m2)

Operating Temperature Range
-40° to +80°C
Irradiance Range
0 to 4000 W/m2
Spectral Range
285 to 3000 nm
Ingress Protection
IP67
