ENC10/12

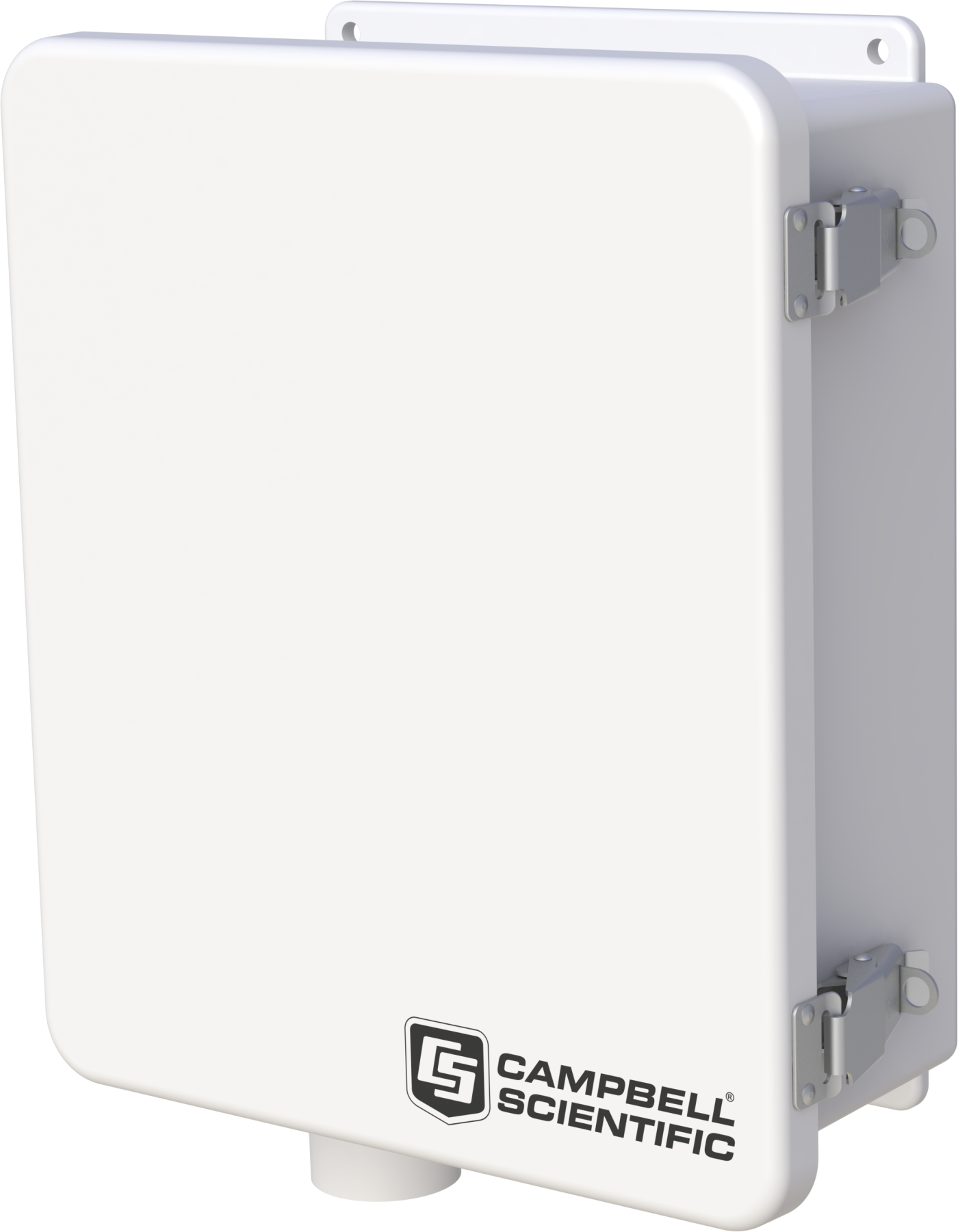

Weather-Resistant Enclosure, 10 x 12 inches
multi image upload

ENC10/12

OrderableConfigurable

Weather-Resistant Enclosure, 10 x 12 inches

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
ENC10/12
Item Number:
45360
Warranty:
1 year
Lead time:
14 days

Overview

Weather-Resistant 10 x 12 Inch Enclosure

The ENC10/12 is a weather-resistant enclosure that is 10 inches wide and 12 inches tall. This enclosure can house and protect a smaller data logger, a power supply, and a small peripheral. Or it can house a peripheral that needs to be housed in an enclosure separate from the data logger.

Please note that a grounding wire is not included with the enclosure.

Key Advantages

Rugged, Versatile
Campbell components mount easily and securely

Technical Description

The ENC10/12's backplate is prepunched with half-inch-on-center holes suitable for attaching a data logger, power supply, and a communications or measurement and control peripheral.

The ENC10/12 is shipped with the 7363 enclosure supply kit that consists of desiccant, a humidity indicator card, cable ties, wire tie tabs, putty, grommets, screws, and PVC coupling. Additionally, Campbell Scientific offers a CS210 Enclosure Humidity Sensor for monitoring relative humidity inside of the enclosure. (See Ordering Info on the web page.)

Benefits

  • Weather resistant to protect instruments
  • Backplate designed so that Campbell Scientific components mount easily and securely
  • White, UV-stabilized enclosure reflects solar radiation—reducing temperature gradients inside the enclosure without requiring a separate radiation shield

Specifications

Color
White

(Reflects solar radiation, reducing temperature gradients inside the enclosure without using a separate radiation shield.)

Construction
Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps
Enclosure Classification
NEMA 4X

(before being modified for cable entry)

Number of Cable-Entry Seals
1 medium, 2 small
Dimensions
30.5 x 25.4 x 11.4 cm

(12 x 10 x 4.5 in.) internal

Dimensions
34.06 x 29.03 x 13.23 cm

(13.41 x 11.43 x 5.21 in.) external

Weight
4.1 kg

(9.0 lb)

Related Resources

Documents
