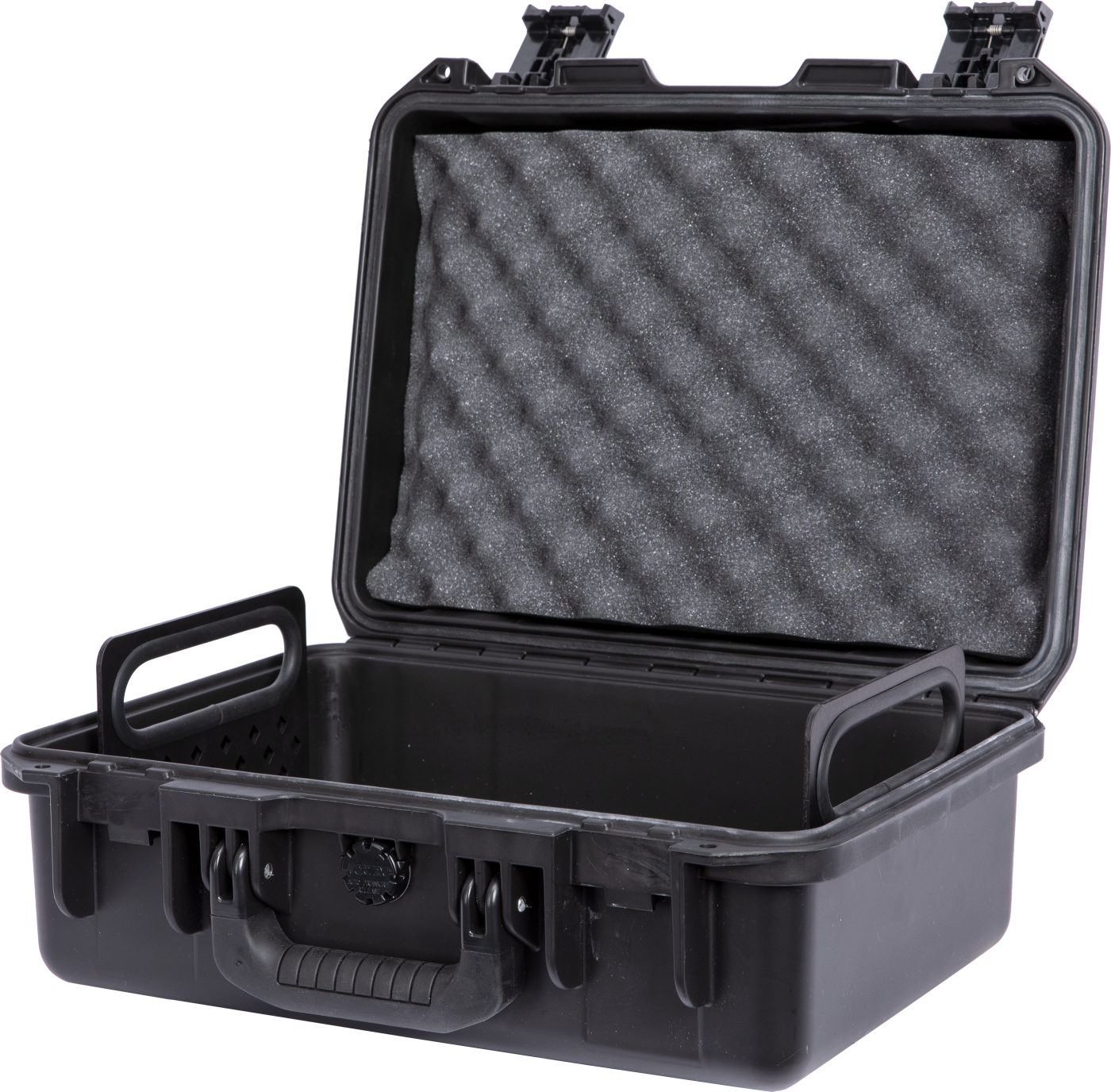

DAQ Case 15

Data Acquisition (DAQ) Laboratory and Field Case
DAQ Case 15

DAQ Case 15

Orderable

Data Acquisition (DAQ) Laboratory and Field Case

A field-rugged case specifically configured for the GRANITE™ Data Acquisition Systems and data loggers.

Model:
DAQ Case 15
Item Number:
35664
Warranty:
1 year
Lead time:
21 days

Overview

DAQCASE15 Data Acquisition (DAQ) Laboratory & Field Case, 25 X 38cm (10 x 15 Inch) (-29 to +60C)

The DAQ Case 15 is a cost-effective and convenient carrying case for your valuable data acquisition equipment. This case is specifically configured for GRANITE™ Data Acquisition Systems and Campbell Scientific data loggers. The DAQ Case 15 is optimized for applications that require easy transport in a lab, in the field, or for short-term deployments.

The DAQ Case 15 includes a removable backplate that is housed inside a rugged Pelican™ carrying case. It is ideal for use in labs, short-term deployments, or applications where the data acquisition system will not be directly exposed to adverse conditions. The DAQ Case 15 does not include cable penetrations or mounting hardware. Therefore, it is not intended to be a long-term solution for applications that require sealed cable entry and cable management.

Key Advantages

Field-Rugged Case
Protects and stores your monitoring equipment

Benefits

  • Field-rugged case
  • Specifically configured for GRANITE Data Acquisition Systems and data loggers
  • Protects and manages monitoring equipment carried in the field
  • Convenient for easy equipment configuration in the lab

Specifications

Construction
Injection-molded HPX™ high-performance resin with VALOX™-Polybutylene Terephthalate (PBT) latches, EPDM O-ring material, and stainless-steel pins
Foam Material
1.3/1.35 polyester
Enclosure Classification
IP67 (without modifications)
Operating Temperature Range
-29° to +60°C
Dimensions
38.1 x 26.7 x 15.2 cm

(15.0 x 10.5 x 6.0 in.) internal

Dimensions
41.1 x 32.3 x 16.8 cm

(16.2 x 12.7 x 6.6 in.) external

Weight
3.24 kg

(7.15 lb)
