24 V Power Supply with Daisy Chain Connectors for GRANITE Modules
39160
Orderable24 V Power Supply with Daisy Chain Connectors for GRANITE Modules
Overview

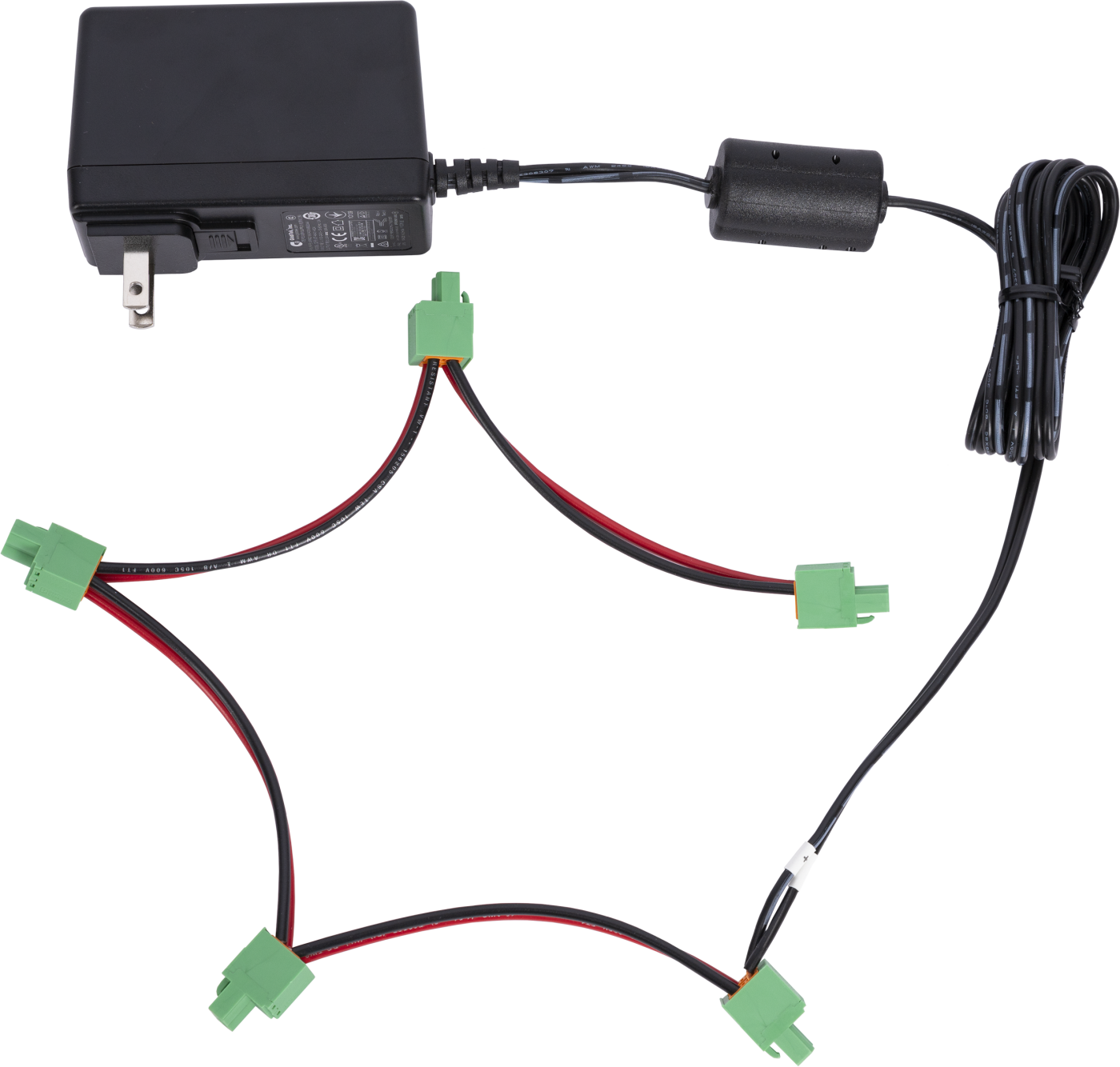

ACC GRANITE 24V Power Supply w/Daisy Chain Connectors
The 39160 provides power to GRANITE™ data-acquisition components and measurement modules. It is ideal for use with products that have been installed side-by-side on a standard 2.54 cm (1 in.) grid Campbell Scientific backplate.
The 39160 converts 100 to 240 Vac to a regulated 24 Vdc. The 39160 comes standard with a USA/Canada plug, with an option to add a kit for international use (pn 29798).
Benefits
- Auto-recovery upon removal of fault
Specifications
- Temperature Range
- -40° to +40°C
- Input Voltage
- 100 to 240 Vac
- Input Frequency
- 47 to 63 Hz
- Output Voltage
- 24 Vdc
- Maximum Output Current
- 1.67 A
- Standards
- UL60950-1 2nd Edition
