RetiredConfigurablePressure Transducer
Pricing
- Model:
- CS450-L
- Item Number:
- CS450-L
- Lead time:
- 21 days
- Compliance:
- vented
Overview

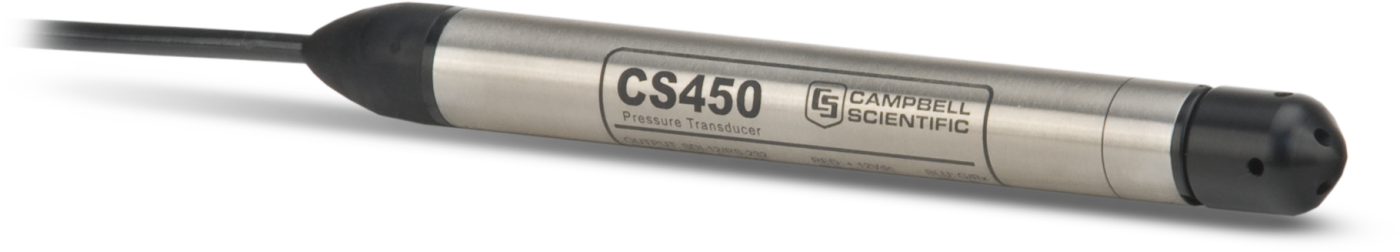

The CS450 is a pressure transducer for water level measurements in canals, wells, ponds, harbors, lakes, streams and tanks. It has a stainless-steel case that can be submerged in most canals, wells, ponds, lakes, and streams. The CS450 outputs either a digital SDI-12 or RS-232 signal to indicate observed pressure and temperature. This output can be read by many of our data loggers.
Key Advantages
Ideal for long-term deployment in harsh conditions
Technical Description
The CS450 consists of a piezoresistive sensor and a temperature sensor housed in a 316L stainless-steel case. It has a rugged Hytrel cable that remains flexible, even under harsh environmental conditions. The cable incorporates a vent tube to compensate for atmospheric pressure fluctuations. The vent tube terminates inside a desiccant tube, which prevents water vapor from entering the inner cavity of the transducer.
The CS450 has several pressure range options and two accuracy options . The standard accuracy option provides ±0.1% FS TEB over the 0° to 60°C temperature range. The high accuracy option provides ±0.05% FS TEB over the 0° to 60°C temperature range and includes a calibration certificate. TEB is the combined errors due to nonlinearity, hysteresis, non-repeatability, and thermal effects over the compensated temperature range, per ISA S51.1. Please note that the high accuracy option is not available for the 0 to 2.9 psig range option.
Campbell Scientific offers the A150 Desiccated Case that allows the CS450 to be connected to a CWS900 Wireless Sensor Interface (for use in a wireless sensor network) or to be connected to a prewired enclosure (see Ordering Information).
Benefits
- Quality construction ensures product reliability
- Rugged stainless-steel case protects piezoresistive sensor
- Compatible with most Campbell Scientific data loggers
- Fully temperature-compensated
- Low-power sleep state between measurements reduces power consumption
- Optional weighted nose cone facilitates submersion
- NPT fitting allows it to be used in closed-pipe applications
- Quick shipment after receipt of order (ARO)
- Compatible with the A150 Desiccated Case, which allows it to be connected to the CWS900 and used in a wireless sensor network
Specifications
- Measurement Time
- < 1.5 s
- Outputs
- SDI-12 (version 1.3) 1200 bps; RS-232 9600 bps
- Resolution
- 0.0035% FS
- Operating Temperature
- -10° to +80°C
- Compensated Temperature
- 0° to 60°C
- Temperature Accuracy
- ±0.2°C
- Overpressure
- 2 x pressure range
- Power Requirements
- 6 to 18 Vdc
- Accuracy with Standard Accuracy Option
- ±0.1% FS TEB
(Includes the combined errors due to nonlinearity, hysteresis, nonrepeatability, and thermal effects over the compensated temperature range, per ISA S51.1.)
- Accuracy with High Accuracy Option
- ±0.05% FS TEB
(The high accuracy [±0.05% FS] option is not available for the 0 to 2.9 psig range option.)
- Cable Type
- Hytrel Jacket, five conductor, 26 AWG
- NPT Fitting
- 1/4-in. NPS
- Top Cone Material
- Delrin
- Body Material
- 316L stainless steel
- Element Material
- 316L stainless steel
- Diameter
- 2.13 cm
(0.84 in.)
- Length
- 21.34 cm
(8.4 in.)
- Distance
- 2.86 cm
(1.13 in.) from black line etched on housing to end of NPT fitting
- Distance
- 4 cm
(1.58 in.) from black line etched on housing to end of standard nose cone
- Distance
- 11.59 cm
(4.56 in.) from black line etched on housing to end of weighted nose cone
- Weight without Cable
- 0.18 kg
(0.40 lb)
- Cable Weight
- 0.421 kg/m
(0.283 lb/ft)
- Weight
- 0.211 kg
(0.465 lb) for 25414 Weighted Nose Cone
Power Consumption
- Quiescent
- < 80 µA
- Measurement/Communication
- 8 mA
(1-s measurement)
- Maximum
- 40 mA
Pressure Measurement Range
- Option -2
- ≤ 2.9 psig
(20 kPa)
- Option -7
- ≤ 7.25 psig
(50 kPa)
- Option -14
- ≤ 14.5 psig
(100 kPa)
- Option -29
- ≤ 29 psig
(200 kPa)
- Option -72
- ≤ 72.5 psig
(500 kPa)
- Option -145
- ≤ 145 psig
(1000 kPa)
Depth of Fresh Water Measurement Range
- Option -2
- ≤ 2.0 m
(6.7 ft)
- Option -7
- ≤ 5.1 m
(16.7 ft)
- Option -14
- ≤ 10.2 m
(33.4 ft)
- Option -29
- ≤ 20.4 m
(67 ft)
- Option -72
- ≤ 50.9 m
(167 ft)
- Option -145
- ≤ 102 m
(334.5 ft)
Maximum Cable Length
- SDI-12 (1 sensor connected to a single port)
- ~457 m
(1500 ft)
- SDI-12 (10 sensors connected to a single port)
- 60 m
(200 ft)
- RS-232
- 60 m
(200 ft)
