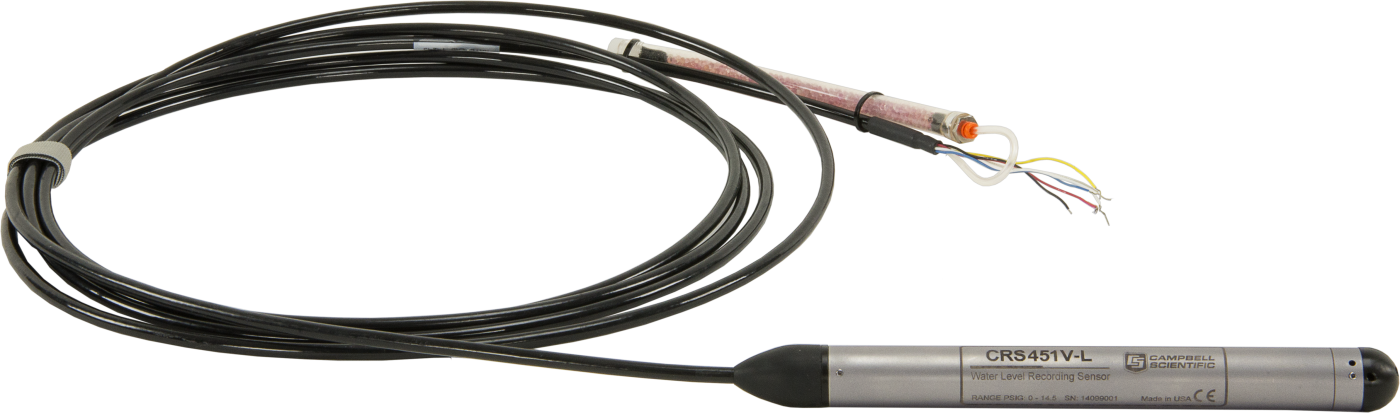

OrderableConfigurableGSATitanium Vented Stand-Alone Pressure Transducer
Titanium recording pressure transducer with a vented cable so barometric pressure corrections aren't needed.
Pricing
Configuration
Sign in for option pricing- w/10m (33ft) per Sensor Higher 0.05% Accuracy 0-14.5psig (100kPa) –SN w/Standard Nose Cone-10m
- w/10m (33ft) per Sensor Higher 0.05% Accuracy 0-145psig (1000kPa) –SN w/Standard Nose Cone-10m
- w/10m (33ft) per Sensor Higher 0.05% Accuracy 0-72.5psig (500kPa) –SN w/Standard Nose Cone-10m
- w/10m (33ft) per Sensor Higher 0.05% Accuracy 0-29psig (200kPa) –SN w/Standard Nose Cone-10m
- w/10m (33ft) per Sensor Standard 0.1% Accuracy 0-145psig (1000kPa) –SN w/Standard Nose Cone-10m
- w/10m (33ft) per Sensor Higher 0.05% Accuracy 0-7.25psig (50kPa) –SN w/Standard Nose Cone-10m
- w/10m (33ft) per Sensor Standard 0.1% Accuracy 0-29psig (200kPa) –SN w/Standard Nose Cone-10m
- w/10m (33ft) per Sensor Standard 0.1% Accuracy 0-14.5psig (100kPa) –SN w/Standard Nose Cone-10m
- w/10m (33ft) per Sensor Standard 0.1% Accuracy 0-72.5psig (500kPa) –SN w/Standard Nose Cone-10m
- +60C) w/10m (33ft) per Sensor Standard 0.1% Accuracy 0-2.9psig (20kPa) –SN w/Standard Nose Cone+60C)
Select a configuration to add to your quote
- Model:
- CRS456V
- Item Number:
- 45284
- Warranty:
- 1 year
- Lead time:
- 45 days
Overview
The CRS456V consists of a submersible water-level and water-temperature sensor with its own time clock and memory to store the collected data—in a compact titanium case. This data logging capability frees users to place the sensor in remote sites and let it collect data for long periods. HydroSci software is included and elegantly supports test setup, data retrieval, and data display. Long battery life and rugged construction mean you can trust the CRS456V to collect important data. Low cost and ease of use make it a good choice in a variety of applications. The CRS451V is the same as this, but with a stainless-steel case.
Key Advantages
High resolution and accuracy
Technical Description
The CRS456V has several pressure range options.
HydroSci software is available for download. This software simplifies the process of configuring the CRS456V. Users can configure the CRS456V to monitor surface water, ground water, or a standard pump test.
HydroSci software will display the data in tabular or graphical formats.
Benefits
- Sensors and data-collection features in one instrument case
- Rugged titanium case protects piezoresistive sensor allowing it to be used in saltwater and other harsh environments
- Quality construction ensures product reliability
- Fully temperature-compensated
- Fast scan rate
- Large data-storage capacity
- Long battery life
- Easy-to-use software
Specifications
- Venting
- Vented
- Measurement Time
- < 1.0 s
- Input Voltage
- 6 to 16 Vdc
- Output Options
- micro USB
- Internal Data Collection Memory
- 4 MB
- Logging/Scanning Modes
- Standard, Delta, Wave, Logarithmic
- Resolution
- 0.0035% FS
- Dry Storage Temperature Range
- -10° to +80°C
WARNING: Sensor could be damaged if encased in frozen ice. - Operating Temperature Range
- 0° to 60°C
WARNING: Sensor could be damaged if encased in frozen ice. - Overpressure
- 2 x pressure range
- Power Requirements
- Internal user-replaceable lithium battery
- Battery Life
- 5+ years
(when logging interval is once per hour; approximately 40,000 measurements)
- Body Material
- Titanium
- Distance
- 2.54 cm
(1 in.)
Distance from black line etched on housing to end of NPT fitting - Distance
- 2.3 cm
(0.9 in.)
Distance from black line etched on housing to end of standard nose cone - Distance
- 9.9 cm
(3.9 in.)
Distance from black line etched on housing to end of weighted nose cone - Water-Level Accuracy
- ±0.1% full-scale-range TEB
Includes the combined errors due to nonlinearity, hysteresis, nonrepeatability, and thermal effects over the compensated temperature range, per ISA S51.1. - Temperature Accuracy
- ±0.2°C
- Ingress Protection
- Exceeds IP68
- Diameter
- 2.22 cm
(0.875 in.)
- Length
- 22.23 cm
(8.75 in.)
- Weight
- 230 g
(0.51 lb)
Power Consumption
- Quiescent
- < 80 µA
- Measurement/Communication
- 4 mA
(1 s measurement)
Measurement Ranges at Fresh Water Depths
- 0 to 5.1 m (16.7 ft)
- 0 to 7.25 psi
- 0 to 5.1 m (16.7 ft)
- 0 to 50 kPa
- 0 to 10.2 m (33.4 ft)
- 0 to 14.5 psi
- 0 to 10.2 m (33.4 ft)
- 0 to 100 kPa
- 0 to 20.4 m (67 ft)
- 0 to 29 psi
- 0 to 20.4 m (67 ft)
- 0 to 200 kPa
- 0 to 50.9 m (167 ft)
- 0 to 72.5 psi
- 0 to 50.9 m (167 ft)
- 0 to 500 kPa
- 0 to 102 m (334.5 ft)
- 0 to 145 psi
- 0 to 102 m (334.5 ft)
- 0 to 1000 kPa
