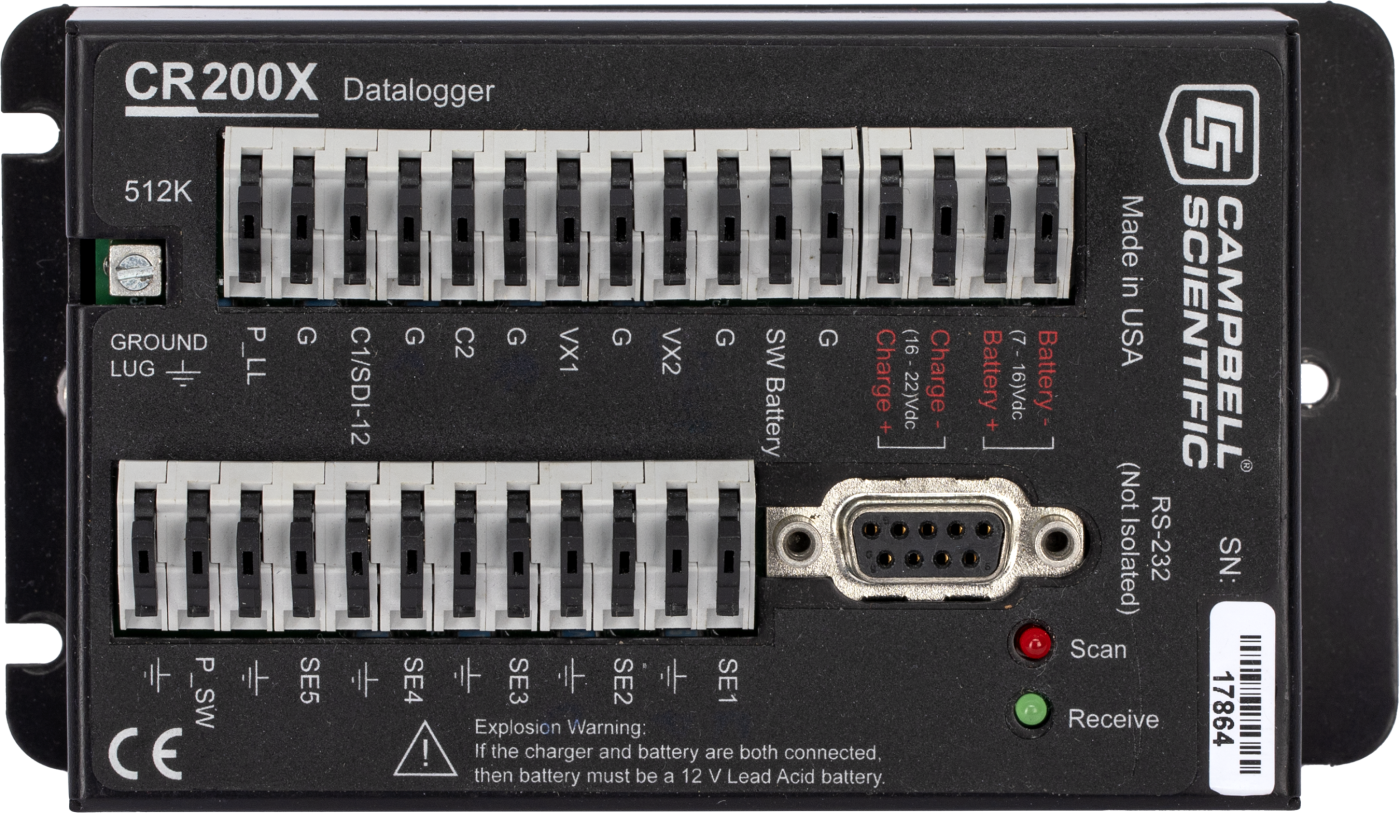

CR200X
CR200X
RetiredDatalogger
Pricing
- Model:
- CR200X
- Item Number:
- 21937
- Warranty:
- 3 years
Overview
The CR200X, our smallest lowest-cost data logger, provides stand-alone operation in harsh, remote environments. It reads input from one or two sensors, then transmits the data using communication peripherals. CRBasic, its full programming language, supports simple or complex programming. Multiple CR200Xs can be configured as a network, or units can be deployed individually.
Key Advantages
Lowest-Cost Data Logger
Technical Description
The CR200X has several input channels for measuring a variety of sensors. Gas discharge tubes provide rugged electrostatic discharge protection for the inputs.
The CR200X does not make differential measurements and is not compatible with SDM devices, multiplexers, or thermocouples (refer to the Compatibility information for compatible sensors, peripherals, and software). Recalibration services are not offered for the CR200X datalogger.
Benefits
- Ideal applications include wind energy, rural water, water level/flow, aquaculture, water quality
- Campbell Scientific’s smallest, lowest cost data logger
- Gas Discharge Tube (GDT) protected inputs
- Optimal for measuring one or two simple sensors
- Makes SDI-12, single-ended analog, pulse, switch closure, and bridge measurements
- Battery-backed clock that ensures accurate time is maintained while data logger is disconnected from battery power
- Program with LoggerNet, PC400, or Short Cut to fit your setup
- PakBus, Modbus, and SDI-12 protocols supported
Specifications
- -NOTE-
- Note: Additional specifications are listed in the CR200X-Series Specifications Sheet.
- Maximum Scan Rate
- 1 Hz
- Analog Channels
- The single-ended analog inputs can also be used as control ports.
- Analog Channels
- 5 single-ended (no differential)
individually configured
- Pulse Count Channels
- 2
- Switched Excitation Channels
- 2 voltage
- Digital Ports
- Certain digital ports can be used to count switch closures.
- Digital Ports
- 2 I/O
- Communication Ports
- 1 RS-232
- Switched Battery Port
- 1
- Input Voltage Range
- 0 to 2500 mV
- Analog Voltage Accuracy
- ±(0.25% of reading + (1.2 mV)x(offset))
at -40° to +50°C
- Analog Voltage Resolution
- 0.6 mV
- A/D Bits
- 12
- Operating Temperature
- -40° to +50°C
- Power Requirements
- 7 to 16 Vdc
- Typical Current Drain
- ~0.2 mA
(quiescent)
- Typical Current Drain
- ~3 mA
(active)
- Clock Accuracy
- 8.2 min./month
(@ -40° to +50°C)
- Clock Accuracy
- 1 min./month
(@ +25°C)
- Protocols Supported
- PakBus (leaf node only), SDI-12
- CE Compliance Standards to which Conformity Is Declared
- IEC61326:2002
- Warranty
- 3 years
- Dimensions
- 14.0 x 7.6 x 4.8 cm
(5.5 x 3.0 x 1.9 in.)
- Weight
- 242 g
(8.5 oz)
Memory
- Final Storage
- 512 kB of flash memory for approximately 125,000 data points
- Operating System
- 106 kB of flash memory
- Intermediate Storage
- 8 kB of SRAM for communication buffers, calculations, variables, etc.
Accessories
(10)15725
CR200(X)-Series Datalogger Compiler and OS on CD
Retired17394
Converter, USB to DB9 Pin (Male) RS-232
OrderableALK7
7 Ah 12 V Alkaline Battery Pack (requires 8 D cell batteries)
OrderableBP7
7 Ah 12 V Sealed Rechargeable Battery
Orderable15988
Wall Charger
Orderable17159
CR200(X)-Series Operator's Manual
RetiredENC200
Enclosure for CR200X-Series Dataloggers with 5 Cable Entry Seals
Retired16869
12 V 0.8 Ah Sealed Rechargeable Battery with Connector
Retired16876
ENC200 and TurfWeather Power Transformer Kit
Retired7977
100 Ohm Shunt Resistor Assembly
Orderable
Related Resources
Case Studies
Virginia: ALERT System
Upgrade of ALERT flood warning system in Virginia
Virginia
November 23, 2009
View
Pennsylvania: Monitoring Landfills
Landfill monitoring and system control
Pennsylvania
March 31, 2011
View
England: Wind Monitoring Systems
Providing real-time weather information for port operations
Port of Tyne, Northeast Coast of England
April 29, 2016
View

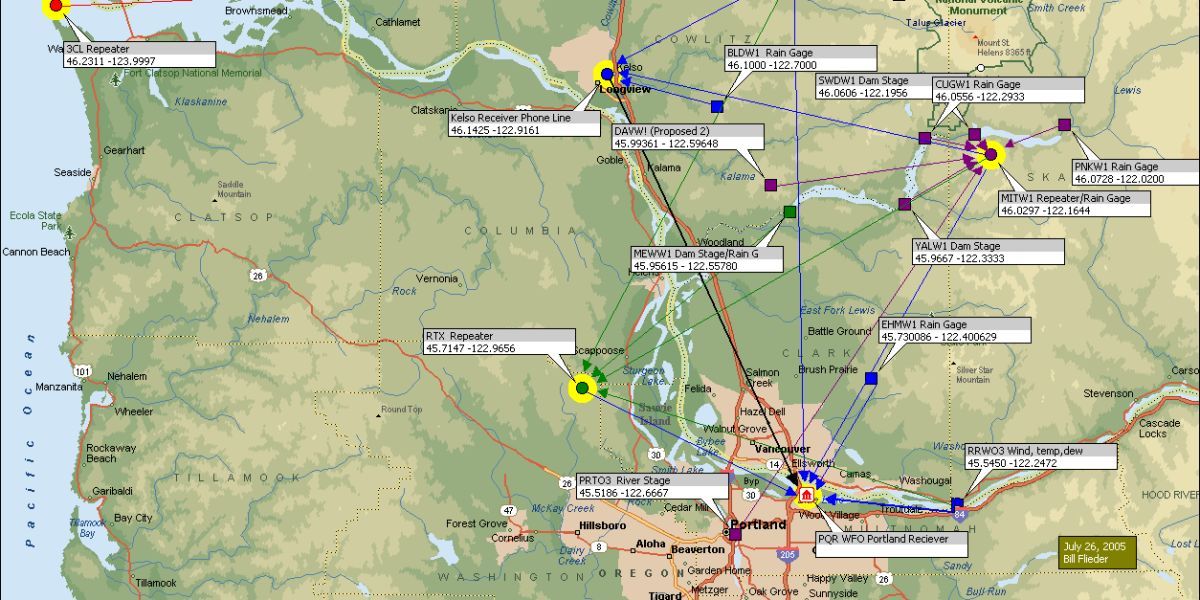

Washington: ALERT Station Retrofit
