ENC200

ENC200 Enclosure for CR200X Series Dataloggers w/5 Cable Entry Seals 17 x 14 x 9.5cm

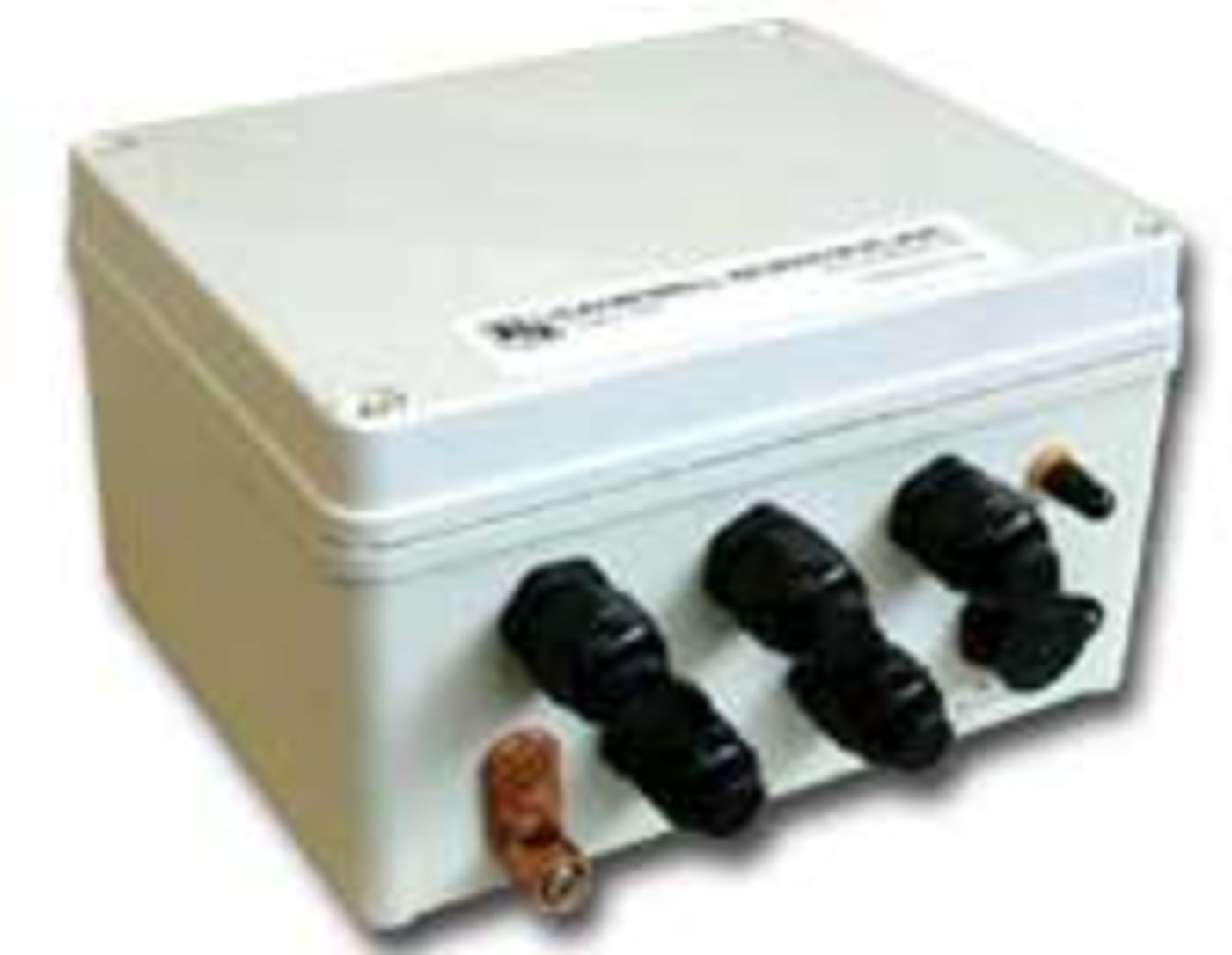

The ENC200 is a very small enclosure that was designed to hold one CR200(X)-series datalogger and the 16869 Sealed Rechargeable Battery. The data logger is secured to the ENC200 with screws and grommets; the battery is held in place with a Velcro strap. Five compression fittings are provided for sensor cable entry; there are also specialized connectors for a solar panel, antenna, and system ground.

Note: The ENC200 is retired. If a small enclosure is needed for a CR300 or CR310 datalogger, Campbell Scientific recommends using the ENC8/10.

Rugged, Versatile
Campbell components mount easily and securely

Applications with minimal power requirements can use the ENC200 enclosure to house the data logger and the pn 16869 sealed rechargeable battery. It is a very small enclosure.

The logger is secured to the ENC200 with screws and grommets; the battery is held in place with a Velcro strap. Five compression fittings are provided for sensor cable entry; there are also specialized connectors for a solar panel, antenna, and system ground.

Note: For a CR206X, CR211X, or CR216X enclosed in an ENC200, it is necessary to use an antenna. Compatible antennas are listed in the “Common Accessories” section of the Ordering Info page for each data logger:

• CR206X
• CR211X
• CR216X

An antenna is not necessary for the CR200X because it doesn’t have a radio. An antenna is also not necessary for the CR295X because it uses a GOES satellite transmitter.
