CMP3

Pyranometer with Sun Shield

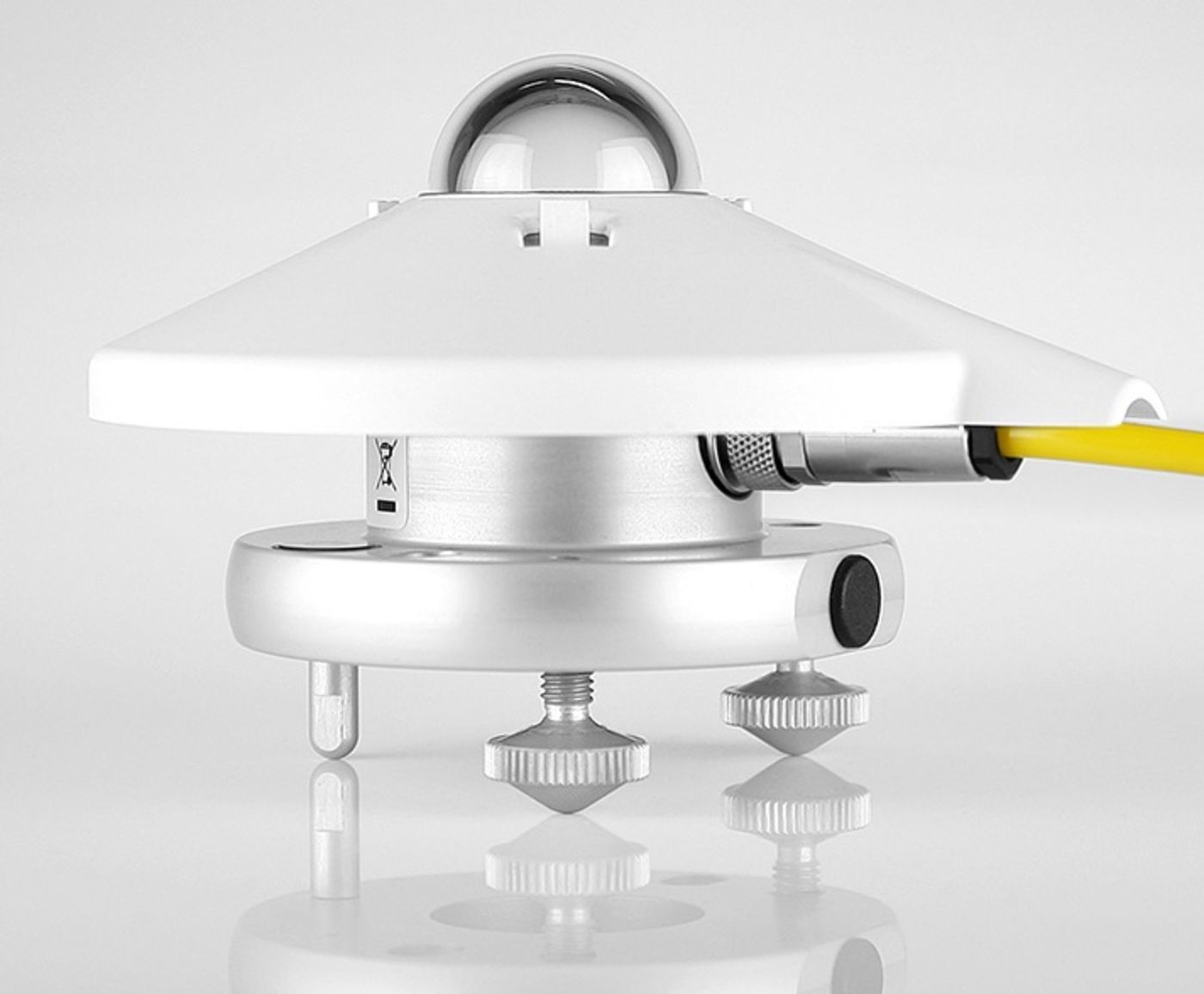

According to Matt Perry, we have permission to use from Kipp & Zonen.

CMP3

Retired

Pyranometer with Sun Shield

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
CMP3
Item Number:
22125
Warranty:
2 years
Lead time:
21 days
Compliance:
requires CM225

Overview

Kipp & Zonen Pyranometer w/Sun Shield

The CMP3, manufactured by Kipp & Zonen, is an ISO-second-class pyranometer that monitors solar radiation for the full solar spectrum range. It connects directly to a Campbell Scientific data logger and is used for many meteorological applications.

Key Advantages

Protective Glass Dome and Solar Shield
Compatible with most Campbell Scientific data loggers

Technical Description

The CMP3 measures solar radiation with a high-quality blackened thermopile protected by a dome. The blackened thermopile provides a flat spectral response for the full solar spectrum range, which allows the CMP3 to be used under plant canopies or lamps, when the sky is cloudy, and for reflected radiation measurements.

The CMP3 includes a white snap-on sun shield that reduces the sensor's temperature. It also has a bubble level and adjusting leveling screws, which enable the sensor to be leveled without using a leveling base.

The CMP3 produces a millivolt signal that is measured directly by a Campbell Scientific data logger.

Two CMP3 pyranometers can be mounted back-to-back to make a low cost albedometer. Contact Campbell Scientific for more information.

Benefits

  • Includes a white snap-on sun shield that reduces the sensor's temperature
  • Measures reflected solar radiation when inverted
  • Provides measurements in direct sunlight, under plant canopies, when the sky is cloudy, and in artificial light
  • Includes bubble level and leveling screws, eliminating the need for a separate leveling base and simplifying installation
  • Acceptable for providing the solar radiation data used in stability estimations
  • Dome protects thermopile and allows water to roll off of it
  • Designed for continuous indoor and outdoor use

Specifications

Sensor
Blackened thermopile protected by a dome
Measurement Description
Monitors solar radiation for the full solar spectrum range
Spectral Range
300 to 2800 nm
Maximum Irradiance
2000 W/m2
Sensitivity
5 to 20 µV/W/m2
Operating Temperature Range
-40° to +80°C
Temperature Dependence
±5%

(-10° to +40°C)

Non-Linearity
< ±2.5%

(0 to 1000 W/m2)

Tilt Response
< ±2% at 1000 W/m2

(±80°)

ISO Classification
Class C (second class)
Dome Diameter
3.2 cm

(1.3 in.)

Width
7.9 cm

(3.1 in.)

Height
6.7 cm

(2.6 in.)

Weight
600 g

(1.2 lb) with 10 m (32.8 ft) cable
