CM255
Solar Adjustable-Angle Mounting Stand
CM255
OrderableSolar Adjustable-Angle Mounting Stand
Overview
CM255 Solar Adjustable-Angle Mounting Stand
The CM255 is used for most applications that require mounting a solar sensor at adjustable angles. The CM255 includes slots that can be adjusted to any angle from horizontal to vertical. The mounting stand is designed to work with masts, crossarms, or poles that have a 2.5 to 3.8 cm (1.0 to 1.5 in.) outer diameter. It is not designed for applications using a rotating shadowband radiometer (RSR).

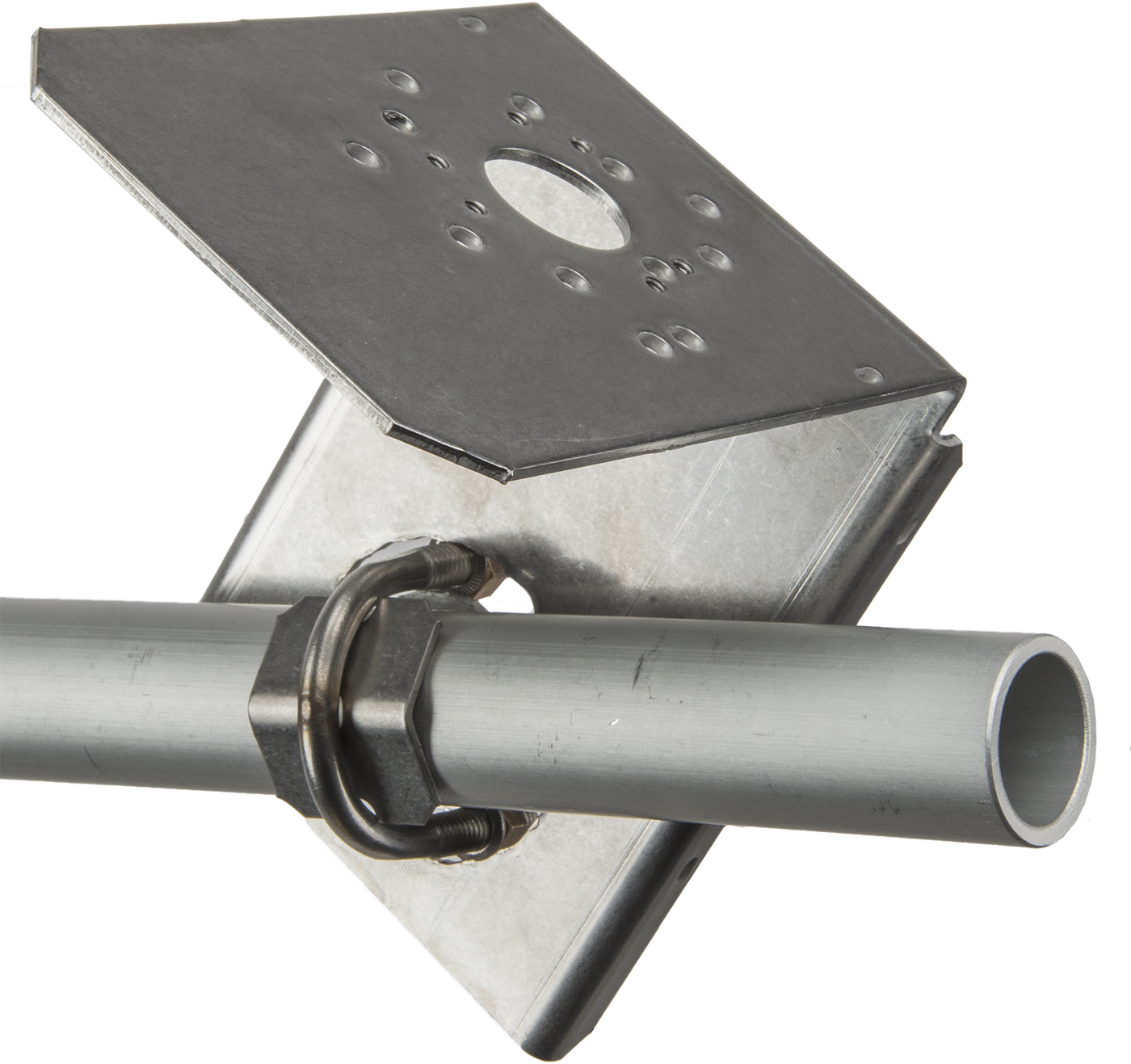

Note: In the image the CM255 is shown with a mounting pole (sold separately).
Specifications
- Why/When to Use
- Used to mount a solar sensor at adjustable angles, from horizontal to vertical.
- Material
- 12 gage, 304 stainless steel
- Platform Area
- 15.2 x 15.2 cm
(6.0 x 6.0 in.)
- Arm Length
- 106.7 cm
(42.0 in.)
- Weight
- 2.5 kg
(5.5 lb)
