CM225
Solar Sensor Mounting Stand
CM225
OrderableGSASolar Sensor Mounting Stand
Overview
CM225 Solar Sensor Mounting Stand**
The stainless-steel CM225 attaches one pyranometer or quantum sensor to a mast, crossarm, or pole (1 to 2 in. OD). Many pyranometers and quantum sensors also require a leveling base that secures the sensor to the CM225 as well as level the sensor.

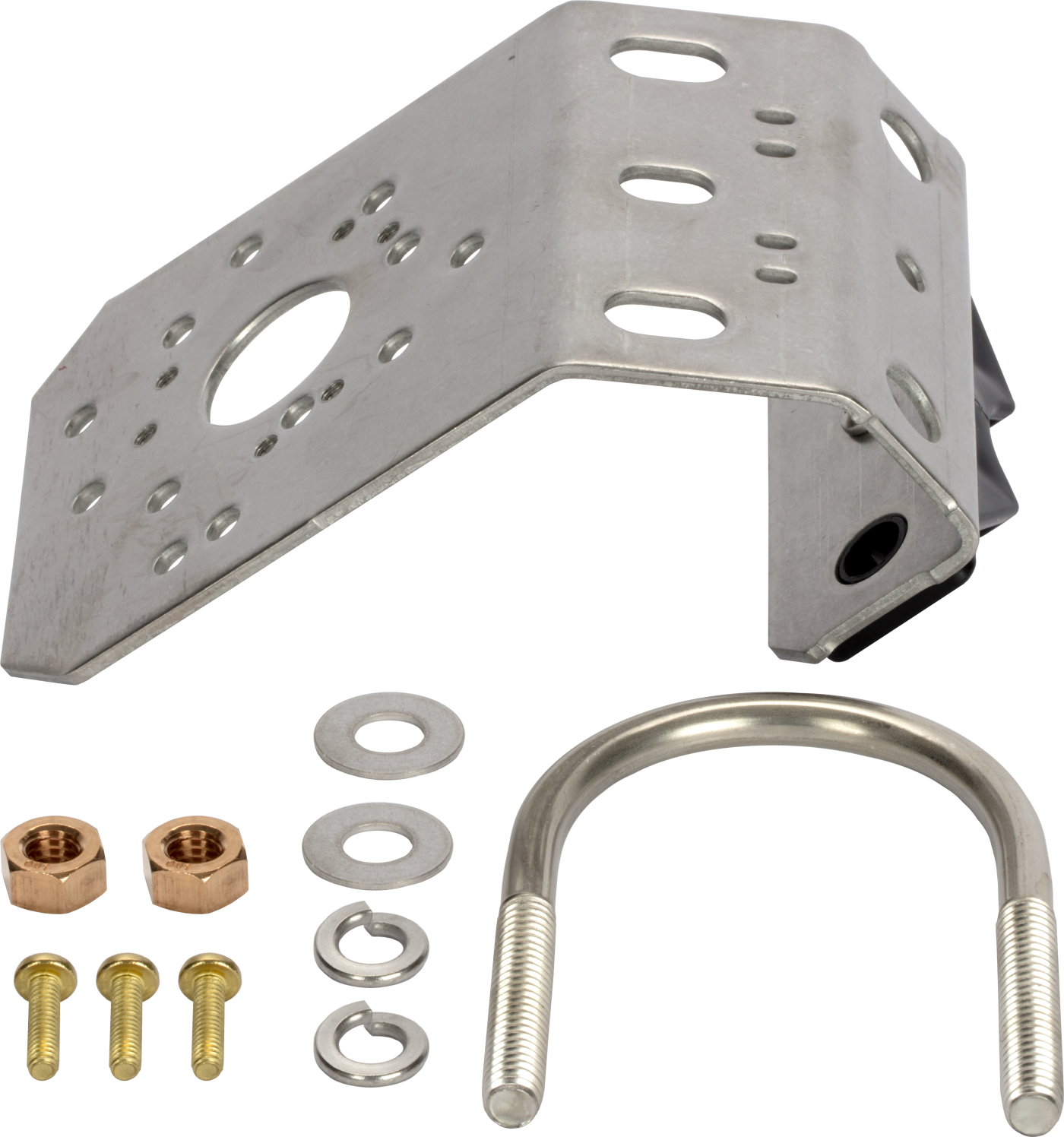

The CM225 consists of a rectangular plate, mounting bracket, U-bolts, lock washers, and nuts.
Specifications
- Why/When to Use
- Used when the pyranometer only needs to be mounted in a horizontal position.
It is also typically used with a crossarm.
- Material
- 12 gage, 304 stainless steel
- Dimensions
- 8.9 x 11.3 x 6.4 cm
(3.5 x 4.5 x 2.5 in.)
- Weight
- 0.34 kg
(0.75 lb)
Related Resources
Documents
- Manual
CM225, CM255, CM256, CM261, CM266, CM268, and CM275 Solar Radiation Sensor Mounts
November 2025
View Document - Brochure
Solar Radiation Sensors
March 2026
View Document - Technical Paper
CM225, CM255, CM255LS Pyranometer Mounting Brackets
April 2015
View Document - Compliance
CM225 EU Declaration of Conformity
February 2018
View Document
