CM310

Name: CM310
Brand: Campbell Scientific
SKU: CM310
Availability: InStock

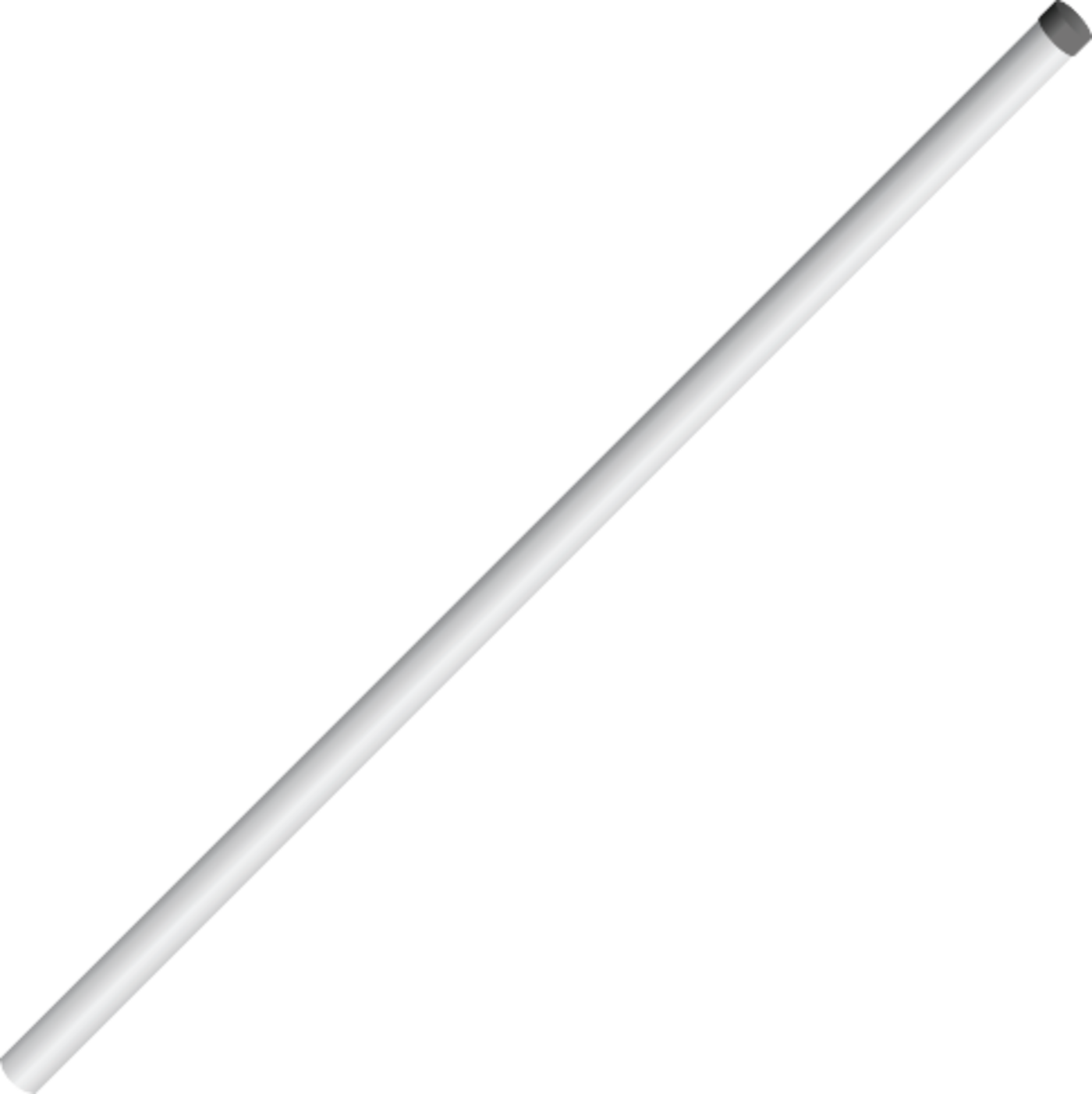

56 in. Mounting Pole with Cap

CM310

OrderableConfigurable

56 in. Mounting Pole with Cap

Pricing

Configuration

CM310 56 inch Mounting Pole w/CapCM310-NP
CM305 142cm (56 Inch) Mounting Pole w/Cap Mast to Pole (Ships as 20571 & 39360)CM310-MP
CM305 142cm (56 Inch) Mounting Pole w/Cap Pedestal J-Bolt Kit (Ships as 20571 & 20572)CM310-PJ
CM305 142cm (56 Inch) Mounting Pole w/Cap Pedestal Long Legs (Ships as 20571 & 20574)CM310-PL
CM305 142cm (56 Inch) Mounting Pole w/Cap Pedestal Short Legs (Ships as 20571 & 20573)CM310-PS

Qty

Select a configuration to add to your quote

Model:: CM310
Item Number:: CM310
Warranty:: 1 year
Lead time:: 14 days

Overview

56 inch Mounting Pole w/Cap

The CM310 is a 142 cm (56 in.), stainless-steel, 1.5-in. IPS vertical pole. It is designed for mounting sensors, enclosures, or other instruments, and is an ideal mount for remote sensors such as a tipping bucket rain gage or net radiometer. Our CS700, TB4, and 385 rain gages are typically mounted to the CM310 via the CM240 leveling base. This mounting pole can be embedded directly into a concrete foundation or used with a pedestal kit. (See Ordering Info on the web page.)

Note: Grounding connections from the mounting pole to the system’s main tripod/tower or to the ground are important to help protect the system and measurements. The parts to establish these grounding connections are not included with the mounting pole.

Specifications

Material: Stainless-steel pipe 1.5 IPS
Outer Diameter: 4.8 cm
(1.9 in.)
Pipe Size: 3.81 cm
(1.5 in.) IPS
Length: 142 cm
(56 in.)
Weight: 7.7 kg
(17 lb)

Short Leg Kit

Pedestal Height and Radius: Note: The pedestal height is foot/ground to bottom of mast vertical distance, and it is adjustable to the following:
Material: Stainless-steel tubing 1.5 OD
Leg Length: 58 cm
(23 in.)
Pedestal Height and Radius: 11 cm (4 in.) height and a 66 cm (26 in.) radius
for Hole F
Pedestal Height and Radius: 22 cm (9 in.) height and a 63 cm (25 in.) radius
for Hole E
Pedestal Height and Radius: 27 cm (11 in.) height and a 59 cm (23 in.) radius
for Hole D
Pedestal Height and Radius: 33 cm (13 in.) height and a 55 cm (22 in.) radius
for Hole C
Pedestal Height and Radius: 36 cm (14 in.) height and a 51 cm (20 in.) radius
for Hole B
Pedestal Height and Radius: 41 cm (16 in.) height and a 46 cm (18 in.) radius
for Hole A

Long Leg Kit

Pedestal Height and Radius: Note: The pedestal height is foot/ground to bottom of mast vertical distance, and it is adjustable to the following:
Material: Stainless-steel tubing 1.5 OD
Leg Length: 99 cm
(39 in.)
Pedestal Height and Radius: 20 cm (8 in.) height and a 105 cm (41 in.) radius
for Hole F
Pedestal Height and Radius: 41 cm (16 in.) height and a 97 cm (38 in.) radius
for Hole E
Pedestal Height and Radius: 50 cm (20 in.) height and a 91 cm (36 in.) radius
for Hole D
Pedestal Height and Radius: 59 cm (23 in.) height and a 85 cm (34 in.) radius
for Hole C
Pedestal Height and Radius: 66 cm (26 in.) height and a 77 cm (30 in.) radius
for Hole B
Pedestal Height and Radius: 73 cm (29 in.) height and a 69 cm (27 in.) radius
for Hole A
