CM300

Name: CM300
Brand: Campbell Scientific
SKU: CM300
Availability: InStock

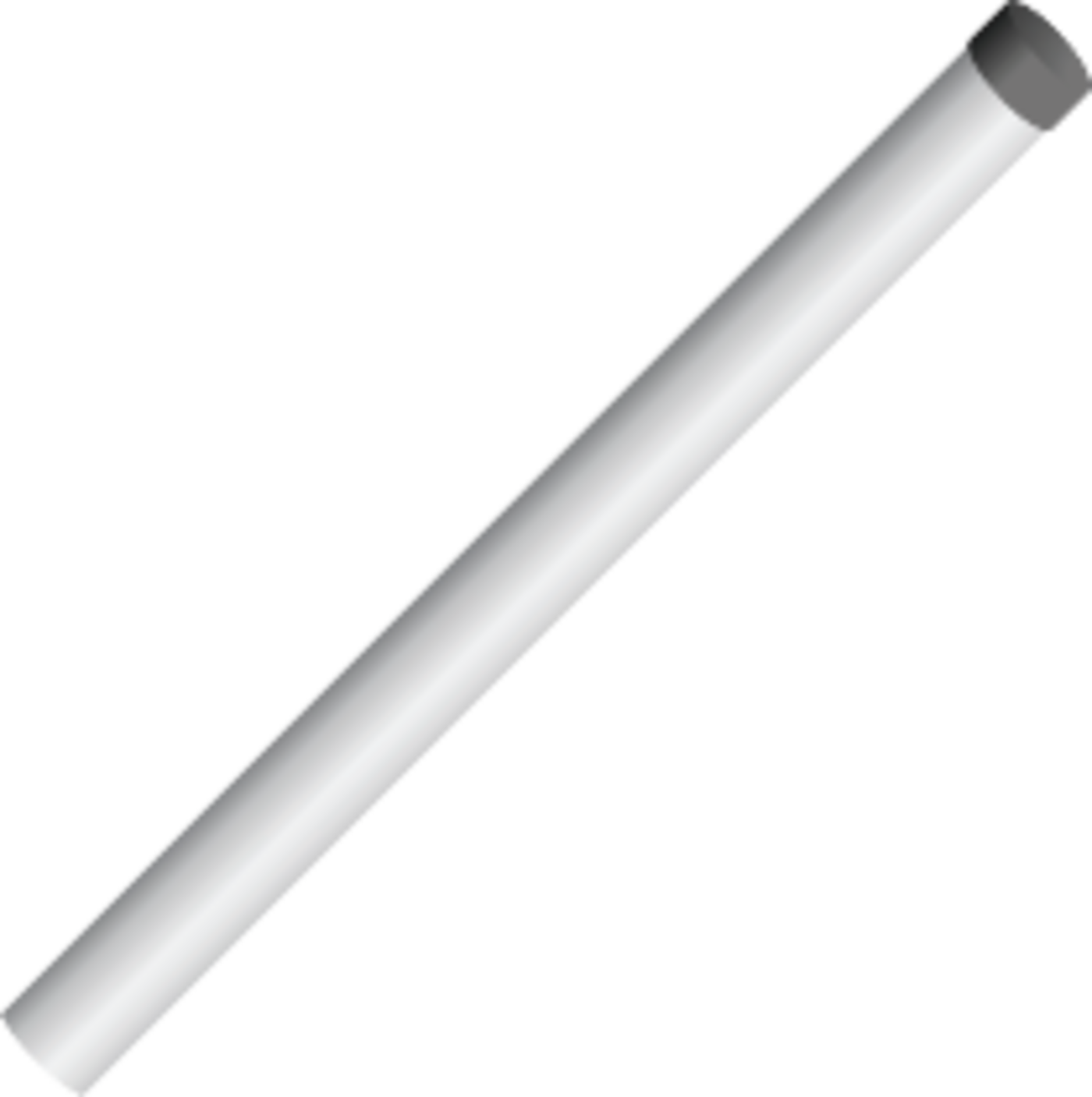

23 in. Mounting Pole with Cap

CM300

OrderableConfigurable

23 in. Mounting Pole with Cap

Pricing

Configuration

Mast to Pole (Ships as 20569 & 39539)CM300-MP
Pedestal J-Bolt Kit (Ships as 20569 & 20572)CM300-PJ
Pedestal Long Legs (Ships as 20569 & 20574)CM300-PL
Pedestal Short Legs (Ships as 20569 & 20573)CM300-PS

Qty

Select a configuration to add to your quote

Model:: CM300
Item Number:: CM300
Warranty:: 1 year
Lead time:: 14 days

Overview

23 inch Mounting Pole w/Cap

The CM300 is a 58 cm (23 in.), stainless-steel, 1.5 in. IPS vertical pole. It is designed for mounting sensors, enclosures, or other instruments, and is an ideal mount for remote sensors such as a tipping bucket rain gage or net radiometer. Our CS700, TB4, and 385 rain gages are typically mounted to the CM300 via the CM240 leveling base. This mounting pole can be embedded directly into a concrete foundation or used with a pedestal kit. (See Ordering Info on the web page.)

Note: Grounding connections from the mounting pole to the system’s main tripod/tower or to the ground are important to help protect the system and measurements. The parts to establish these grounding connections are not included with the mounting pole.

Specifications

Material: 304 stainless-steel pipe 1.5 NPS SCH 5
Outer Diameter: 4.8 cm
(1.9 in.)
Length: 58 cm
(23 in.)
Weight: 3.2 kg
(7 lb)

Short Legs Kit

Material: 304 stainless-steel tubing with 3.81 cm (1.5 in.) OD
Leg Length: 58 cm
(23 in.)
Pedestal Height and Radius: Note: The pedestal height is measured from the ground (or foot of the structure on the ground) to the base of the mast, in a vertical direction. It is adjustable to the following:
Pedestal Height and Radius: 41 cm (16 in.) height and a 46 cm (18 in.) radius
for Hole A
Pedestal Height and Radius: 36 cm (14 in.) height and a 51 cm (20 in.) radius
for Hole B
Pedestal Height and Radius: 33 cm (13 in.) height and a 55 cm (22 in.) radius
for Hole C
Pedestal Height and Radius: 27 cm (11 in.) height and a 59 cm (23 in.) radius
for Hole D
Pedestal Height and Radius: 22 cm (9 in.) height and a 63 cm (25 in.) radius
for Hole E
Pedestal Height and Radius: 11 cm (4 in.) height and a 66 cm (26 in.) radius
for Hole F

Long Legs Kit

Material: 304 stainless-steel tubing with 3.81 cm (1.5 in.) OD
Leg Length: 99 cm
(39 in.)
Pedestal Height and Radius: Note: The pedestal height is measured from the ground (or foot of the structure on the ground) to the base of the mast, in a vertical direction. It is adjustable to the following:
Pedestal Height and Radius: 73 cm (29 in.) height and a 69 cm (27 in.) radius
for Hole A
Pedestal Height and Radius: 66 cm (26 in.) height and a 77 cm (30 in.) radius
for Hole B
Pedestal Height and Radius: 59 cm (23 in.) height and a 85 cm (34 in.) radius
for Hole C
Pedestal Height and Radius: 50 cm (20 in.) height and a 91 cm (36 in.) radius
for Hole D
Pedestal Height and Radius: 41 cm (16 in.) height and a 97 cm (38 in.) radius
for Hole E
Pedestal Height and Radius: 20 cm (8 in.) height and a 105 cm (41 in.) radius
for Hole F
