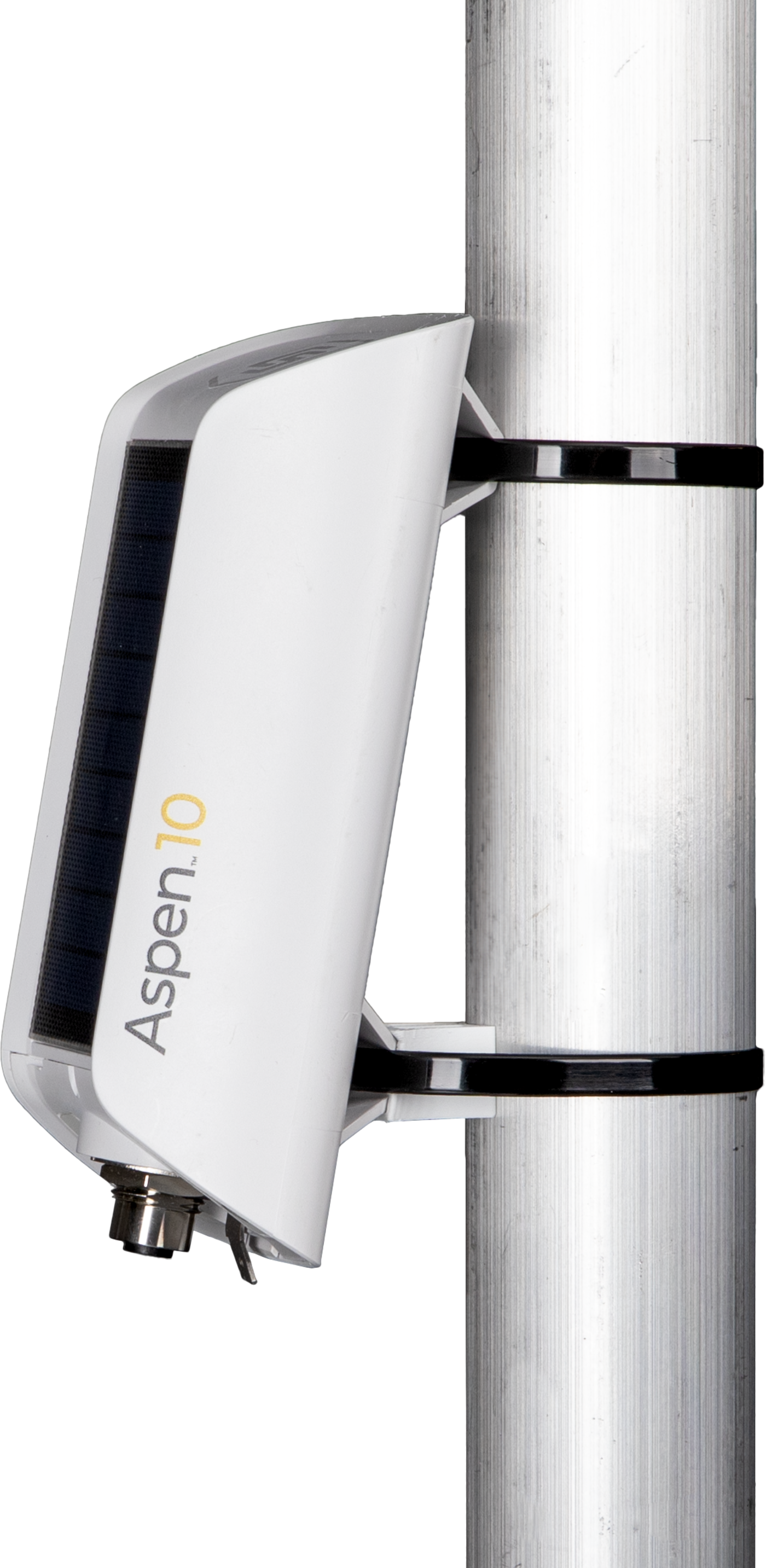

Aspen 10

Edge (IoT) Device for a Single Sensor (Cloud Subscription Required; PN: 40636)

The revolutionary Aspen™10 Internet of Things (IoT) Edge Device allows users to easily connect their environmental sensor to the cloud. It is rugged and durable and may be mounted outdoors without the need for a second enclosure. It has an integrated solar panel and internal rechargeable battery, making the Aspen 10 a truly self-sustaining device.

The Aspen 10 is also small and compact, which makes it easy to install in a variety of locations without disturbing the environment it is monitoring. An integrated IoT cellular modem allows the Aspen 10 to transmit data to the cloud, and a global positioning system (GPS) receiver provides automated installation location.

Setting up the Aspen 10 to read your sensor is quick and easy thanks to a sensor interface technology that allows automatic identification of any sensor with an SDI-12 identification. The Aspen 10 publishes this ID to the cloud, in return receiving a customized measurement configuration and program for your specific sensor and application. You can then monitor your data from anywhere.

The Aspen 10 is a multipurpose, compact, entry-level edge device with a simple plug-and-play interface. Supported sensors measure hydrological, meteorological, environmental, and industrial phenomena. The Aspen 10 is part of the IoT and makes sensor data accessible anywhere via the Aspen 10's compatibility with the MQTT protocol and its integration with CampbellCloud™. The Aspen 10 provides maintenance-free sensor power and automates cellular connectivity, data storage, and data forwarding to CampbellCloud, where users can both visualize their data and manage API access.

The Aspen 10 is similar to a full Campbell Scientific system and comprises a data logger, wiring terminals, enclosure, solar panel, charge regulator, battery, modem, and antenna—all in one small package.

Compatible sensors are cabled using an eight-pin M12 connector. A detect pin lets the Aspen 10 know that it has connected to a sensor with an SDI-12 capability of self-identification. After identifying the sensor, the Aspen 10 connects to CampbellCloud to retrieve the appropriate configuration and program for that sensor, which enable the edge device to power the sensor appropriately and make accurate analog or digital measurements.

A free app, CampbellGo, enables secure NFC/Bluetooth pairing between a phone and the Aspen 10. This greatly simplifies the installation process with real-time sensor readings, diagnostic tools, and data-to-cloud delivery information while you are on-site. This gives you confidence that everything is working from end to end before leaving the installation site.

All of this allows you to collect data from the selected sensor in the location you need from practically anywhere on the globe.
