28995

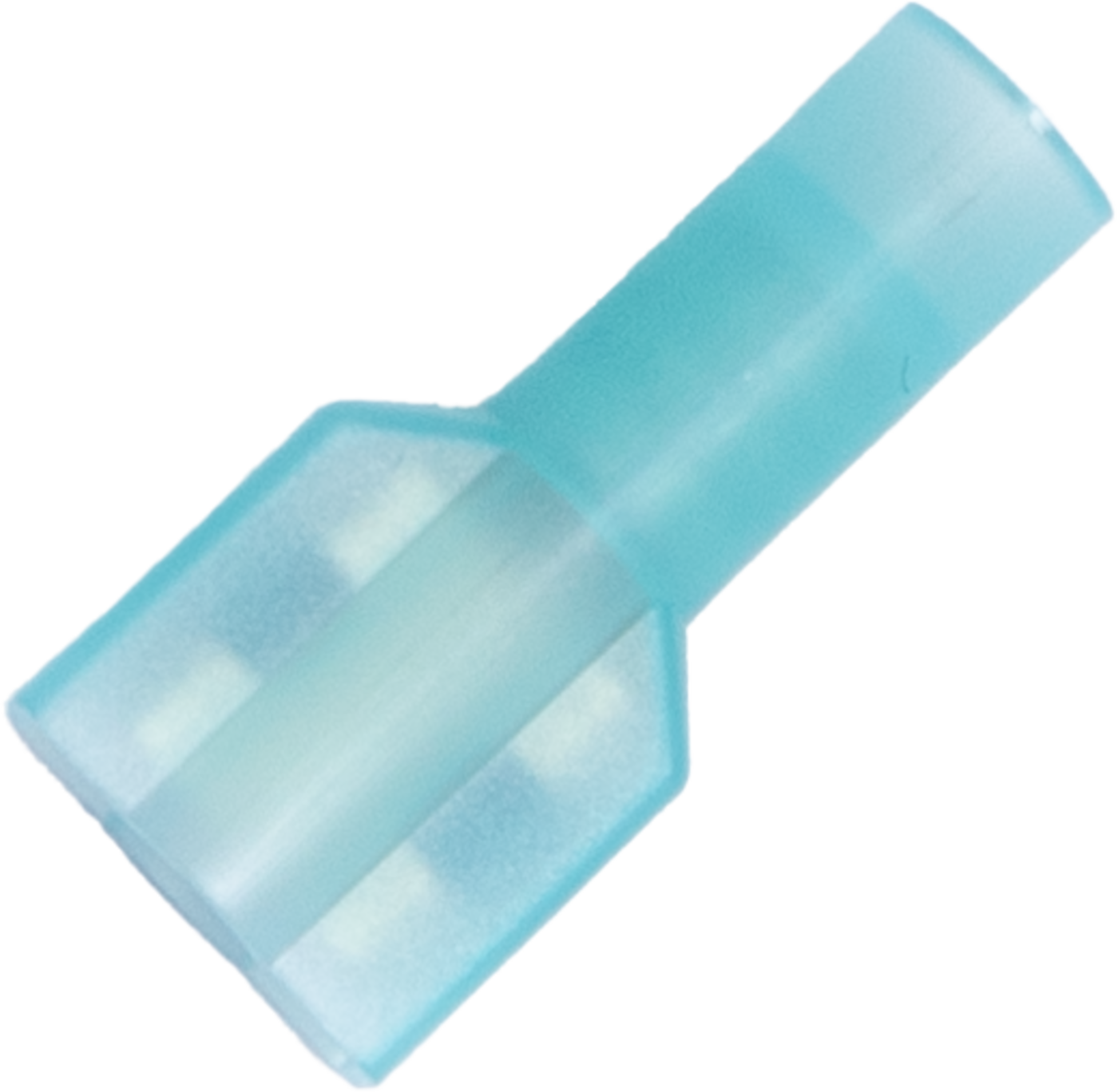

Blue, Fully Insulated, Quick-Disconnect Socket-Lug Connector
28995
OrderableBlue, Fully Insulated, Quick-Disconnect Socket-Lug Connector
Overview
CON LUG Quick Disconnect Female 0.250 X 0.032 CRIMP 14-16 AWG Insulated Blue
The 28995 is an insulated push-on grounding lug that is included with the Aspen™10 Edge Device for a Single Sensor. It is used for crimping to a 14 AWG grounding wire and connecting to the Aspen 10 ground spade. The other end of the grounding wire is connected to earth ground, providing a secure ground connection for good analog measurements and surge protection.
Specifications
- Wire Gauge
- 14 to 16 AWG
- Tab Dimensions
- 0.635 x 0.081 x 0.229 cm
(0.250 x 0.032 x 0.090 in.)
- Weight
- 4.54 g
(0.01 lb)
