DIN Rail Terminal Kit with 4 Terminals and 9 Wires
39802
OrderableDIN Rail Terminal Kit with 4 Terminals and 9 Wires
Overview

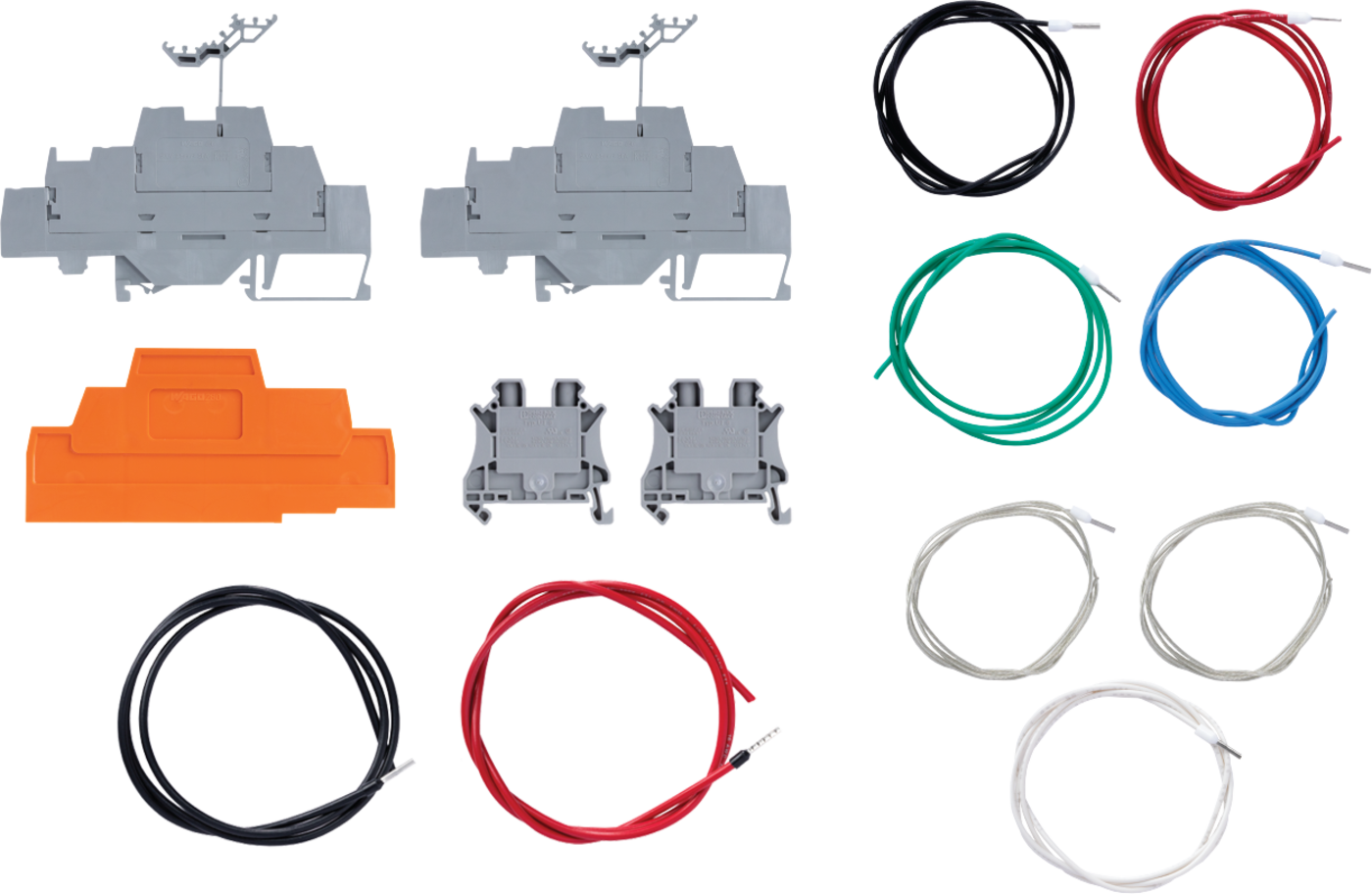

ENC ACC Din Rail Kit Containing 2 21329 Terminals, 2 27480 Terminals, 1 End Cover w/Black, Light Blue, Green, Red, White, 2 Clear, 16 AWG Red, & 16 AWG Black Wires
The 39802 provides the needed DIN rail terminals, separator, and wires to connect any product to a data logger or other peripheral that requires nine wires for connection. This kit provides the following wires: black, red, green, light blue, clear (2), white, 16 AWG black, and 16 AWG red. The color-coding of these wires matches the wire coloring of the product for ease in connection, maintenance, and troubleshooting.
Specifications
- Terminal Connector(s) Included
(pn 21329)
- Terminal Connector(s) Included
(pn 27480)
- Insulator Included
- One
- Color-Coded Wires Included
- Black
- Color-Coded Wires Included
- Red
- Color-Coded Wires Included
- Green
- Color-Coded Wires Included
- Light blue
- Color-Coded Wires Included
- Clear
(quantity of 2)
- Color-Coded Wires Included
- White
- Color-Coded Wires Included
- 16 AWG black
- Color-Coded Wires Included
- 16 AWG red
- Space Required for Use on Mounting Bracket
- 2.26 cm
(0.89 in.)
- Wire Description
- Ferrule on one end and cut on the other end
- Wire Length
- 76.2 cm
(30.0 in.) each
- Weight
- 113.4 g
(0.25 lb)
