27480

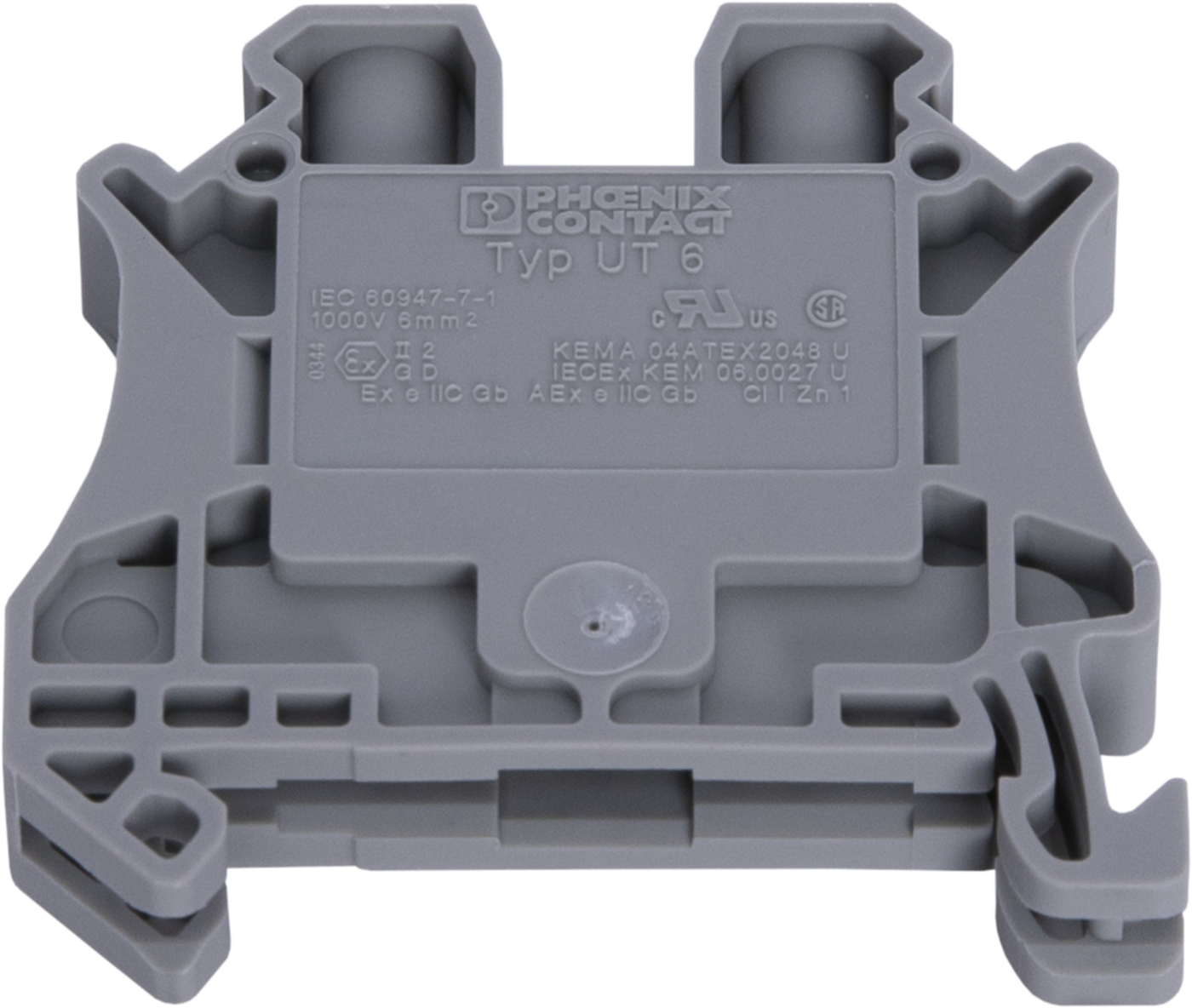

OrderableDIN Rail Mountable 2-Wire 8.2 mm Screw Connector
Overview
CON DIN TRM Screw 2-Trm 1-Lvl 1-Circ 8-24 AWG Gray UT6 PHOENIX 3044131
The 27480 is a DIN rail mountable terminal connector that can be used between sensors (or other devices) and a data logger. The 27480 is a two-wire, 8.2-mm screw connector.
Specifications
- Hardware Type
- Terminal block
- Why/When to Use
- For connecting power into the enclosure or large ground wires from branch circuit.
- Grounded
- No
- Number of Wires
- 2 (24 to 8 AWG)
- Connection Method
- Screw
- Maximum Ferrule Size
- 8 AWG
- Mounting Width
- 8.2 mm
- Dimensions
- 4.78 x 5.08 x 0.97 cm
(1.88 x 2.0 x 0.38 in.)
- Weight
- 13.61 g
(0.03 lb)
