21329
OrderableDIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector
Overview
CON DIN TRM Spring 6-Trm 3-Lvl 3-Circ 12-28 AWG Gray WAGO 280-549

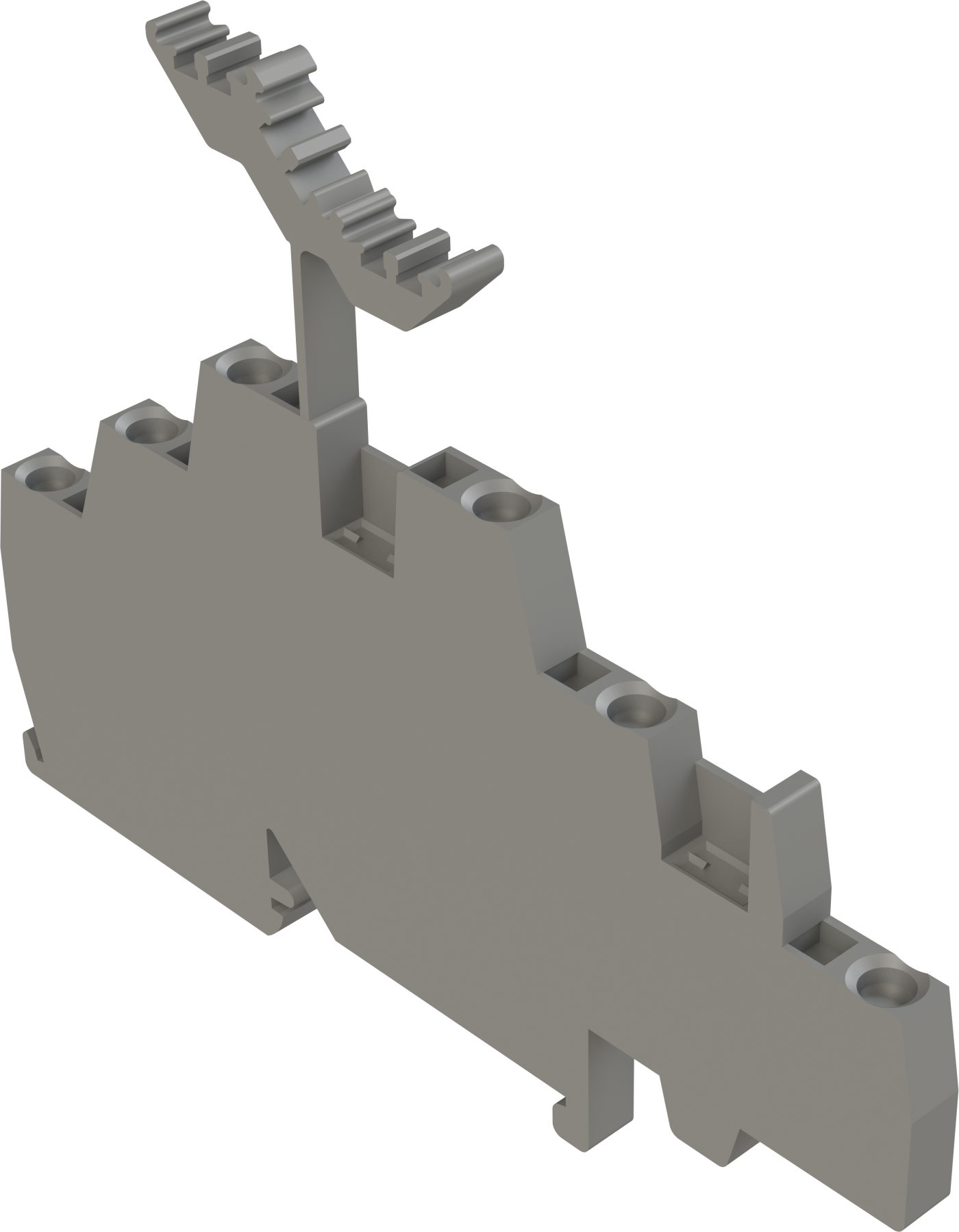

The 21329 is a DIN rail mountable terminal connector that can be used between sensors (or other devices) and a data logger. The 21329 is a six-wire, 5-mm spring-loaded three-tier connector. An 8125 flat-bladed screwdriver is used to open the spring-cages for wire entry.
Specifications
- Hardware Type
- Terminal block
- Why/When to Use
- Sensor connections; tiers allow multiple connections to be stacked to save horizontal space inside enclosure.
- Grounded
- No
- Number of Wires
- 6 (28 to 12 AWG)
- Connection Method
- Spring clamp
- Maximum Ferrule Size
- 18 AWG
- Manufacturer's Model Name
- Triple-deck through terminal block; DIN rail 35 x 15; gray
- Mounting Width
- 5.0 mm
(0.2 in.)
- Dimensions
- 10.16 x 7.95 x 0.58 cm
(4.0 x 3.13 x 0.23 in.)
- Weight
- 18.14 g
(0.04 lb)
Accessories
(5)21333
End Cap and Separator for 21329 or 21330 DIN-Rail Connector
Orderable21331

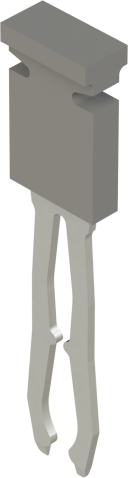

Vertical Jumper for 21329 or 21330 DIN-Rail Connector
Orderable15909
Horizontal Jumper for DIN Rail Connector
Orderable22190

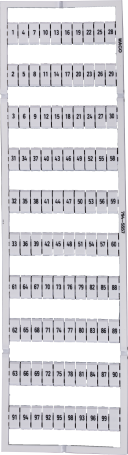

DIN-Rail Connector Number Block Label 1 to 99 for 15920, 21329, or 21330
Orderable30405
DIN-Rail Connector Number Block Label 100 to 199 for 15920, 21329, or 21330
Retired
