39801

Name: 39801
Brand: Campbell Scientific
SKU: 39801
Availability: InStock

DIN Rail Terminal Kit with 5 Terminals and 8 Wires

39801

Orderable

DIN Rail Terminal Kit with 5 Terminals and 8 Wires

Pricing

Qty

Model:: 39801
Item Number:: 39801
Lead time:: 21 days

Overview

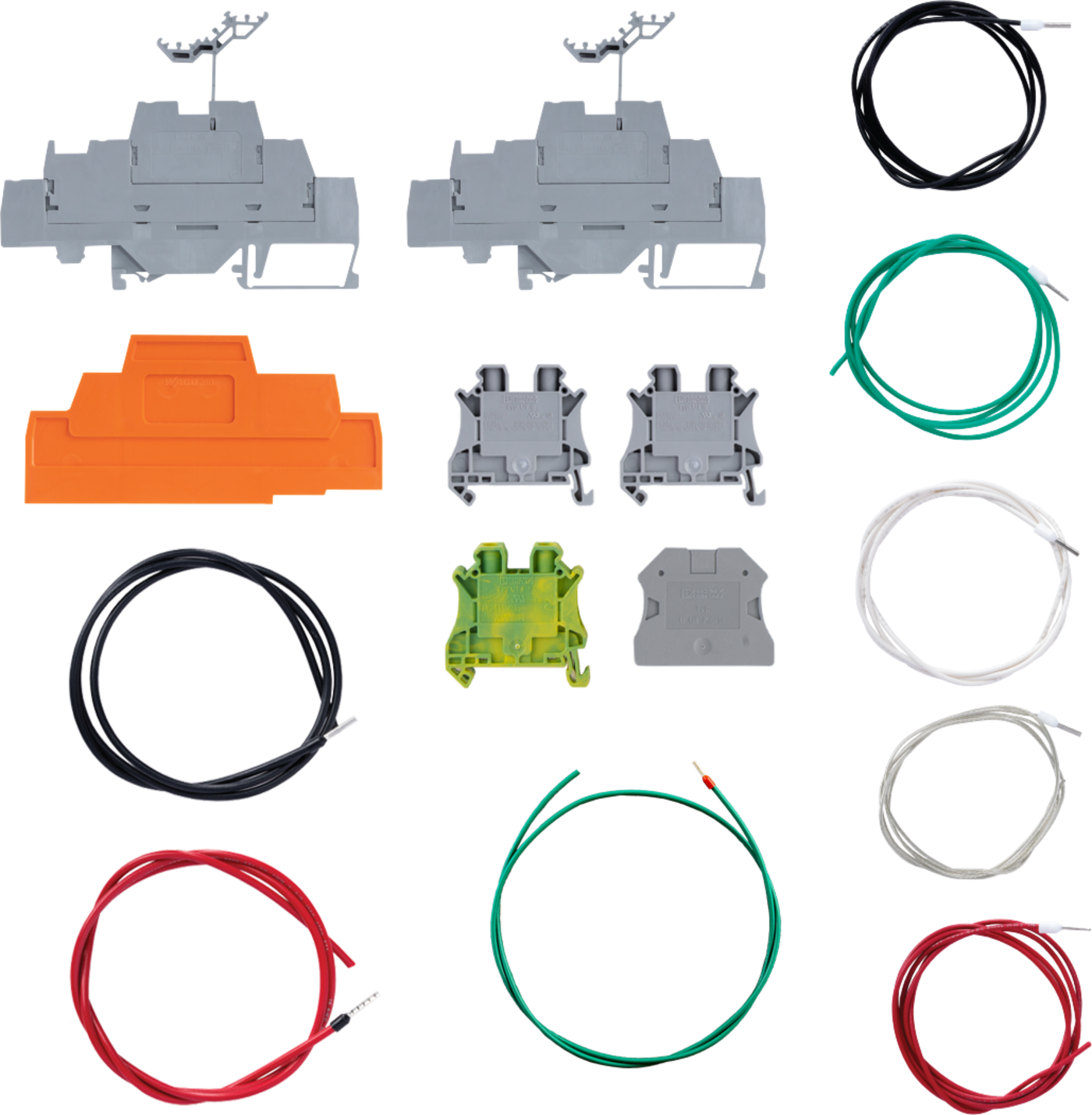

ENC ACC Din Rail Kit Containing 3 21329 Terminals, 1 End Cover w/2 Black, 2 White, 2 Clear, Green, & Red Wires

The 39801 provides the needed DIN rail terminals, separator, and wires to connect any product to a data logger or other peripheral that requires eight wires for connection. This kit provides the following wires: black (2), green (2), red (2), white, and clear. The color-coding of these wires matches the wire coloring of the product for ease in connection, maintenance, and troubleshooting.

Specifications

Terminal Connector(s) Included: Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector
(pn 21329)
Terminal Connector(s) Included: Two DIN Rail Mountable 2-Wire 8.2 mm Screw Connector
(pn 27480)
Terminal Connector(s) Included: One DIN Rail Mountable 2-Wire 8.2 mm Grounded Screw Connector
(pn 27481)
Insulator Included: One
Color-Coded Wires Included: Black
(quantity of 2)
Color-Coded Wires Included: Green
(quantity of 2)
Color-Coded Wires Included: Red
(quantity of 2)
Color-Coded Wires Included: White
Color-Coded Wires Included: Clear
Space Required for Use on Mounting Bracket: 1.75 cm
(0.69 in.)
Wire Description: Ferrule on one end and cut on the other end
Wire Length: 76.2 cm
(30.0 in.) each
Weight: 68.04 g
(0.15 lb)
