39598

DIN Rail Terminal Kit with 3 Terminals and 5 Wires
39598

39598

Orderable

DIN Rail Terminal Kit with 3 Terminals and 5 Wires

Model:
39598
Item Number:
39598
Warranty:
1 year
Lead time:
21 days

Overview

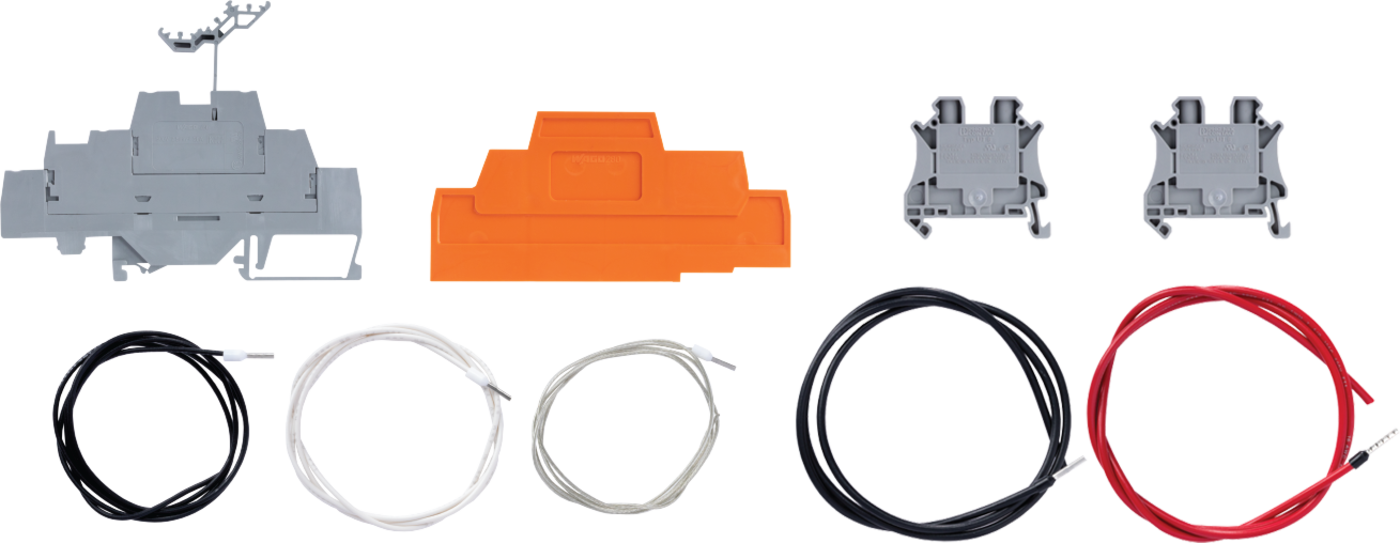

ENC ACC Din Rail Kit Containing 1 21329 Terminal, 2 27480 Terminal, 1 End Cover w/22 AWG Black, White & Clear, 16 AWG Red, & Black Wires

This kit is typically used for power supplies, smaller solar panels, or other power sources. It provides the needed DIN rail terminals, separator, and wires to connect any product to a data logger or other peripheral that requires five wires for connection. This kit provides the following wires: 22 AWG black, 22 AWG white, 22 AWG clear, 16 AWG black, and 16 AWG red. The color-coding of these wires matches the wire coloring of the product for ease in connection, maintenance, and troubleshooting.

Specifications

Terminal Connector(s) Included

(pn 21329)

Terminal Connector(s) Included

(pn 27480)

Insulator Included
One
Color-Coded Wires Included
22 AWG black
Color-Coded Wires Included
22 AWG white
Color-Coded Wires Included
22 AWG clear
Color-Coded Wires Included
16 AWG black
Color-Coded Wires Included
16 AWG red
Space Required for Use on Mounting Bracket
1.84 cm

(0.71 in.)

Wire Description
Ferrule on one end and cut on the other end
Wire Length
76.2 cm

(30.0 in.) each

Weight
113.44 g

(0.25 lb)
