034B-L

Wind Set
034B-L

034B-L

RetiredConfigurable

Wind Set

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
034B-L
Item Number:
15797
Warranty:
1 year
Lead time:
22 days
Compliance:
requires CM220 or 17953

Overview

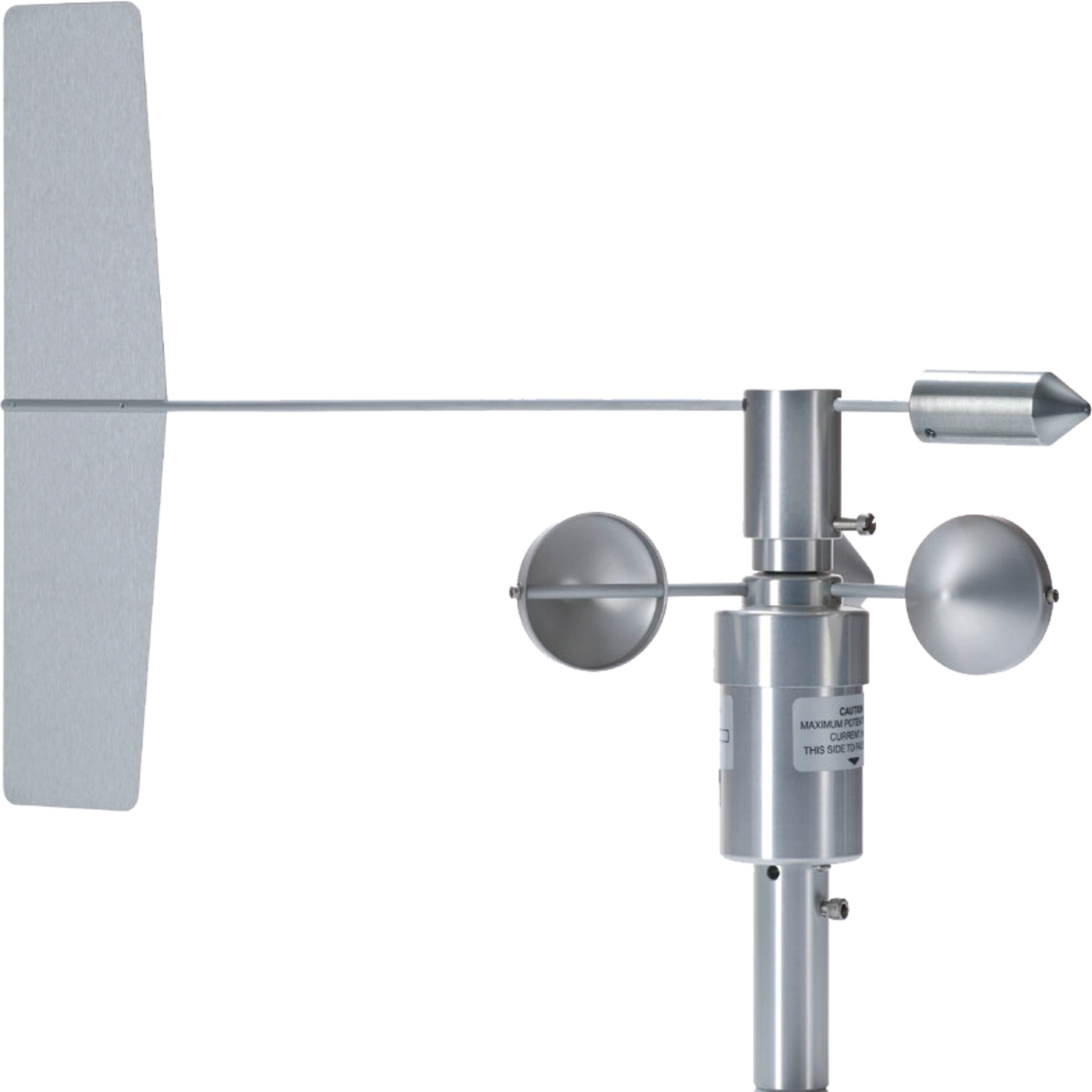

034B-L Met One Wind Set

The 034B, manufactured by Met One, combines a three-cup anemometer and vane into a single integrated package to measure wind speed and direction. It is cabled for use with our data loggers, and it can provide you with measurements for a variety of applications.

Key Advantages

Reliable, Accurate Wind Measurements
Compatible with most Campbell Scientific data loggers

Technical Description

The 034B monitors wind speed using a three-cup anemometer that contains a sealed magnetic reed switch. Rotation of the cup wheel produces a pulse that is directly proportional to wind speed. The frequency of the pulse is measured by the data logger pulse count channel, then converted to engineering units (mph, m/s, knots).

Wind direction is sensed with a potentiometer. With the precision excitation voltage from the data logger applied to the potentiometer element, the output signal is an analog voltage that is directly proportional to the azimuth of the wind direction.

Benefits

  • Designed for continuous, long-term, unattended operation in adverse conditions
  • Constructed of lightweight aluminum

Specifications

Applications
General

(Rain with light snow. Little or now riming or blowing sand. No salt spray.)

Sensor
3-cup anemometer and vane
Measurement Description
Wind speed and direction
Operating Temperature Range
-30° to +70°C
Weight
907 g

(2.0 lb)

Wind Speed (Anemometer)

Range
0 to 75 m/s

(0 to 167 mph)

Starting Threshold
0.4 m/s

(0.9 mph)

Sensor Output
Pulsed contact closure
Accuracy
0.1 m/s

(0.25 mph) at < 10.14 m/s (22.7 mph)

Accuracy
±1.1% of true

at > 10.14 m/s (22.7 mph)

Resolution
(0.7998 m s–1) / (scan rate in seconds)

or (1.789 mph) / (scan rate in seconds)

Anemometer Radius
10.7 cm

(4.2 in.)

Anemometer Height
24.4 cm

(9.6 in.)

Output Signal
Contact closure

(reed switch)

Wind Direction (Vane)

Mechanical Range
360°
Electrical Range
356°

(4° open)

Accuracy
±4°
Damping Ratio
0.25
Resolution
< 0.5°
Potentiometer Resistance
0 to 10 kΩ

(open at crossover)

Threshold
0.4 m s–1

(0.9 mph)

Vane Length
33.5 cm

(13.2 in.)
