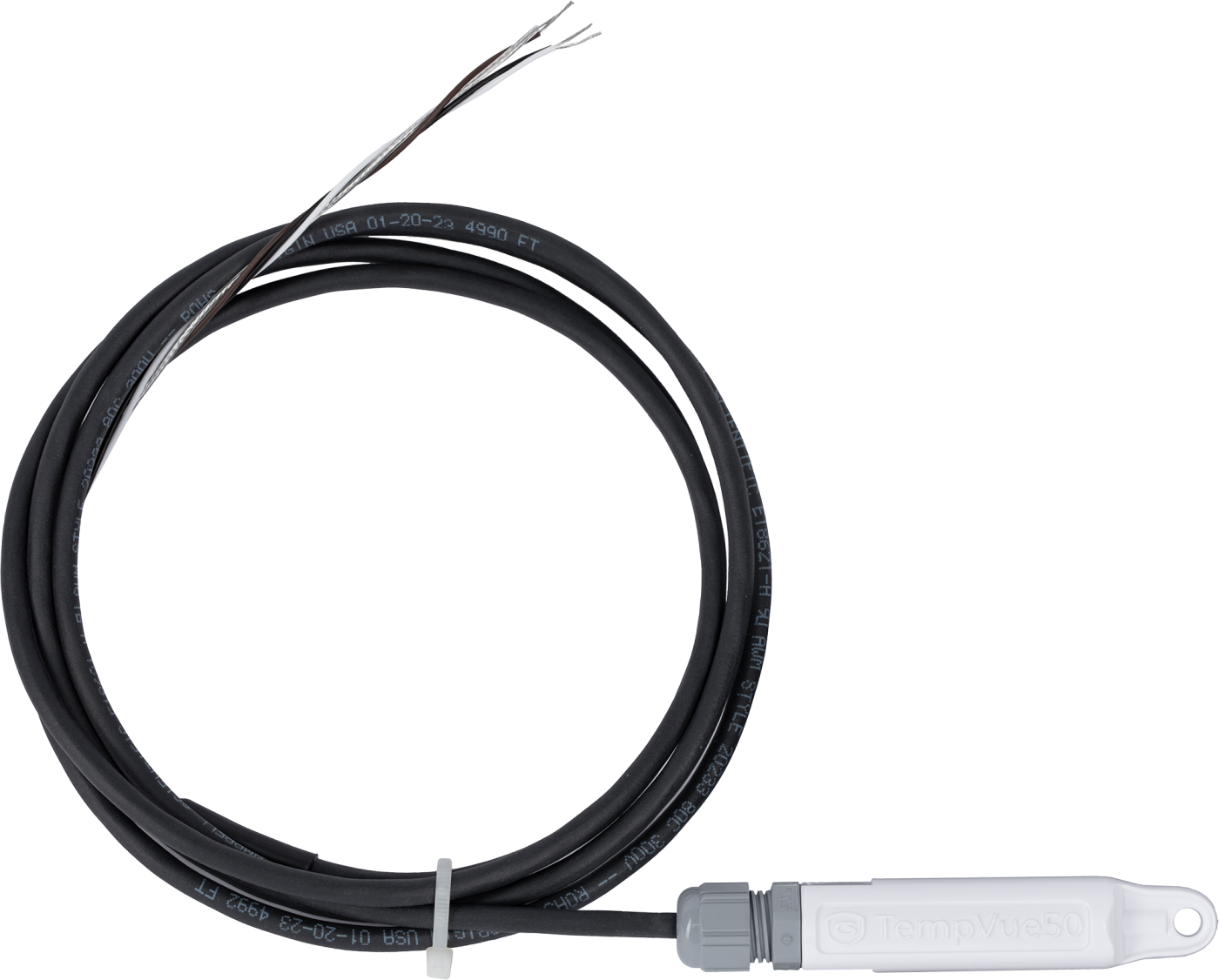

TempVue 50
TempVue 50
OrderableConfigurableSDI-12 Digital Water Temperature Sensor
A TempVue sensor that is submersible for water and soil temperature measurements.
Pricing
Configuration
Sign in for option pricing- w/Aspen Ext Cable w/10m (33ft) per Sensor-ST
- w/Ferrules on Wires w/10m (33ft) per Sensor-ST
- w/Aspen Ext Cable w/20m (66ft) per Sensor-ST
- w/Ferrules on Wires w/20m (66ft) per Sensor-ST
- w/Aspen Ext Cable w/30m (100ft) per Sensor-ST
- w/Ferrules on Wires w/30m (100ft) per Sensor-ST
Select a configuration to add to your quote
- Model:
- TempVue 50
- Item Number:
- 45200
- Warranty:
- 2 years
- Lead time:
- 21 days
Overview
The TempVue™50 is a high-precision digital water and soil temperature sensor that extends the high performance of the TempVue product line into the water. The TempVue 50 is a rugged and reliable sensor that exceeds United States Geological Survey (USGS) Office of Surface Water (OSW) specifications. The sensor is also plug-and-play with the Aspen ecosystem of Internet of Things (IoT) edge devices.
This featured product was part of the Aconcagua expedition to install a weather station on South America’s tallest peak. Learn more about the expedition on our Extreme Application Series: Aconcagua page.
Key Advantages
For years of scientific-grade water and soil temperature measurements
Technical Description
The TempVue 50 is a fully digital water temperature sensor that uses the latest silicon bandgap technology to provide the market's highest level of accuracy and repeatability. The all-digital design minimizes self-heating, reduces complexity, and can be used to measure scientific-grade temperatures in both water and soil. The measurement electronics are surge protected and environmentally sealed with a fully encapsulated Delrin™ housing to provide years of reliable measurements in all environments.
Benefits
- Submersible and watertight sensor and cable
- Highly accurate silicon sensor providing reliable and stable measurements in all conditions
- Strong anchor loop to pull through conduit or secure to weights
- Calibration certificate provided
- Simplified installation and programming with SDI-12 outputs
- Calibration information stored within the sensor and automatically applied to raw values to eliminate the need for coefficient calculations
- Intelligent, digital sensor offering less complex wiring and fewer data logger channels
- Compatible with all SDI-12 data loggers
Specifications
- Sensor Description
- Digital silicon bandgap
- Time Constant in Air
- 35 s
(1 tau)
- Measurement Interval
- > 15 s
(recommended)
- Temperature Range
- -40° to +60°C
- Measurement Uncertainty
- 0.1°C
(-10° to +60°C)
- Temperature Resolution
- 0.01°C
- Housing Material
- Acetal homopolymer
(Delrin 500P)
- Maximum Submergence
- 30 m
(98.4 ft) depth
- Recommended Recalibration Interval
- 1 y
- Diameter
- 17 mm
(0.67 in.)
- Length
- 95 mm
(3.74 in.)
Power
- Average Current
- 150 µA
- Active Current
- < 3 mA
- Input Voltage
- 6 to 16 V
Communications
- SDI-12 Version
- 1.4
- SDI-12 Address
- 0
(default)
Cable
- -NOTE-
- This device is capable of fitting through a standard 2.5 cm (1 in.) conduit with a 20.3 cm (8 in.) factory bend.
- Jacket Material
- Watertight, UV-resistant, 1.1 mm (0.045 in.) polyurethane
- Maximum Cable Length
- 150 m
(492.1 ft)
- Maximum Pull Strength (Load)
- 450 N
(100 lb)
- Maximum Weight Load
- 2.25 kg
(4.96 lb)
