TCMINI
TCMINI
OrderableConfigurableThermocouple Probe
Pricing
Configuration
Sign in for option pricing- Bead Tip, 3m (10ft) PVC SLETCMINI-T-B10
- Bead Tip,10m (33ft) PVC SLETCMINI-T-B33
- Bag of 10 JacksTCMINI-T-J10
- Bag of 10 PlugsTCMINI-T-P10
- 30m (100ft) PVC Wire 24 AWG SLE w/o ConnectorsTCMINI-T-W100
Select a configuration to add to your quote
- Model:
- TCMINI
- Item Number:
- TCMINI
- Warranty:
- None
- Lead time:
- 21 days
Overview

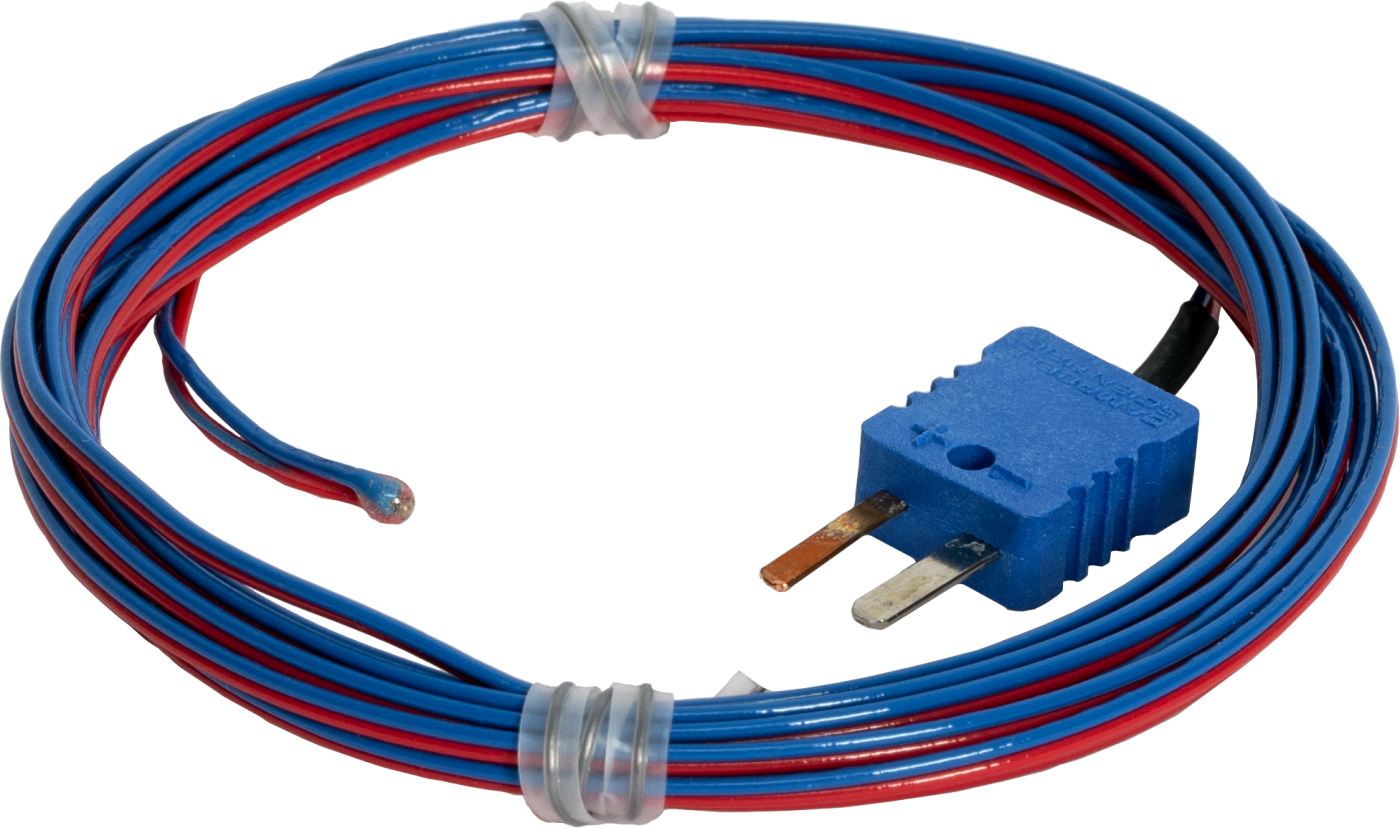

The TCMINI is a collection of thermocouple probes and components that use a standard miniature TC connector to provide a complete thermocouple data-acquisition system. The TCMINI includes basic probe styles and lengths in a common thermocouple type. It also includes bulk wire and connectors for user assembly of probes and extensions.
Note: The Type K thermocouple is no longer available from Campbell Scientific.
Technical Description
The TCMINI is a collection of Type T thermocouple probes and components that use standard miniature thermocouple connectors. These products are compatible with the TEMP 120 thermocouple module and facilitate a complete, reliable, and easy-to-use thermocouple data-acquisition system. Pre-built sensors are available in common lengths. Complete customization is possible by purchasing bulk thermocouple cable and connectors.
Benefits
- Customized connector with Campbell Scientific branding
- “Special Limits of Error” tolerances on accuracy to match the exceptional accuracy and temperature stability of the <a href="https://www.campbellsci.com/temp120">TEMP 120</a>
- Fixed lengths, custom lengths, and raw components available to facilitate all applications
- Ensures a quality single source for TC measurement equipment when using the TEMP 120
- Isolated thermocouple junction for measurement integrity in all applications
- 24 AWG flexible PVC wire for easy routing in space-limited applications
- Resistant to moisture, chemicals, and abrasions
- Suitable for laboratory, test stand, and automotive applications
Specifications
- Operating Temperature Range
- -55° to +105°C
- Continuous Use Temperature
- 105°C
(220°F)
- Wire Type
- 24 AWG flexible PVC "ripcord"
- Wire Type
- Fully color-coded conductors; individually insulated
- Nominal Conductor Size
- 0.508 mm
(0.02 in.)
- Nominal Conductor Insulation Thickness
- 0.381 mm
(0.015 in.)
- Nominal Overall Size
- 1.27 x 2.44 mm
(0.05 x 0.096 in.)
- Shipping Weight
- ~7.5 kg/km
(5 lb/1,000 ft)
