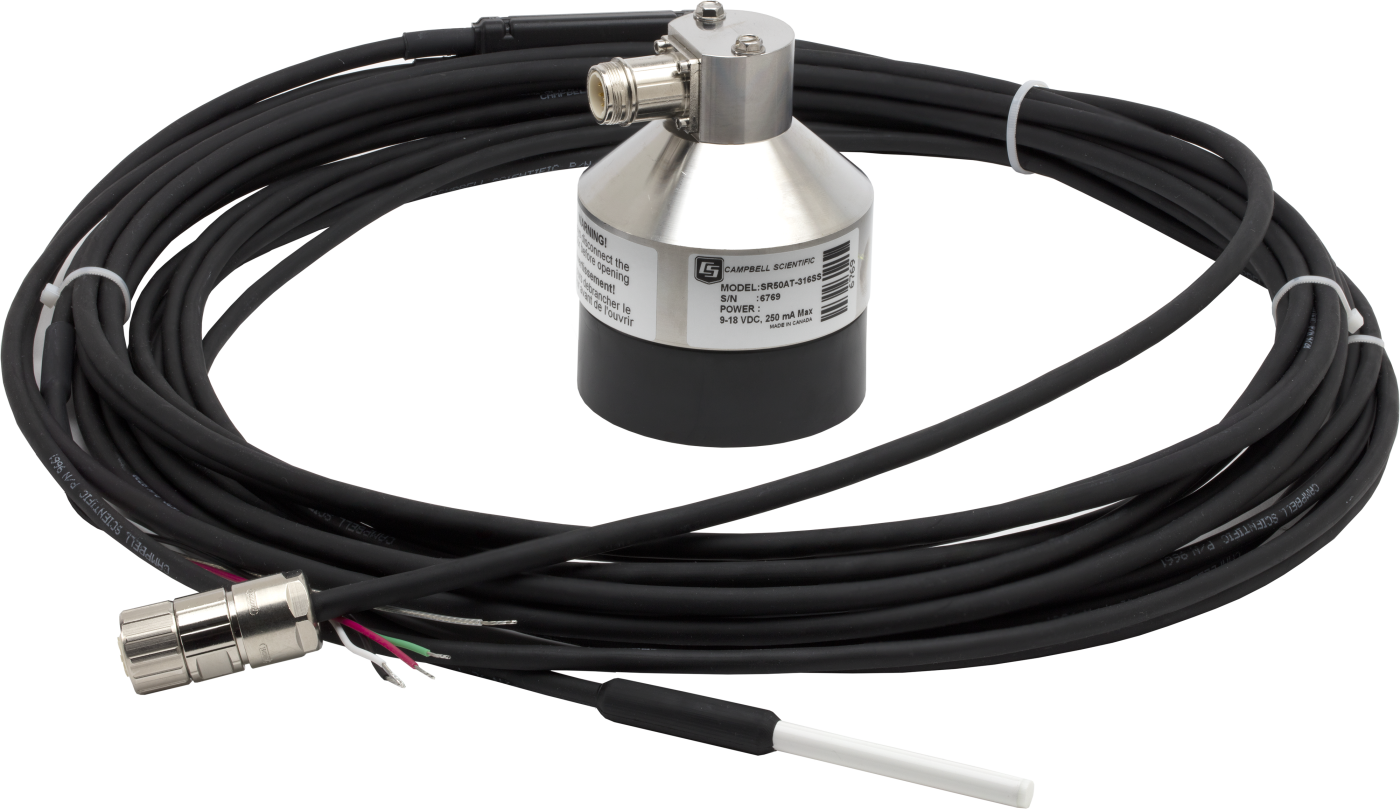

SR50AT-316SS-L

Stainless-Steel Sonic Distance Sensor for Marine Environments with Temperature Sensor
SR50AT-316SS-L

SR50AT-316SS-L

RetiredConfigurable

Stainless-Steel Sonic Distance Sensor for Marine Environments with Temperature Sensor

Snow depth sensor for corrosive environments with an external air temperature sensor integrated for temperature compensation.

Pricing

Sign in for pricing
Model:
SR50AT-316SS-L
Item Number:
29020
Warranty:
2 years
Lead time:
14 days

Overview

SR50AT-316SS-L SR50AT-316SS-L STAINLESS STEEL SONIC RANGING SENSOR w/TEMPERATURE FOR MARINE ENVIRONMENTS

The SR50AT-316SS is a stainless-steel version of Campbell Scientific's acoustic sensor for measuring the distance from the sensor to a target. The stainless-steel chassis allows for operation in environments where corrosion is a concern (that is, marine). It is typically used to measure snow depth, but it is well-suited for other uses.

The SR50AT-316SS includes an external temperature sensor and outputs a temperature-corrected distance reading, eliminating the need for further post-processing.  This sensor is compatible with most Campbell Scientific data loggers.

Key Advantages

Corrosion-resistant Chassis and Transducer

Technical Description

The SR50AT-316SS was designed to meet the stringent requirements of measuring depths and uses a multiple echo processing algorithm to help ensure measurement reliability.

SDI-12, RS-232, and RS-485 output options are available for measuring the SR50AT-316SS. Campbell Scientific’s MD485 interface can be used to connect one or more SR50AT-316SS sensors in RS-485 mode to an RS-232 device. This can be useful for sensors that require lead lengths that exceed the limits of either RS-232 or SDI-12 communications. The SR50ATH is available with a heater option for locations where rime ice is a problem.

The SR50A replaced the SR50 in March 2007. The newer SR50A is smaller and has different output options than its predecessor.

Benefits

  • Integrated temperature probe for providing temperature correction of measurements
  • Non-contact method for determining snow depth
  • Wide operating temperature range
  • Designed for marine or corrosive environments
  • User-selectable options for output
  • Uses a multiple echo processing algorithm to help ensure measurement reliability
  • Compatible with most Campbell Scientific data loggers

Specifications

Measurement Time
< 1.0 s
Output Options
SDI-12 version 1.3, RS-232, RS-485

(output options selected by configuring internal jumpers)

Baud Rates
1200 to 38400 bps

(RS-232, RS-485 modes)

Power Requirements
9 to 18 Vdc

(typically powered by data logger’s 12 Vdc power supply)

Measurement Range
0.5 to 10 m

(1.6 to 32.8 ft)

Beam Acceptance
~30°
Resolution
0.25 mm

(0.01 in.)

Accuracy
±1 cm (0.4 in.) or 0.4% of distance to target (whichever is greatest).

Requires external temperature compensation.

Operating Temperature Range
-45° to +50°C
Compliance
CE Compliant
Temperature Accuracy
±0.2°C

(at 0° to +50°C)

Temperature Accuracy
±0.75°C

(at -45° to 0°C)

Diameter
7.5 cm

(3 in.)

Length
10.1 cm

(4.0 in.)

Weight
795 g

(28 oz) without cable

Cable Weight
250 g

(8.2 oz) for a 4.57-m (15-ft) cable

Power Consumption

Active
250 mA

(typical)

Quiescent SDI-12 Mode
< 1.0 mA
Quiescent RS-232/RS-485 Modes
< 1.25 mA

(≤ 9600 bps)

Quiescent RS-232/RS-485 Modes
< 2.0 mA

(> 9600 bps)

Maximum Cable Length

-NOTE-
Cable lengths greater than 60 m require a heavier gage wire if the power supply drops below 11 Vdc.
SDI-12
60 m

(200 ft)

RS-232
60 m

(200 ft) Baud rates ≤ 9600 bps

RS-485
300 m

(984 ft)
