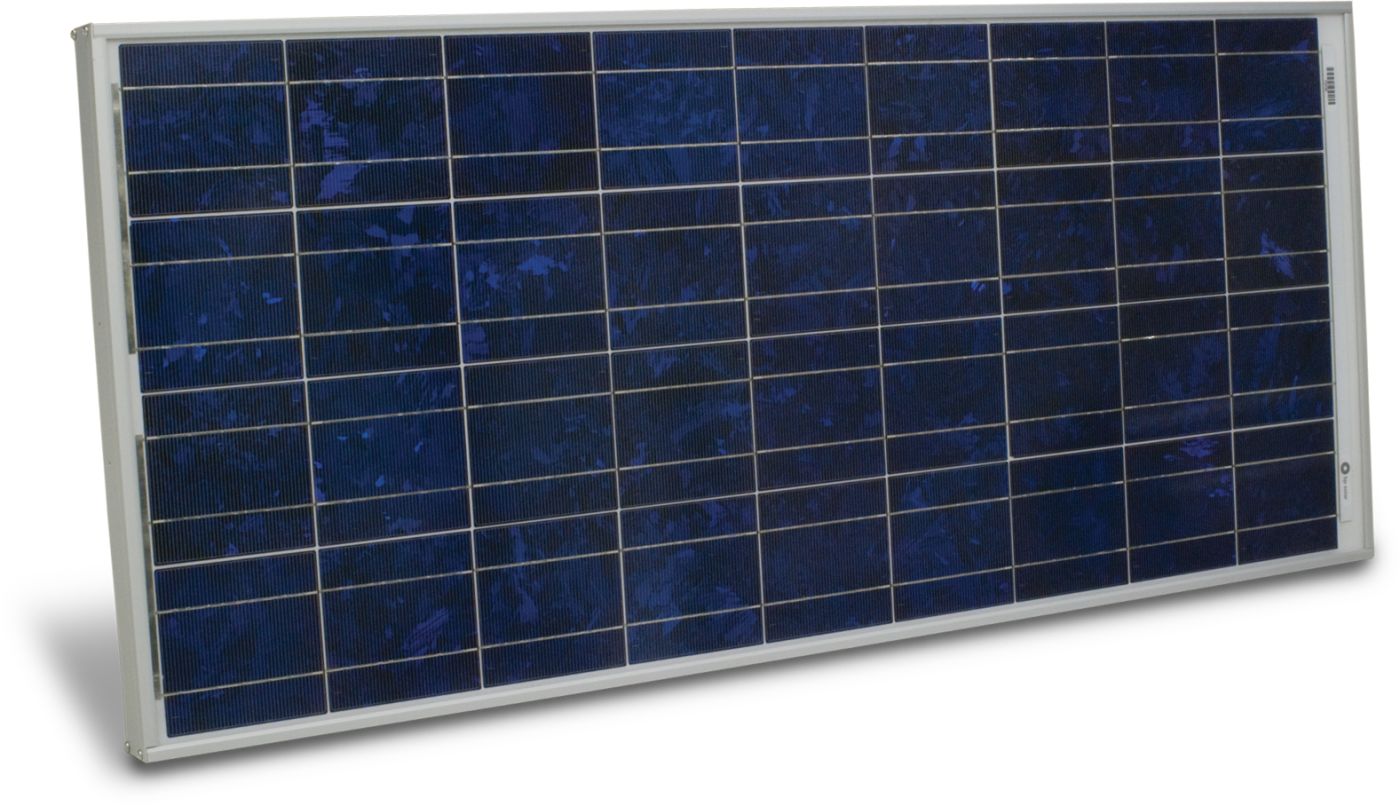

SP85-L
SP85-L
End of lifeConfigurable85 W Solar Panel
Pricing
- Model:
- SP85-L
- Item Number:
- SP85-L
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview
The SP85-L is a 85 W solar panel used in systems with large power requirements. It recharges 12 V flooded batteries. Its cable length is user-specified, and the SP85 allows unattended operation of systems in remote locations, far from ac electrical sources.
Key Advantages
Useful at sites far
from ac sources
Technical Description
The SP85's mounting hardware provides two sets of U-bolts and nuts. One set contains the pn 17492 U-bolt that provides a 2.125" (5.398 cm) space between the U-bolt legs. It is used to mount the solar panel to a 0.75" to 1.5" IPS pipe (1" to 2" OD). The other set contains the pn 17446 U-bolts and matching nuts. The 17446 is used to attach the solar panel to a tower's legs. The 17446 provides a 1.5" (3.8 cm) space between the U-bolt legs.
One SP85 can be connected to the SOLAR charge input of the CH200 or 18529 SunSaver regulator to provide a peak charge of 85 W. Two SP85 solar panels can be wired in parallel to the charge inputs of the SunSaver 18529 regulator to provide a peak charge of 170 W.
Benefits
- Supplies electrical power in locations where ac power is unreliable, expensive, or not available
Specifications
- -NOTE-
- Solar panel characteristics assume 1 kW m-2 illumination and 25°C solar panel temperature.
Individual panels may vary up to 10%. The output panel voltage increases as the panel temperature decreases.
- Peak Power
- 85 W
(170-W peak power when two SP85s are connected to one 18529 regulator)
- Current at Peak
- 4.8 A
- Voltage at Peak
- 17.8 V
- Dimensions
- 120.9 x 53.7 x 5.0 cm
(47.6 x 21.1 x 2.0 in.)
- Weight
- 7.7 kg
(17.0 lb)
