39107

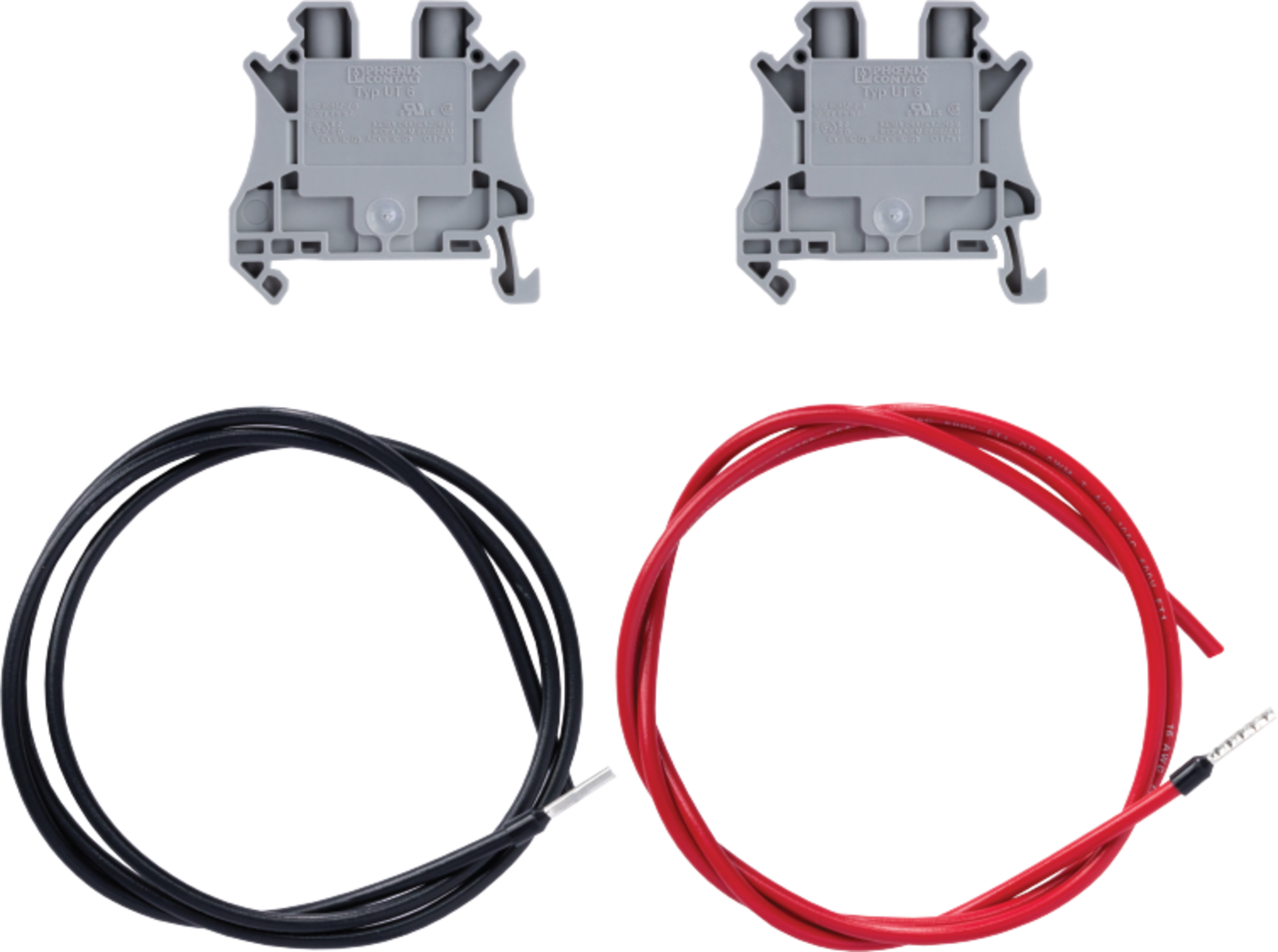

DIN Rail Terminal Kit with 2 Terminals and 2 Wires
39107
OrderableDIN Rail Terminal Kit with 2 Terminals and 2 Wires
Overview
ENC ACC Din Rail Terminal Kit for Power Containing 2 of 27480 Terminals w/16 AWG Red & Black Wires
This kit is typically used for power supplies, smaller solar panels, or other power sources. The 39107 provides the needed DIN rail terminals and wires to connect any product to a data logger or other peripheral that requires two wires for connection. This kit provides the following 16 AWG wires: black and red. The color-coding of these wires matches the wire coloring of the product for ease in connection, maintenance, and troubleshooting.
Specifications
- Terminal Connector(s) Included
(pn 27480)
- Insulator Included
- One
- Color-Coded Wires Included
- 16 AWG black
- Color-Coded Wires Included
- 16 AWG red
- Space Required for Use on Mounting Bracket
- 1.04 cm
(0.41 in.)
- Wire Description
- Ferrule on one end and cut on the other end
- Wire Length
- 76.2 cm
(30.0 in.) each
- Weight
- 68.04 g
(0.15 lb)
