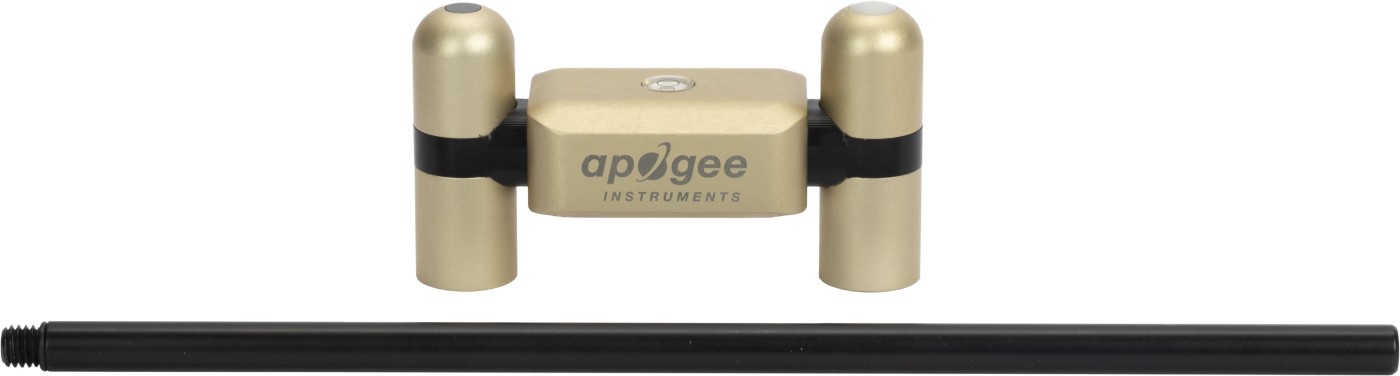

SN500SS
SN500SS
OrderableConfigurableGSANet Radiometer
Digital, low-cost, 4-component net radiometer.
Pricing
- Model:
- SN500SS
- Item Number:
- 34831
- Warranty:
- 4 years
- Lead time:
- 14 days
Overview
This four-component net radiometer, manufactured by Apogee Instruments, provides individual measurement of net radiation components. This sensor features an SDI-12 output, eliminating the need for multiple analog channels to measure the individual components of net radiation. The SN500SS offers a complete package that includes a net radiometer, mounting rod, pigtail lead cable for data logger interface, and a carrying case.
Key Advantages
Specifications
- Sensor
- Two thermopile pyranometers, two pyrgeometers
- Measurement Description
- Measures incoming and outgoing short-wave and long-wave radiation
- Heater
- 62 mA current drain and 740 mW power requirement at 12 Vdc
- Operating Temperature Range
- -50° to +80°C and 0 to 100% humidity
- Response Time
- 1 s
(SDI-12 data transfer rate; detector response times are 0.5 s)
- Heater Current Drain
- 63 mA
(heaters on; communication enabled)
- Heater Current Drain
- 1.5 mA
(heaters off; communication enabled)
- Heater Current Drain
- 0.6 mA
(heaters off; communication disabled)
- Dimensions
- 11.6 x 4.5 x 6.6 cm
(4.6 x 1.8 x 2.6 in.)
- Weight
- 320 g
(11.29 oz) with mounting rod and 5 m (16.4 ft) of lead wire
Pyranometer
- Spectral Range
- 385 to 2105 nm
(upward-looking)
- Spectral Range
- 295 to 2685 nm
(downward-looking)
- Sensitivity
- 0.057 mV per W/m2
(upward-looking)
- Sensitivity
- 0.15 mV per W/m2
(downward-looking)
- Expected Output Range
- 0 to 114 mV
(upward-looking)
- Expected Output Range
- 0 to 300 mV
(downward-looking)
Pyrgeometer
- Spectral Range
- 5,000 to 30,000 nm
- Sensitivity
- 0.12 mV per W/m2
- Expected Output Range
- -24 to +24 mV
Accessories
(7)32295
Sensor Mounting Kit for the SN500SS Net Radiometer
OrderableCABLE6PIN-LITE
26 AWG Three-Conductor Cable with M8 Six-Pin V-Coded Pin (Male) Connector
OrderableCABLE6PIN-U
26 AWG Six-Conductor Cable with M8 Six-Pin V-Coded Pin (Male) Connector
OrderableCABLE6T8PIN
26 AWG Six-Conductor Cable with M8 Six-Pin V-Coded Pin (Male) Connector to M12 Eight-Pin A-Coded Pin (Male) Connector
Orderable33815
SDI-12 Terminal Bus Kit
Orderable39115
DIN Rail Terminal Kit with 2 Terminals and 4 Wires
Orderable39642
SDI-12 DIN Rail Terminal Bus Kit without Mounting Bracket
Orderable
