CABLE6T8PIN

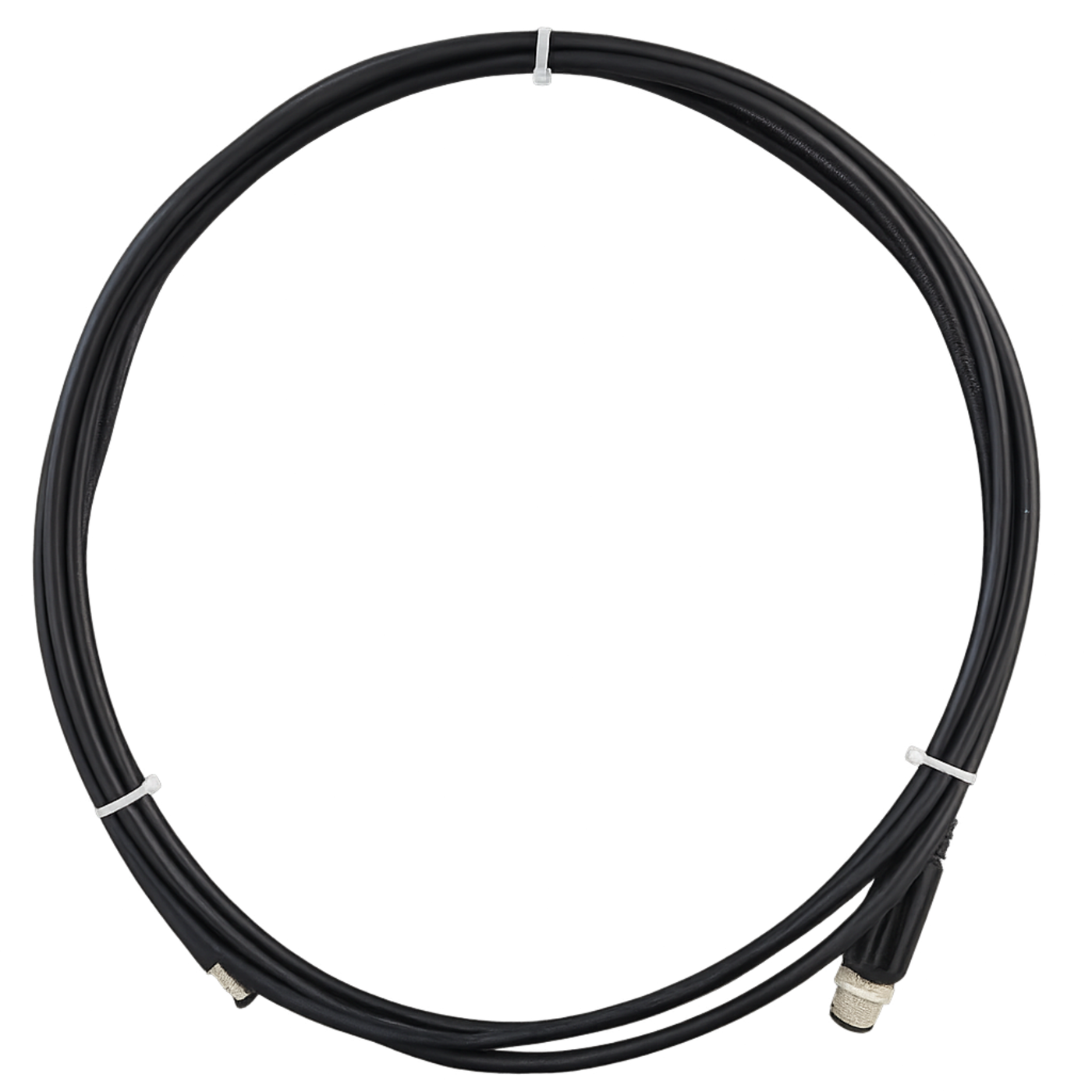

26 AWG Six-Conductor Cable with M8 Six-Pin V-Coded Pin (Male) Connector to M12 Eight-Pin A-Coded Pin (Male) Connector
CABLE6T8PIN
OrderableConfigurable26 AWG Six-Conductor Cable with M8 Six-Pin V-Coded Pin (Male) Connector to M12 Eight-Pin A-Coded Pin (Male) Connector
Pricing
Configuration
Sign in for option pricing- w/3m (10ft) cable -PF w/Ferrules on WiresCS310CBL-3m
- w/5m (17ft) cable -PF w/Ferrules on WiresCS310CBL-5m
- w/10m (33ft) cable -PF w/Ferrules on WiresCS310CBL-10m
- w/15m (50ft) cable -PF w/Ferrules on WiresCS310CBL-15m
Select a configuration to add to your quote
- Model:
- CABLE6T8PIN
- Item Number:
- 45349
- Warranty:
- 2 years
- Lead time:
- 21 days
Overview
26 AWG Six-Conductor Cable with M8 Six-Pin V-Coded Pin (Male) Connector to M12 Eight-Pin A-Coded Pin (Male) Connector
The CABLE6T8PIN is a cable assembly with an M8 six-pin V-coded connector on one end and an M12 eight-pin A-coded connector on the other end. This cable features a durable thermoplastic rubber (TPR) jacket engineered to withstand extreme temperatures (-40° to +80°C), resist UV exposure, and perform reliably in marine and corrosive environments. The six-pin and eight-pin connectors are weatherproof and suitable for harsh environmental conditions.
The CABLE6T8PIN is designed to connect an SDI-12 sensor, such as the CS320 or SN500SS, to an Aspen™10 Internet of Things (IoT) Edge Device.
Specifications
- Termination 1
- M8, six-pin, V-coded, stainless steel, IP67-rated
- Termination 2
- M12, eight-pin, A-coded, stainless steel, IP67-rated
- Cable
- 26 AWG conductors with polypropylene insulation, three-twisted pair with drain, Santoprene jacket, rated 30 V, -40° to +80°C
