SC532A
CS I/O Peripheral to RS-232 Interface
SC532A
End of lifeCS I/O Peripheral to RS-232 Interface
Pricing
- Model:
- SC532A
- Item Number:
- 17029
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview
SC532A CS I/O Peripheral to RS-232 Interface

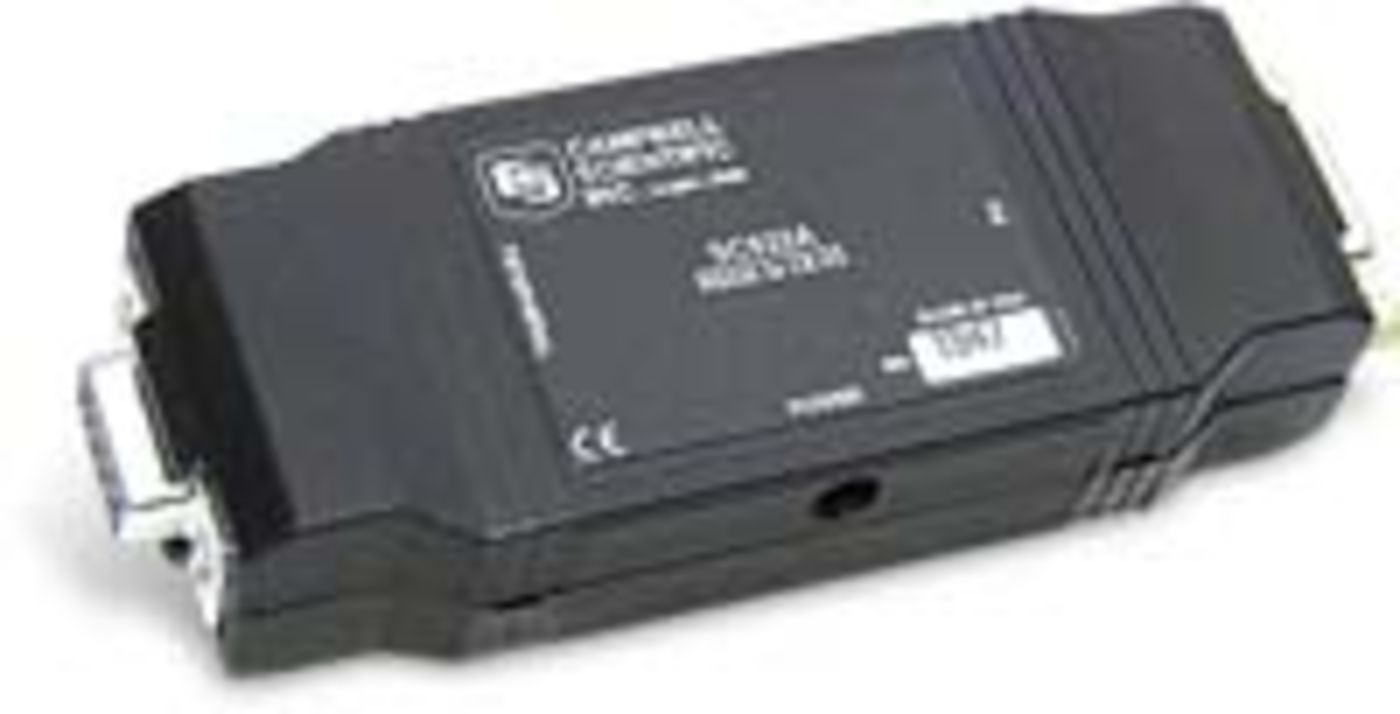

The SC532A interface enables communications between a PC and a Campbell Scientific 9-pin peripheral by providing power and converting the peripheral’s logic levels to the RS-232 levels required by the computer.
Technical Description
The SC532A is required to:
- Connect a PC to the RF500M Radio Modem’s CS I/O port instead of its RS-232 port.
- Change the COM200-series phone modem’s settings
- Communicate with an MD9 network
- Transfer programs and data to a SM4M/SM16M storage module (retired)
The SC532A replaced our SC532.
Benefits
- Enables communications between a PC and some Campbell Scientific 9-pin peripherals
- Provides power and converts the peripheral's logic levels to RS-232 levels
Specifications
- RS-232 Output Levels
- ±10 Vdc ±1 Vdc
- Maximum Output Impedance
- 1100 Ω
- RS-232 Input Levels
- ±30 V
(maximum)
- RS-232 Input Levels
- ≤ 0.8 V
(low threshold)
- RS-232 Input Levels
- ≥ 3.5 V
(high threshold)
- Input Impedance
- 3000 Ω
- 9-pin Inputs
- Low ≤ 1 V
- 9-pin Inputs
- High ≥ 3.5 V
- 9-pin Outputs
- Low ≤ 0.5 V
- 9-pin Outputs
- High ≥ 3.5 V
- Quiescent Current Drain
- 5 mA
(typical)
- Quiescent Current Drain
- 10 mA
(maximum)
- Dimensions
- 11.9 x 4.3 x 2.3 cm
(4.7 x 1.7 x 0.9 in.)
- Weight
- 567 g
(1.3 lb) with ac wall charger
Input Voltage (to POWER jack)
- 5 V Peripherals
- 6 to 17 Vdc
- 12 V Peripherals
- 12 to 17 Vdc
Output Voltages
- On PERIPHERAL Connector Pin 1
- 5 Vdc ±0.075 Vdc
- On PERIPHERAL Connector Pin 8
- 6 to 17 Vdc, depending on ac adapter used
(12 Vdc unregulated using factory AC adapter)
Power Available
- 5 V Peripherals
- 5 Vdc @ 120 mA maximum at 25°C
(derate 12 mA for each AC adapter)
- 5 V Peripherals
- Voltage above 9 Vdc
(derated 1 mA for each degree Celsius above 25°C)
- 12 V Peripherals
- Factory-provided AC adapter supplies an unregulated 12 Vdc @ 1 A.
