RF310B
RF310B
End of lifeConfigurableRF Base Station
Pricing
- Model:
- RF310B
- Item Number:
- RF310B
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview

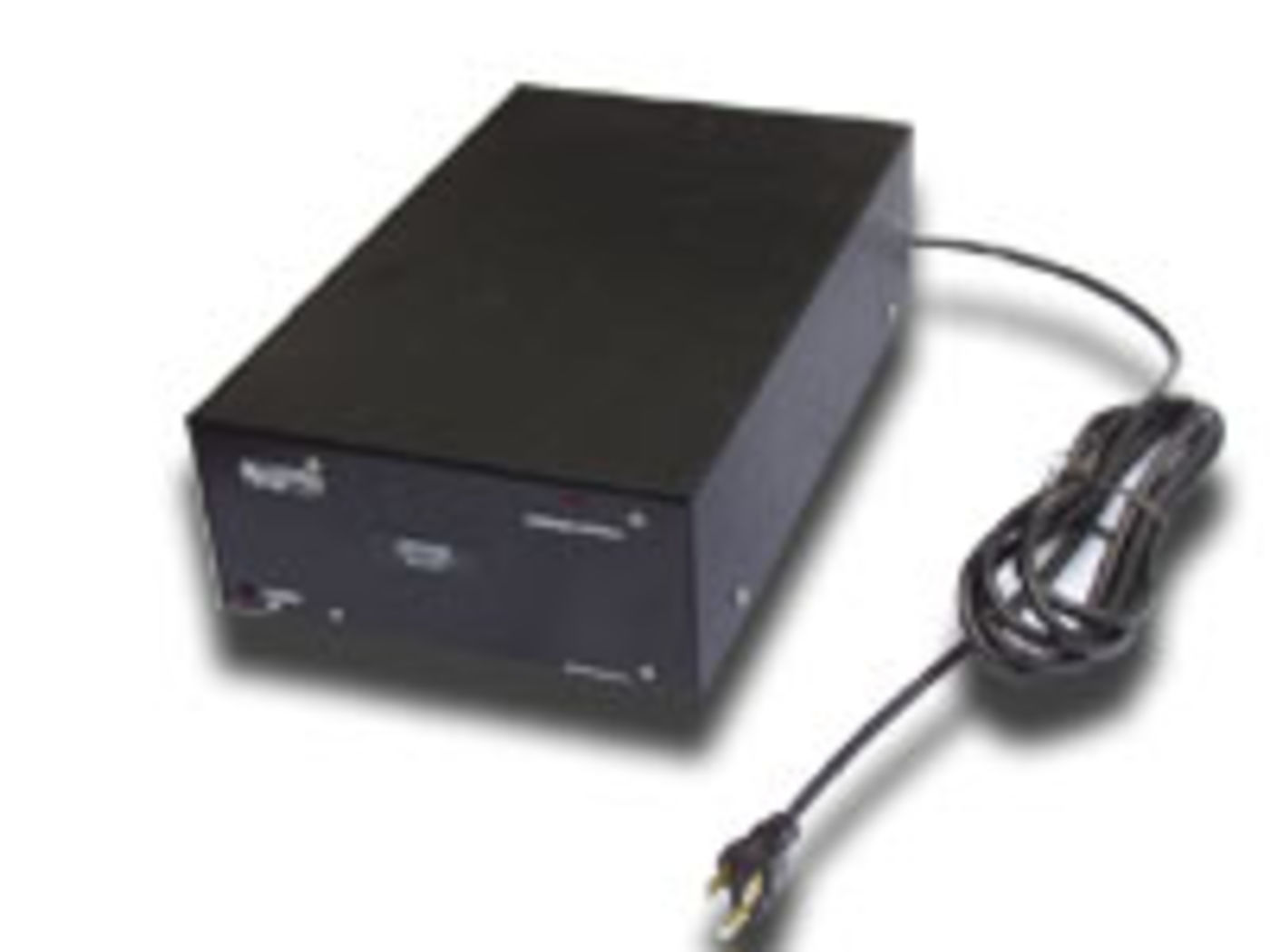

The RF310B is an RF modem used with our RF310, RF312, and RF313 narrow-band radios that usually resides at the computer site and serves as a link between field stations and repeater stations. It includes a 110/220 Vac to 12-Vdc transformer, an RF310M modem, an RS-232 port, internal mounts for an RF310-series transceiver, and a 7026 cable.
Technical Description
The RF310B is used with our RF310, RF312, and RF313 narrow-band radios. It resides at the computer site and serves as a link between field stations and repeater stations. The RF310B consists of a 110/220 Vac to 12-Vdc transformer, an RF310M modem, an RS-232 port, internal mounts for an RF310-series transceiver, and a 7026 cable.
The RF310B consisted of a 110/220 Vac to 12-Vdc transformer, an RF310M modem, an RS-232 port, internal mounts for an RF310-series transceiver, and a 7026 cable. An RF310-series transceiver, LoggerNet or PC400 Support Software, frequency-matched antenna, and antenna cable were purchased separately. Access to ac power was required.
Specifications
- Connector
- 25-pin RS-232 port for connection to PC
- Power
- 110 Vac
- Operating Temperature
- -25° to +50°C
- Dimensions
- 19.8 x 31.8 x 10.2 cm
(7.8 x 12.5 x 4.0 in.)
- Weight
- 2.9 kg
(6.3 lb)
Ships With
(1)- Orderable
