7026
RS-232 Data Cable, DB9 Socket (Female) to DB25 Pin (Male)
7026
OrderableRS-232 Data Cable, DB9 Socket (Female) to DB25 Pin (Male)
Overview

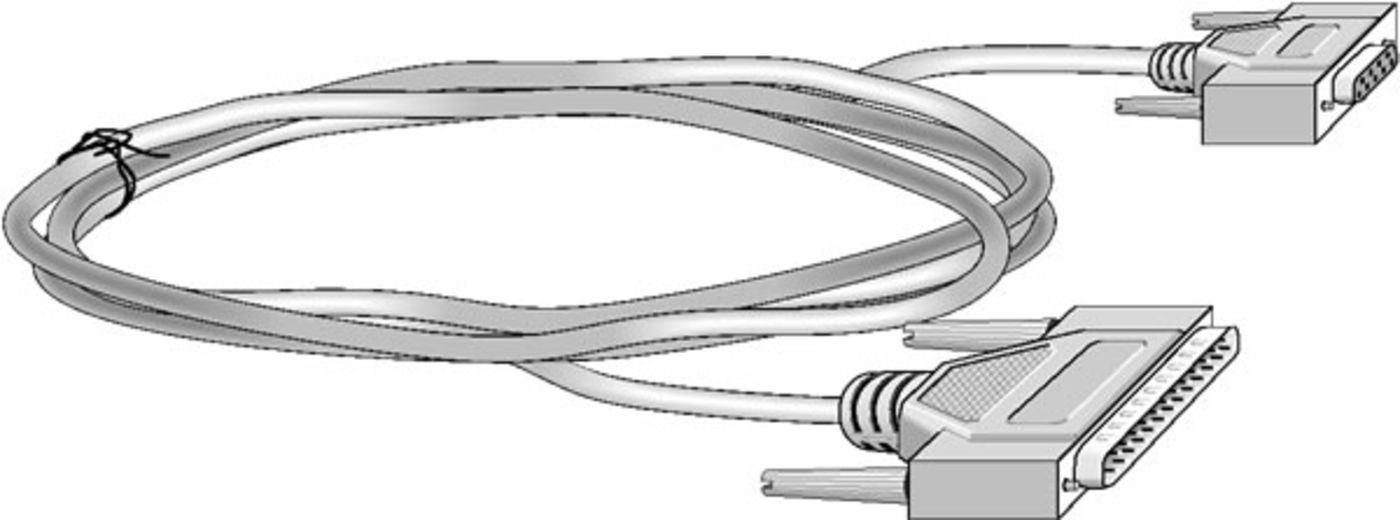

CABLE DATA RS-232 DB9 Female to DB25 Male, 1.8m (6ft)
The 7026 is a molded, jacketed, serial cable. It is typically used to connect Campbell Scientific interfaces with 25-pin serial connectors (e.g., SC32A, SC532A, SC932A) to a computer with a 9-pin serial port.
Technical Description
The 7026 is a molded, jacketed, serial cable that connects a peripheral's 25-pin serial connector to a computer's 9-pin RS-232 port. Campbell Scientific peripherals that have a 25-pin connector include the SC532A and SC932A.
Specifications
- Connectors
- 9-pin socket (female); 25-pin pin (male)
- Length
- 1.8 m
(6 ft)
- Weight
- 136 g
(5 oz)
