RF232A
RF232A
End of lifeConfigurableRF Base Station
Pricing
- Model:
- RF232A
- Item Number:
- RF232A
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview

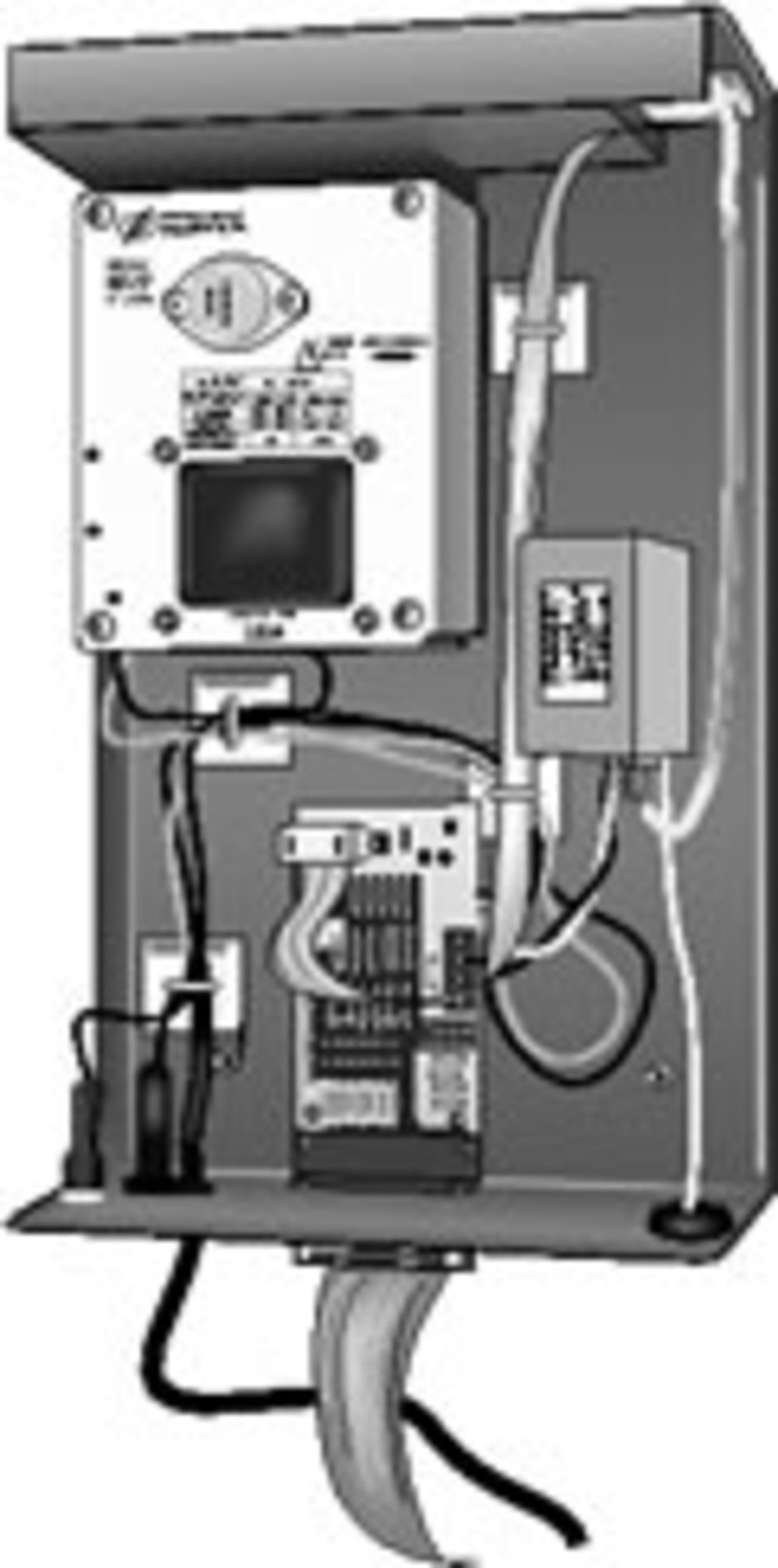

The RF232A serves as a link to field stations and repeaters at the base station for RF300-series radios. The RF232A includes a 110/220 Vac-to-12 Vdc transformer, an RF95A modem, an RS-232 port, internal mounts for an RF300-series radio, and a 7026 cable.
Technical Description
The RF232A is used with our RF300-series radios. It resides at the base station computer, and serves as a link to field stations and repeaters. The RF232A includes a 110/220 Vac-to-12 Vdc transformer, an RF95A modem, an RS-232 port, internal mounts for an RF300-series radio, and a 7026 cable.
An RF300-series radio, antenna cable, and frequency-matched antenna are purchased separately. Access to ac power is required. The RF232A is intended for desktop operation; no mounts are required or supplied.
Specifications
- Connection
- 25-pin RS-232 port
(for connection to PC)
- Operating Temperature
- -25° to +50°C
- Weight
- 2.86 kg
(6.3 lb) without radio
Ships With
(1)- Orderable
