PS84
PS84
OrderableConfigurable84 Ah Power Supply with 14 x 16 in. Enclosure
Pricing
Configuration
Sign in for option pricing- Tripod Mast Mounting w/CH200 Regulator Desiccant/Document Holder-DC
- Tripod Mast Mounting w/CH201 Regulator Desiccant/Document Holder-DC
- CM1xx Leg Mounting w/CH200 Regulator Desiccant/Document Holder-DC
- CM1xx Leg Mounting w/CH201 Regulator Desiccant/Document Holder-DC
- 4-10 Inch Pole Mounting w/CH200 Regulator Desiccant/Document Holder-DC
- 4-10 Inch Pole Mounting w/CH201 Regulator Desiccant/Document Holder-DC
- Tower Mounting w/CH200 Regulator Desiccant/Document Holder-DC
- Tower Mounting w/CH201 Regulator Desiccant/Document Holder-DC
- No Enclosure Mounting w/CH200 Regulator Desiccant/Document Holder-DC
- No Enclosure Mounting w/CH201 Regulator Desiccant/Document Holder-DC
Select a configuration to add to your quote
- Model:
- PS84
- Item Number:
- 45303
- Warranty:
- 1 year
- Lead time:
- 14 days
- Compliance:
- requires charging source
Overview

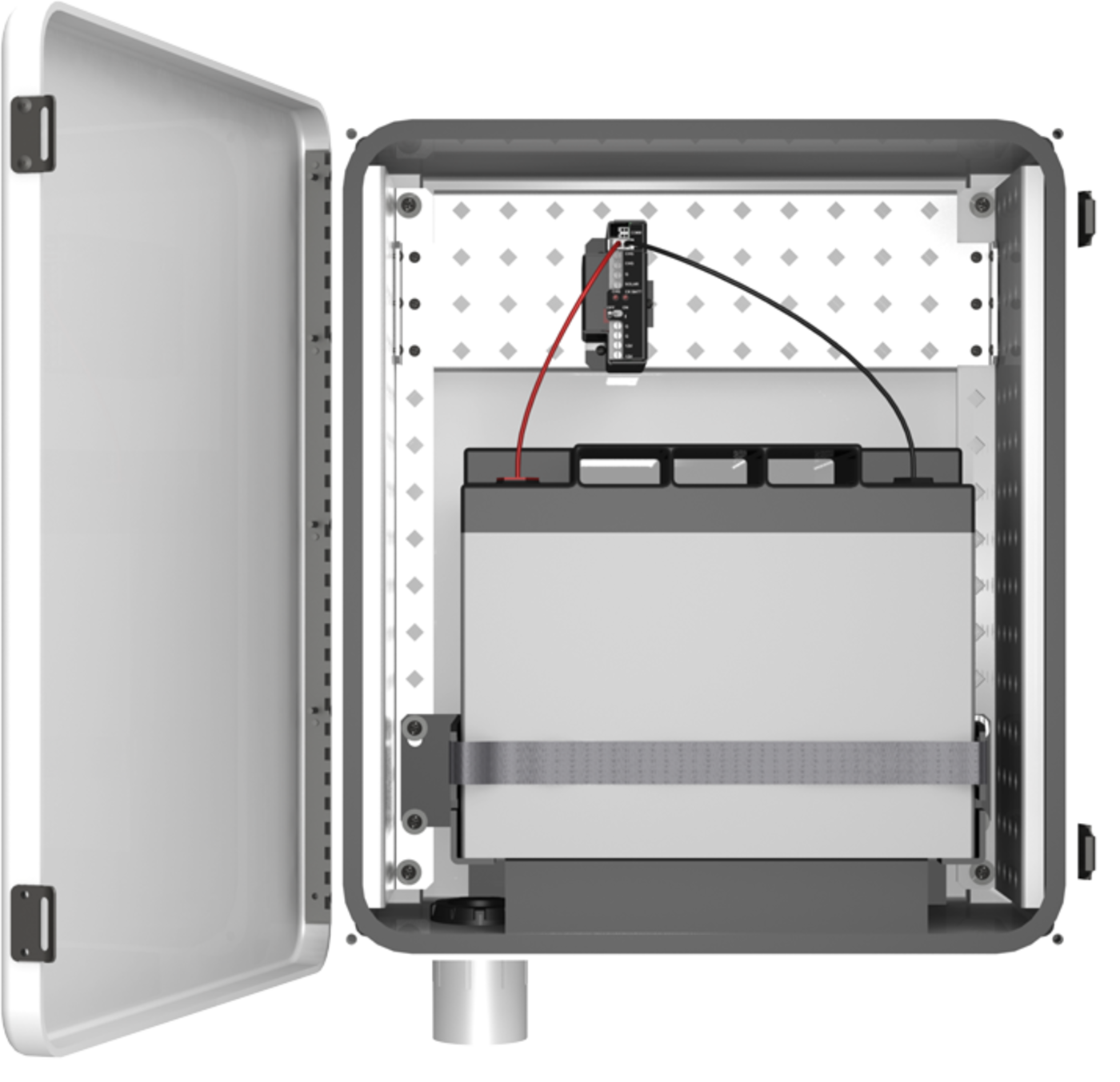

The PS84 can power a system with larger power requirements and is for situations where it is desirable to have the power supply housed in a separate enclosure. It consists of an 84 Ah battery, mounting bracket, and a 14 by 16 in. environmental enclosure.
Technical Description
The PS84 requires either the CH200 Regulator (option -CR) or the SunSaver Regulator (option -SR) to connect the battery to a charging source (typically an unregulated solar panel). The PS84's enclosure can have either one or two cable-entry conduits. Several options are offered for mounting the enclosure to a tripod or tower.
Specifications
- Power Out (+12 Terminals) Voltage
- Unregulated 12 V from battery
- Battery Nominal Rating
- 84 Ah
(when battery discharged at a 24 hr rate)
- Enclosure Rating
- NEMA 4X
(modified for cable entry)
- Temperature Range
- -40° to +71°C
- Dimensions
- 20.3 x 33 x 35.6 cm
(8 x 13 x 14 in.) for battery shipping box
- Dimensions
- 30.5 x 14.5 x 33 cm
(4 x 6 x 13 in.) for bracket
- Dimensions
- 3.18 x 10.16 x 33.02 cm
(1.25 x 4 x 13 in.) for backplate
- Dimensions
- 3.8 x 12.7 x 38.1 cm
(1.5 x 5 x 15 in.) for sideplates
- Dimensions
- 3 x 10 x 32 cm
(1.25 x 4 x 13 in.) for bridgeplate
- Dimensions
- 35.6 x 40.6 x 15 cm
(14 x 16 x 5.9 in.) internal for enclosure
- Dimensions
- 39.4 x 44.5 x 15.7 cm
(15.5 x 17.5 x 6.2 in.) external for enclosure
- Weight
- 25 kg
(55 lb) for battery only
- Weight
- 25.9 kg
(57 lb) for shipping of battery only
- Weight
- 0.9 kg
(2 lb) for bracket
- Weight
- 0.5 kg
(1 lb) for backplate
- Weight
- 0.5 kg
(1 lb) for sideplate 1
- Weight
- 0.5 kg
(1 lb) for sideplate 2
- Weight
- 0.25 kg
(0.5 lb) for bridgeplate
SunSaver Regulator
- Output
- 10 A
(at a nominal 12 Vdc)
- Temperature Compensation
- -28 mV/°C
- Current Drain
- 6 to 10 mA
(continuous)
