Argos Omnidirectional 0 dBd 1/2 Wave Marine Antenna
12022
RetiredArgos Omnidirectional 0 dBd 1/2 Wave Marine Antenna
Pricing
- Model:
- 12022
- Item Number:
- 12022
- Warranty:
- 1 year
- Lead time:
- 7 days
- Compliance:
- requires 21212
Overview
ANT ARGOS 0dBd OMNI Marine 1/2 Wave Dipole Antenna for ST-21 or ST-20

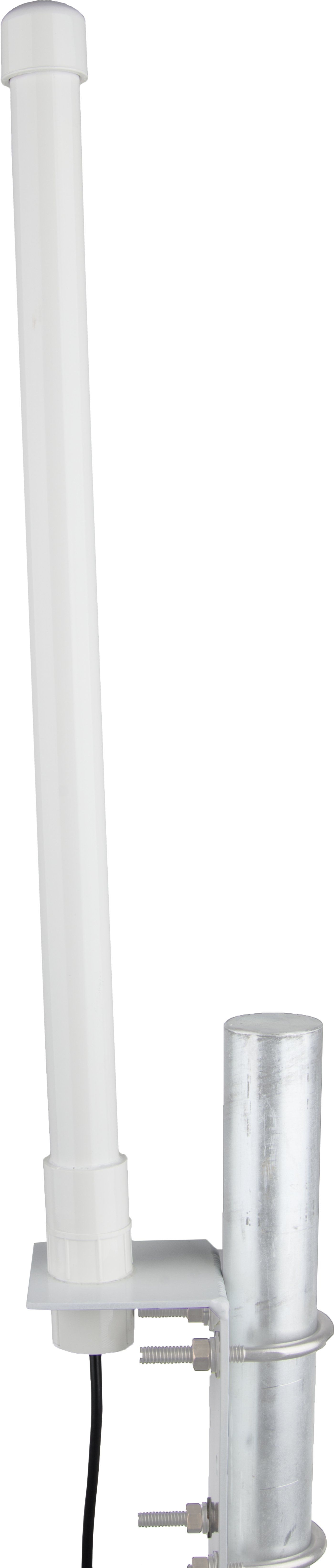

The 12022 is the 401 MHz omnidirectional antenna used with our ST-21 or ST-20 Argos satellite transmitter. It includes a 20 ft cable and a mounting bracket. The mounting bracket attaches to a tripod mast or to a 1.25 to 1.75 in. pipe using 2 in. U-bolts. The antenna is packaged for the marine environment, and it does not require an additional ground plane. The antenna and cable can be deployed outside, but the BNC male connector is not waterproof and must be protected from the elements.
Technical Description
The 12022 is an omnidirectional 401 MHz antenna with a 20 ft coaxial cable pigtail, terminated with a BNC male connector.
Specifications
- Gain
- 0 dBd
- Type
- 1/2 wave dipole marine
- Cable
- RG-58 terminated on one end with BNC male.
Other end is permanently attached to the antenna.
- Dimensions
- 65.4 x 7.6 x 8.9 cm
(25.75 x 3.0 x 3.5 in.)
- Weight
- 612.4 g
(1.35 lb)
